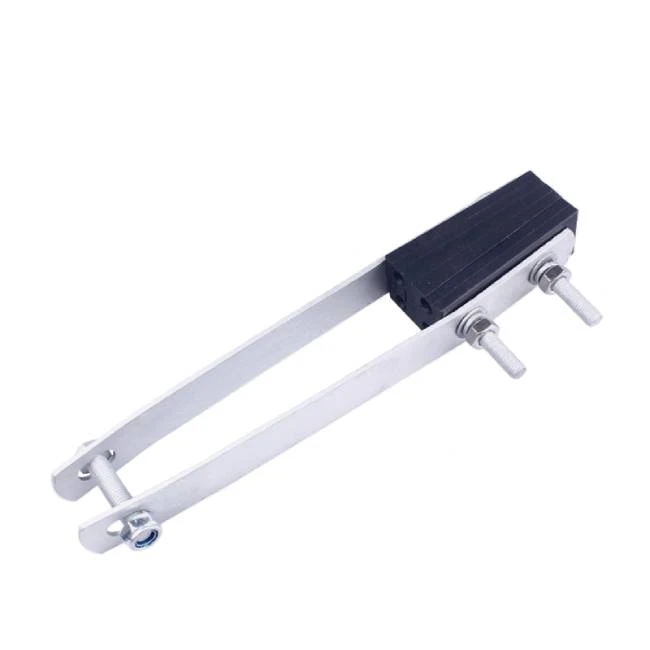

Abc Strain Clamp
NES-B1 Heavy-Duty Dead End Anchor Clamp for 4x16-70 mm² ABC Cable - 20KN Tension Strain Clamp for Overhead Distribution Lines
Product Model： NES-B1 Optical Cable Tension Clamp (NES-B1 abc strain clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProducts Description
NES-B1 Heavy-Duty Dead End Anchor Clamp(NES-B1 abc strain clamp) for 4x16-70 mm² ABC Cable
The NES-B1 abc strain clamp is a substation-grade tensioning utility specifically conceptualized for anchoring, supporting, and routing low-voltage overhead bundle systems. Purpose-built to handle multi-core ABC (Aerial Bundled Cables) ranging from 4x16 mm² to 70 mm² , it delivers high-performance mechanical strain relief for primary power distribution corridors and high-capacity industrial service drops.
Engineered to endure prolonged environmental stress, the NES-B1 integrates a die-cast aluminum alloy structural frame with an ultra-reliable PA6 nylon insulated wedge core . This self-locking layout provides a powerful 20 KN rated tension load holding efficiency without stripping or cutting through cable sheathings, offering utility contractors a reliable, failure-free link for high-tension line spans.
Technical Parameters
| Grid Engineering Criteria | Certified Ratings & Valuations |
| Model Registration | NES-B1 |
| Applicable Conductor Range | 4x16 - 70 mm² (Multi-Core Bundle) |
| Rated Tension Load (RTS) | 20 KN (Heavy-Duty Rating) |
| Material Base | Premium Aluminum Alloy + Insulated PA6 |
| Manufacturing Process | High-Pressure Die-Casting |
| Voltage Application Class | ≤ 1 KV |
| Climate Adaptability Envelope | -40 °C ~ +120 °C |
| Design Asset Lifespan | ≥ 25 Years |
Technical Parameters Description
Heavy-Span 20 KN Tension Threshold : Specially reinforced to withstand a maximum breaking load of 20 KN , making this clamp suitable for larger line sags, long-distance pole spans, and regions with high wind velocity.
Multi-Core Bundle Configuration : Optimized with a wider wedge channel to uniformly securely hold 4x16 to 70 mm² bundle conductors , delivering balanced radial gripping force across all phases simultaneously.
Advanced Die-Casting Metallurgy : The exterior metallic block undergoes industrial Die-Casting processing , aligning the alloy matrix to ensure high tensile rigidity and maximum fatigue limits against permanent mechanical drift.
Dielectric PA6 Core Matrix : The sliding wedges are injection-molded using high-density Nylon PA6 , establishing an absolute dielectric barrier below 1 KV that prevents tracking faults and phase leakage under intense rain.
Rigorous Ambient Thermal Resilience : Certified to function continuously without mechanical degradation from -40 °C up to +120 °C , preventing winter structural embrittlement or tropical sun deformation.
Product Features
🔒 Dynamic Multi-Core Wedging : Employs an automatic sliding wedge logic where higher line drag pulls the internal PA6 wedges deeper into the aluminum shell, ensuring zero line slippage under severe weather loads.
🛡 ️ Structural Die-Cast Armor Cage : The high-strength aluminum casing acts as a protective shield that fully absorbs side impacts, preventing localized point-loads from damaging the core.
⚡ Full Galvanic Separation Safety : Rated for circuits ≤ 1 KV, the non-conductive PA6 wedges insulate the bundled conductors completely, eliminating short circuits and flashover hazards.
🛠 ️ One-Man Rapid Bolt-Free Assembly : Designed for tool-free, intuitive manual operation that cuts down deployment steps, saving power utility contractors valuable labor costs.
⏳ 25+ Years Maintenance-Free Asset : The calculated synergy of corrosion-proof alloy metals and weather-stabilized polymers guarantees an outdoor service life exceeding a quarter-century.
Contact Information
Partner with a globally verified line-hardware manufacturer to scale your power grid infrastructure procurement. We offer direct wholesale pricing, expedited container logistics, and complete engineering CAD drawings.
- Tel: +86 199-0247-9650
- WhatsApp / WeChat: +86 199-0247-9650
- Email: sales@line-hardware.com
- Add: Guangdong, China
- Company: Guangdong Jinkaite Power Fittings Co., Ltd.
Hot Tags: abc strain clamp, China abc strain clamp manufacturers, suppliers, factory
