Adss Clamp

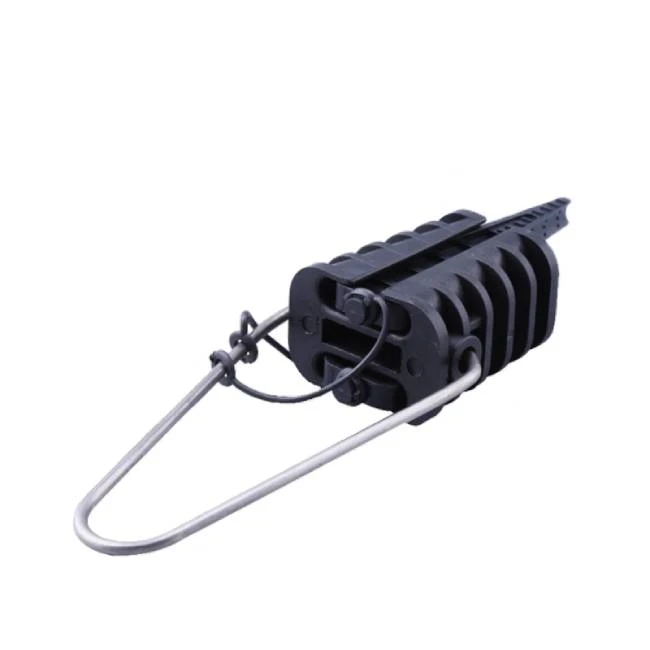

STC 4-Core Insulated Tension Clamp for 4x16-25 mm² ABC Cable - 2.5KN Service Drop Wedge Dead End Clamp with Stainless Steel Bail
Product Model： STC Optical Cable Tension Clamp (STC adss clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction
STC 4-Core Insulated Tension Clamp(STC adss clamp) for 4x16-25 mm² ABC Cable
The STC adss clamp represents a highly specialized, lightweight utility fitting custom-engineered for securing, tightening, and terminating four-core overhead cluster networks. Tailored specifically to accommodate parallel multi-conductor setups from 4×16 mm² to 25 mm² , it provides grid contractors with an ultra-efficient method for anchoring low-voltage residential service drops, secondary distribution lines, and multi-strand telecom cables.
Developed to eliminate network downtime and metallic wear, the STC clamp incorporates an all-polymer Nylon PA6 insulated unibody housing that avoids corrosion and atmospheric rust. Integrated with a heavy-gauge, flexible Stainless Steel wire rope (bail) , this self-locking dead-end assembly sustains a continuous 2.5 KN rated tensile load capacity , ensuring reliable cable anchoring without compressing or skinning the conductor insulation.
Technical Parameters
| Utility Distribution Standard | Certified Project Specification |
| Model Number | STC |
| Applicable Conductor Size | 4×16 - 25 mm² (Four-Core Bundle) |
| Material Composition | Anti-UV Nylon PA6 + Stainless Steel Rope |
| Manufacturing Process | Precision High-Pressure Injection Molding |
| Tensile Load Rating | 2.5 KN |
| Voltage Class | ≤ 1 KV (Low Voltage Network) |
| Operating Temperature | -40 °C ~ +120 °C |
| Service Lifespan | ≥ 25 Years |
Technical Parameters Description
Four-Phase Balanced Gripping : The inner tapered channel is geometrically calibrated to anchor 4×16 to 25 mm² parallel conductors , ensuring identical radial friction is distributed to all four cores simultaneously to prevent line offset.
Monolithic Injection Molding Process : Manufactured using a state-of-the-art precision injection molding process , delivering seamless interior tracks and absolute dimensional tolerances that prevent friction scratches on cable sleeves.
Advanced All-Polymer PA6 Insulation : The entire main body is molded from high-density Nylon PA6 with UV stabilizers , creating an absolute dielectric barrier below 1 KV that prevents phase-to-phase shorts and surface electrical tracking under severe rain storms.
Marine-Grade Stainless Steel Bail : Outfitted with a high-flexibility Stainless Steel wire rope , providing supreme corrosion defense against marine environments while ensuring rapid mounting on standard drive hooks, pole brackets, or wall eyes.
Broad Climatic Endurance Envelope : Fully certified to maintain its complete mechanical load rating and shape integrity under intense outdoor operational temperatures ranging from -40 °C to +120 °C .
Product Features
🔒 Auto-Sinking Conical Locking : Features a smart sliding wedge logic where increased wind or ice pulling force automatically draws the inner blocks deeper into the tapered body, maximizing grip without causing conductor deformation.
⚡ 100% Galvanic Corrosion Free : The all-plastic Nylon PA6 outer chassis contains zero metal parts, making it entirely immune to environmental rust, chemical acid rain, and electrical pitting in industrialized grid sectors.
🛡 ️ Continuous Stress Relief Surface : The wide contact footprint of the interior insulated blocks spreads holding stress uniformly across the line segment, avoiding localized crushing forces and preserving cable life.
🛠 ️ No-Tool Rapid Pole Deployment : Eliminates on-site reliance on heavy compression dies, hydraulic pumps, or wrenches. A single lineman can slip, secure, and anchor the cable by hand in seconds, cutting deployment costs.
⏳ Multi-Decade Low-Maintenance Asset : The calculated integration of weatherproof stainless steel and highly stabilized resins guarantees an active service life of 25+ years , drastically reducing utility asset replacement costs.
