Adss Dead End Clamp
JBG-1 Overhead Anchoring Wedge Clamp (35-70 mm²) - 15KN High-Tensile Dead End Fastener with Stainless Steel Bail
Product Model： JBG-1 Optical Cable Tension Clamp (JBG adss dead end clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction

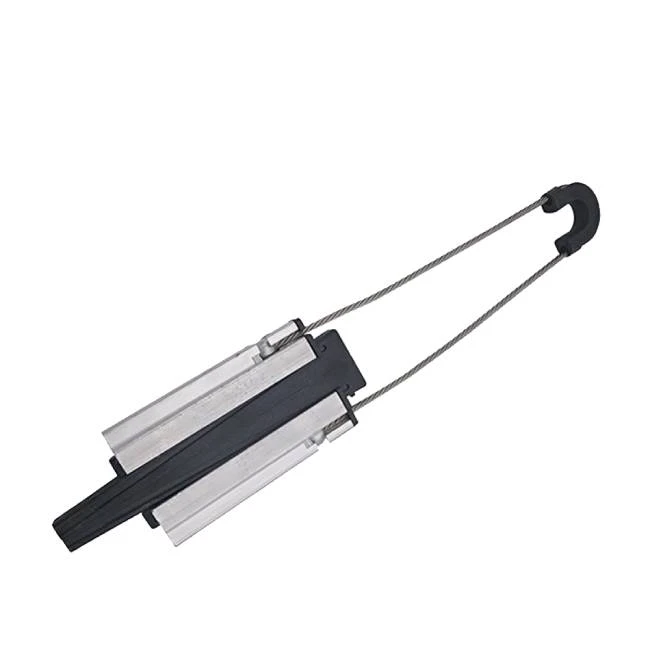

JBG-1 adss dead end clamp (35-70 mm²)
The JBG-1 adss dead end clamp is a commercial-grade infrastructure fitting engineered for defining endpoints, terminating, and tensioning aerial bundle cables (ABC) and self-supporting middle-span fiber optic systems. Purpose-built for linear conductors with cross-sections between 35 mm² and 70 mm² , it serves as a robust tensioning choice for low-voltage power networks and utility drop line deployments.
Constructed to eliminate line management field failures, the JBG-1 pairs a die-cast aluminum alloy shell for absorbing structural displacement with an internal PA6 nylon insulated wedge set that handles line stress without crushing cable jackets. Outfitted with an integrated, heavy-gauge Stainless Steel wire rope (bail) , this complete assembly maintains a safe 15 KN rated tensile load capacity , ensuring reliable overhead distribution during severe weather transitions.
Technical Parameters
| Infrastructure Performance Metric | Certified Technical Value |
| Model Designation | JBG-1 |
| Applicable Conductor Range | 35 – 70 mm² |
| Material Formulation | Aluminum Alloy + PA6 Nylon + Stainless Steel Rope |
| Manufacturing Technology | High-Pressure Precision Die-Casting |
| Rated Tensile Load (RTS) | 15 KN |
| Voltage Application Class | ≤ 1 KV |
| Climatic Temperature Window | -40 °C ~ +120 °C |
| Asset Service Lifecycle | ≥ 25 Years |
Technical Parameters Description
High-Stress 15 KN Load Rating : Structurally upgraded to support a tensile limit of 15 KN , providing extensive physical safety margins for large spans, river-crossing cables, and high-sag distribution layouts.
Mid-Range Section Compatibility : The sliding inner channel is calibrated for conductors from 35 mm² to 70 mm² , applying uniform radial friction to hold single or bundled lines firmly without causing structural buckling.
Advanced Die-Casting Hardness : The outer metal enclosure undergoes an industrial die-casting manufacturing process , ensuring a dense molecular alignment that resists oxidation and physical deformation from wind-induced vibration.
Dielectric PA6 Insulation Block : The non-conductive internal wedges are injection-molded from premium PA6 Nylon , creating an absolute electrical barrier below 1 KV that prevents phase-to-ground flashovers and electrical tracking during heavy rainfall.
Extreme Environmental Tolerance : Fully certified to sustain permanent mechanical pulling forces from -40 °C up to +120 °C without winter material embrittlement or tropical sun cracking.
Product Features
🔒 Linear Auto-Tension Locking : Employs a dynamic wedge-clamping logic where increases in cable pull force guide the internal PA6 blocks deeper into the tapered housing, generating an automated lock that completely prevents cable slippage.
🛡 ️ Impact-Resistant Metallic Shield : The premium die-cast aluminum frame wraps the internal core completely, acting as a structural shield against tool impacts or accidental drops during overhead tower assemblies.
⚡ Certified Phase Isolation Safety : Rated for overhead circuits under 1 KV, the non-conductive PA6 wedges function as an absolute electrical shield, eliminating phase-to-ground leaks and ensuring line security.
🛠 ️ One-Lineman Toolless Installation : Built for simple, manual push-and-lock operations that require no heavy compression sleeves or specialized wrenches, drastically lowering network construction costs.
⏳ Multi-Decade Maintenance-Free Asset : The calculation of non-corrosive aluminum alloys, marine-grade stainless steel, and UV-stabilized resins guarantees an active outdoor service life exceeding a quarter-century.
