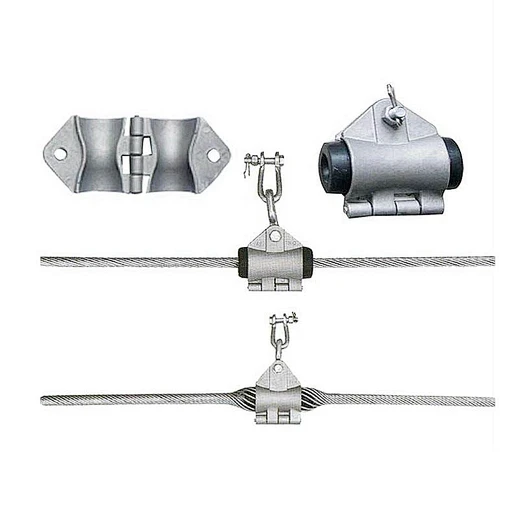

ADSS Suspension Clamp
ADSS Suspension Clamp Assembly for Aerial Fiber Optic Cable | High-Flexibility Preformed Hanging Hardware
Product Model： ADSS suspension clamp
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction
The ADSS suspension clamp assembly is a grid-certified overhead utility hardware system engineered exclusively for securing, cradling, and dampening All-Dielectric Self-Supporting (ADSS) fiber optic lines on straight poles and transmission towers. Perfectly configured for telecommunication backbone grids and medium-to-long span configurations, this premium ADSS suspension clamp ensures consistent and stress-free supporting without micro-bending optical glass fibers.
To safeguard fiber paths against wind galloping, this heavy-duty ADSS suspension clamp kit integrates a die-cast aluminum alloy clamp housing lined with a non-conductive, weather-resistant elastomeric rubber bushing. The complete unit is suspended via an articulated high-flexibility hardware string, which includes a Hot-Dip Galvanized (HDG) U-Shackle and a Twisted Chain Link. This structural multi-axis configuration provides excellent rotational freedom, making this ADSS suspension clamp setup the ideal choice for long-distance cross-country grid valleys.
Technical Parameters
| Grid Engineering Criteria | Standard Specification Ratings |
| Product Category | ADSS Suspension Clamp Set |
| Structural Connectivity | Anchor U-Shackle + Twisted Link + Rubber Insert Cushion |
| Housing Material | High-Tensile Cast Aluminum Alloy (Corrosion Resistant) |
| Link Hardware Material | Carbon Steel with Hot-Dip Galvanized (HDG) Coating |
| Vibration Bushing Material | Weather-Stabilized EPDM / Neoprene Rubber |
| Applicable Cable Diameter | Φ 10.0 – 21.0 mm (Customizable via Armor Rods) |
| Recommended Span Distance | 100m – 400m+ (Based on cable parameters) |
| Max. Vertical Holding Load | ≥ 30 KN |
| Climatic Temperature Range | -40 °C to +120 °C |
| Design Structural Lifespan | ≥ 25 Years |
Technical Parameters Description
Articulated Multi-Axis Linkage Chain : The upper connection of the ADSS suspension clamp features an integrated M16 heavy anchor shackle, delivering multi-directional pivoting freedom to eliminate structural stress from side winds.
Precision Aluminum Extrusion Housing : The main ADSS suspension clamp body features a high-grade aluminum alloy casting process with smooth, flared radius edges, neutralizing line sag tension.
Vibration-Damping Elastomeric Cushion : The internal split-groove jacket inside the ADSS suspension clamp is molded from a high-density EPDM/Neoprene rubber block, specifically calibrated to absorb continuous high-frequency Aeolian vibrations.
Heavy Galvanized Steel Anti-Rust Armor : All carbon steel connecting pins, shackles, and cotter assemblies attached to the ADSS suspension clamp are treated with premium Hot-Dip Galvanizing (HDG) for long-term rust immunity.
Universal Diameter Self-Adaptation : By pairing this ADSS suspension clamp housing with customized outer preformed helical armor rods, the system adapts smoothly to varying ADSS cable outer diameters while uniformly applying gentle radial gripping forces.
Product Features
🔒 Dynamic Micro-Vibration Isolation : The EPDM internal rubber insert within the ADSS suspension clamp acts as a robust energy damper, absorbing mechanical wind oscillations to preserve internal fiber signal paths.
🛡 ️ Point-Stress Elimination Cage : The smooth contours of the aluminum housing distribute vertical sag weight evenly across the suspension point, preventing localized pinching forces from damaging the cable jacket.
⚡ Corona Discharge Prevention Geometry : The smooth, rounded edge finish of the ADSS suspension clamp body minimizes electrical field concentrations, preventing dangerous corona discharge on mixed power-line corridors.
🛠 ️ Component-Matched Rapid Installation : Supplied as a pre-assembled full hardware kit. Linemen can connect the ADSS suspension clamp to tower brackets and snap the clamp shut manually using standard cotter pins.
⏳ 25+ Years Maintenance-Free Service : Combining non-corrosive alloys, hot-dip galvanized steel components, and anti-aging polymers guarantees an outdoor asset life matching that of the telecom tower itself.
Contact & Customization
🛠 ️ OEM & ODM Customization Services
We offer professional, flexible OEM/ODM manufacturing to meet global utility grid and telecom tender specifications for ADSS suspension clamp orders.
Custom via Drawings : Custom mold design based on your CAD drawings or local utility standards.
Full-Assembly Kitting : Tailored ADSS suspension clamp component sizing based on your specific ADSS Cable OD, span, and RTS.
Private Labeling : Custom logo stamping, laser engraving, and certified tensile load test documentation.
Welcome global utility procurement managers, telecom EPC contractors, and brand distributors to request bulk pricing and free technical samples!
