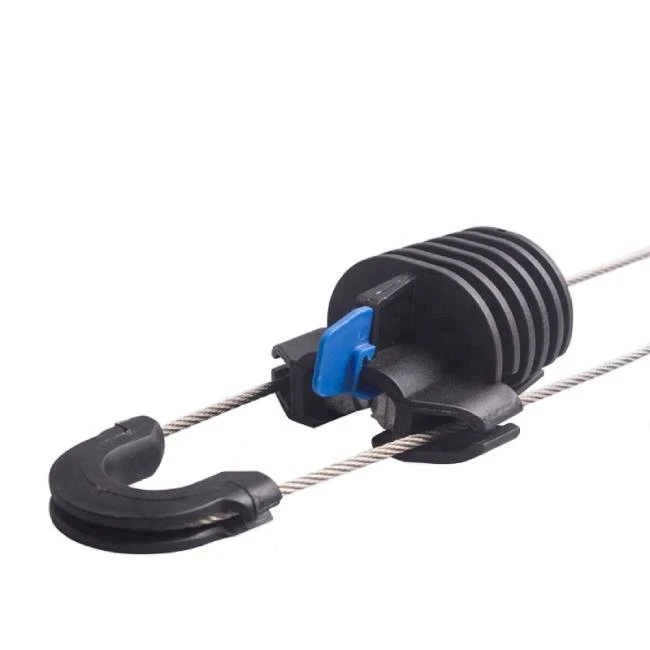

Anchor Clamp For Fiber Optic Cable
Product Model：PA05 Optical Cable Tension Clamp (PA05 anchor clamp for fiber optic cable)
Product Type：Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin：Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity：100 Pieces, OEM and ODM Services Available
Packaging：Export cartons
Lead Time：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards：Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service：Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction
PA05 Anchoring Tension Clamp for Low-Voltage ABC Cable & Fiber Optic Cable
The PA05 Anchoring Tension Clamp (also known as a Wedge Dead End Clamp) is a high-performance, heavy-duty utility fitting specifically designed for securing, tightening, and dead-ending low-voltage overhead lines and fiber optic drop cables. Engineered for conductor sizes ranging from 3.5 mm² to 6 mm² , this clamp is the perfect choice for low-voltage ABC (Aerial Bundled Cables) distribution networks, telecom drop line setups, and FTTH infrastructure rollouts.
Constructed with a premium PA6 Nylon insulated wedge core enclosed in a robust Aluminum Alloy outer shell , and complemented by a flexible Stainless Steel wire rope (bail) , the PA05 delivers an excellent combination of structural strength and reliable dielectric protection. It can sustain up to 3.0 KN of tensile load without stripping or crushing the cable jacket, ensuring secure installation on poles, facades, and buildings under severe environmental conditions.
Technical Parameters
| Item | Specification |
| Model | PA05 |
| Applicable Conductor Range | 3.5 – 6 mm² |
| Material Composition | PA6 Nylon + Aluminum Alloy + Stainless Steel Rope |
| Manufacturing Process | Precision Injection Molding |
| Tensile Load Capacity | 2.5 – 3.0 KN |
| Voltage Rating | ≤ 1 KV |
| Operating Temperature | -40°C to +120°C |
| Expected Service Life | ≥ 25 Years |
Technical Parameters Description
Material Grade & Standard Compliance : The internal gripping wedges are made from specialized UV-stabilized PA6 Nylon to ensure long-term outdoor insulation and resistance to thermal degradation. The shell is crafted from high-tensile Aluminum Alloy to resist structural deformation under stress.
Heavy-Duty Stainless Steel Bail : The flexible loop consists of high-grade Stainless Steel wire rope that offers maximum corrosion defense against salt spray and moisture, easily hooking onto closed or open drive hooks, brackets, and eyelets.
Optimized Injection Molding Process : Manufactured using a state-of-the-art Precision Injection Molding process , guaranteeing flawless dimensional accuracy, seamless fitment, and uniform stress distribution across each unit.
All-Weather Insulation Operational Range : Engineered to maintain its mechanical rating and electrical insulation properties across a wide temperature window of -40°C to +120°C , qualifying it for Arctic or desert project sites.
Product Features
🔒 Self-Tightening Wedge Action : Features a smart conical wedge mechanism that dynamically tightens its grip as line tension increases, entirely eliminating the risk of cable slippage during wind or ice storms.
⚡ 1KV Dielectric Safety Protection : The high-strength PA6 plastic core provides dependable electrical insulation for low-voltage networks below 1KV, preventing phase-to-ground faults and flashovers.
🛠 ️ 100% Tool-Free & Rapid Installation : Eliminates the need for hydraulic press tools or heavy impact wrenches. Linemen can install and lock the clamp manually in seconds, significantly saving on-site labor costs.
🚫 Anti-Abrasion Cable Protection : The smooth interior surface of the insulated wedges wraps around the line uniformly, avoiding dangerous point-load concentration and protecting the internal optical fibers or aluminum strands.
⏳ 25+ Years Certified Service Life : Built with anti-aging, non-corrosive materials to deliver a zero-maintenance product lifecycle that safely matches or exceeds the active lifespan of the power grid or telecom line itself.
