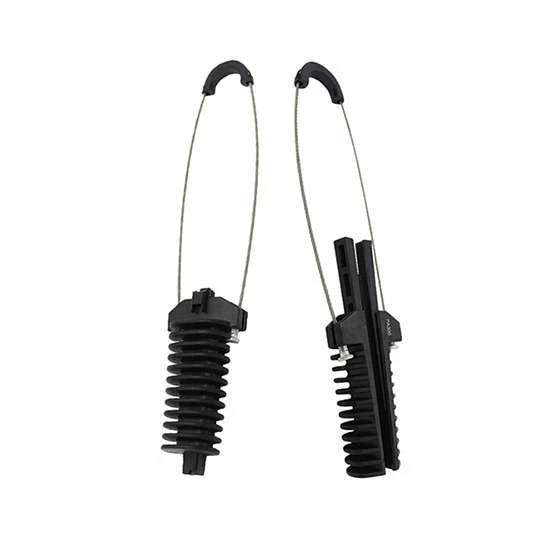

Electrical Distribution Anchor Clamp
Product Model: PA300
Place of Origin: Guangdong, China
Minimum Order Quantity: 100 units
Packaging: Wooden crate/Carton
Lead Time: 15–30 days
Shipping Method: Container
Standards: Complies with GB/T 2314, GB/T 2315, DL/T 764, and DL/T 284.
Sample Service: Provided free of charge to distributors
Category Plastic Tension Clamp
Get a QuoteProduct Introduction
PA300 Aluminum Alloy Electrical Distribution Anchor Clamp for 1KV Low Voltage Overhead Insulated Cables
As a leading overhead line fittings supplier , Jinkaite offers the PA300 electrical distribution anchor clamp , professionally designed for terminal anchoring of 1KV low-voltage small-gauge overhead insulated conductors. We support custom power line hardware solutions to meet international utility standards.
It is suitable for tensioning and securing service drop wires and small street lighting branch lines. Featuring an aluminum alloy clamping structure paired with a plastic insulating housing, it allows for easy installation without specialized tools; the self-tightening tension mechanism ensures a secure hold that does not easily loosen. It is a dedicated tension anchoring clamp for small-cross-section low-voltage cables.
Technical Parameters
Our PA300 anchor clamp is designed and tested to comply with NFC 33-042 standard or equivalent IEC low voltage cable accessories requirements.
| Model | Applicable wire gauge (mm ²) | tensile load(KN) | voltage level |
| PA300 | 4~8 | 3.5 | 1KV |
| PA500 | 4.5-9 | 6 | 1KV |
| PA600 | 8~15 | 10 | 1KV |
| PA1500 | 10-50 | 11 | 1KV |
| PA2000 | 35-70 | 15 | 1KV |
Detailed technical parameters
Electrical Distribution Anchor Clamp
Model: PA300
Applicable Cable Cross-section: 4–8 mm²; Tensile Load: 3.5 kN; Voltage Rating: 1 kV
Product Features
Electrical Distribution Anchor Clamp
Material: Modified weather-resistant PA66 housing paired with a stainless steel tensioning bail; structural strength meets a 3.5 kN tensile load requirement; designed for clamping and protecting small-gauge wires (4–8 mm²).
Manufacturing: One-piece injection-molded housing with an internal profile matched to the outer diameter of small-cross-section conductors; self-locking structure allows for assembly and securing by hand.
Corrosion Resistance: Metal components undergo anti-rust passivation treatment; the plastic housing is resistant to UV aging; the sealed clamping structure prevents moisture from corroding the contact areas.
Standards: Suitable for 1 kV low-voltage distribution lines; complies with industry manufacturing standards for electric power fittings, including GB/T2314, GB/T2315, DL/T764, and DL/T284.
Contact Us
Request samples / customized solutions / project quotations
Email: sales@line-hardware.com
Business Contact: +86 199-0247-9650 (Same number for WhatsApp)
Click "Get a Quote" for one-on-one technical support and project consultation.
