Fiber Suspension Clamp
XGT Series Heavy-Duty fiber Suspension Clamp with Rubber Cushion - 40KN-130KN High Breaking Load Utility Clamp for Overhead Lines & OPGW
Product Model： XGT Optical Cable Suspension Clamp (XGT fiber suspension clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction

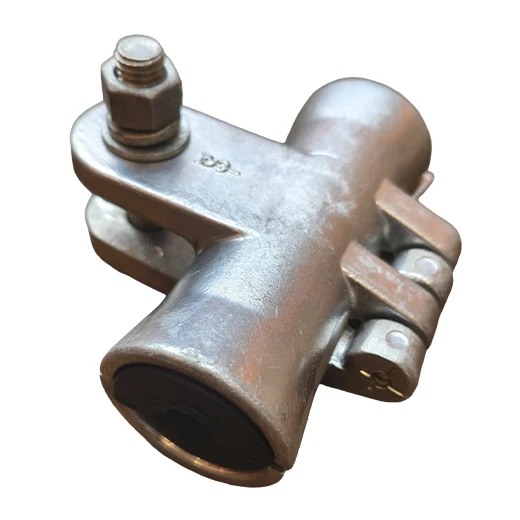

XGT Series Heavy-Duty Suspension Clamp with Rubber Cushion
The XGT Series fiber Suspension Clamp is an elite grade of high-voltage transmission hardware designed to suspend, cradle, and protect overhead phase conductors and optical ground wires ( OPGW ) on straight towers. Available in two structurally optimized technical designs ( Drawing 1 featuring a wide-flared long body, and Drawing 2 built as a compact chassis with dual-protruding elastomeric buffers), this series safely accommodates extreme vertical loads ranging from 40 KN to 130 KN .
Engineered to eliminate high-vibration field wear and acoustic resonance, the XGT assembly clamps the conductor securely using an integrated, heavy-duty Aluminum Alloy housing lined with a non-conductive, weather-resistant elastomeric lining block . Suspended by high-tensile hot-dip galvanized steel hardware (M16/M18 structural bolts), this line-hardware choice prevents mechanical fatigue and localized point-load concentrations across large cross-country grid spans.
Technical Parameters
| Type | Drawing NO. | Bolt Size (d) | Shell Length (L, mm) | Suspension Height (H, mm) | Cleavis Gap (C, mm) | Net Weight (kg) | Vertical Devastating Load (KN) |
| XGT-40 | Drawing 1 | M16 | 150 | 62 | 20 | 1.17 | 40 KN |
| XGT-95 | Drawing 2 | M16 | 95 | 55 | 19 | 1.28 | 70 KN |
| XGT-114 | Drawing 2 | M16 | 114 | 60 | 22 | 1.70 | 100 KN |
| XGT-125 | Drawing 2 | M16 | 125 | 64 | 22 | 1.97 | 120 KN |
| XGT-135 | Drawing 2 | M18 | 135 | 68 | 30 | 2.60 | 130 KN |
Technical Parameters Description
Dynamic High-Load Utility Gradient : Fully scaled from 40 KN up to an ultimate 130 KN vertical load rating , providing extensive mechanical backup margins for heavy snow load corridors, large river-crossings, and transmission networks.
Dual-Profile Architectural Geometry : Offers Drawing 1 (Long body, 150mm) for wide-angle swing clearance, and Drawing 2 (95mm to 135mm variants) featuring integrated outer elastomer cushions for maximum shock suppression on heavy conductors.
Substation-Grade Pin and Bolt Sizing : Outfitted with premium M16 and M18 steel cotter-bolts (as per model rating), achieving high horizontal shear resistance and preventing looseness caused by high wind galloping.
Flared Edge Stress Release : The contour lines of the interior clamping beds are explicitly radiused and rounded to smoothly distribute cable sag weight, completely stopping bending stress fatigue on aluminum strands.
Anti-Corrosive Metallurgy Matrix : Constructed from weather-hardened aluminum alloy blocks and hot-dip galvanized (HDG) links , yielding comprehensive rust immunity in harsh coastal, industrial, and highly acidic rain sectors.
Product Features
🔒 Harmonic Vibration Suppression : The internal resilient cushion block acts as a heavy-duty energy damper, absorbing Aeolian vibration and micro-oscillation waves to guard the internal fiber cores or conductor wires from breakage.
🛡 ️ Heavy Impact Armor Cage : The high-density aluminum alloy chassis functions as an external crush shield, distributing clamping pressures radially and eliminating high localized pinch points.
⚡ Corona Discharge Prevention : Features a highly rounded structural contour with hidden cotter pins, reducing electrical field stress concentration and surface corona discharge on transmission grids under 1KV and above.
🛠 ️ Single-Axis Bolt Attachment : The streamlined link hardware setup requires no hydraulic equipment or heavy pressing tools. Linemen can accomplish standard tower-attachment anchoring quickly using common torque wrenches.
⏳ 25+ Years Maintenance-Free Lifecycle : Utilizing high-grade anti-aging EPDM/neoprene compounds combined with marine-grade structural metals ensures a continuous outdoor service lifespan matching that of the main utility tower.
