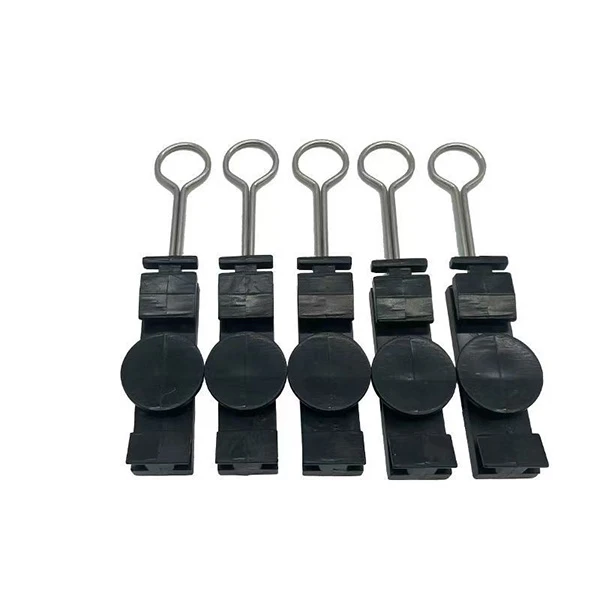

Plastic Drop Wire Clamp
Plastic Drop Wire Clamp for Aerial Fiber Optic Cable - Heavy Duty FTTH Drop Wire Fastener with Stainless Steel Tail
Product Model：Plastic Drop Wire Clamp
Product Type：Fiber Optic cable accessories for Overhead Cables and FTTH Drop Cables
Place of Origin：Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity：100 Pieces, OEM and ODM Services Available
Packaging：Export cartons
Lead Time：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards：Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service：Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction
The Plastic Drop Wire Clamp is a high-reliability, lightweight telecommunication line fitting engineered exclusively for terminating, anchor-fixing, and tensioning flat drop wires or round fiber optic cables in overhead distribution webs. Architected as a vital deployment component for the mass subscriber connection of modern FTTH (Fiber to the Home) rollouts and CATV service networks, this high-performance Plastic Drop Wire Clamp offers network installation crews a cost-efficient, non-slip dead-end anchoring mechanism without requiring secondary hydraulic compression tooling.
Constructed via high-pressure engineered polymer formulation to prevent atmospheric oxidation and rust, this commercial-grade Plastic Drop Wire Clamp utilizes an advanced conical friction-tightening layout. The unibody chassis incorporates an open flat chamber equipped with an integrated round sliding wedge shim and an automatic locking guide. Suspended by a marine-grade, high-flexibility Stainless Steel wire loop (bail) , the Plastic Drop Wire Clamp snaps onto universal pole brackets, drive hooks, or outer facade eyelets in seconds, supplying communication lines with a safe, zero-attenuation transmission corridor.
Technical Parameters
| Grid Structural Infrastructure Metrics | Certified Standard Specifications |
| Target Keyword Mapping | Plastic Drop Wire Clamp / Fiber Fastener |
| Primary Project Application | Last-Mile FTTH Subscriber Drop Deployments |
| Material Shell & Wedge | UV-Stabilized, Weatherproof Engineered Polymer (Nylon/ABS) |
| Bail Ring Formulation | Heavy-Gauge Marine-Grade Stainless Steel Wire Hook |
| Cable Compatibility Profile | Accommodates 1-4 Core Flat Drop Cables / Φ 2mm-4mm Round Lines |
| Rated Breaking Load (RTS) | ≥ 1.5 KN (Optimized Subscriber Tensile Threshold) |
| Voltage Application Class | 100% Galvanic Separation & Dielectric Isolation |
| Climatic Temperature Range | -40 °C to +80 °C All-Weather Endurance |
| Active Operational Lifespan | ≥ 15 Years Zero-Maintenance |
Technical Parameters Description
Conical Shim Friction Matrix : The integrated central circular wedge of this Plastic Drop Wire Clamp is calibrated with multi-groove anti-slip paths, maximizing holding friction to secure FTTH drop lines during heavy wind loads.
Stainless Steel Bail Eyelet Geometry : Outfitted with a highly resilient steel loop at the rear of the Plastic Drop Wire Clamp , providing universal hooking clearance onto closed wall brackets or open J-hooks without rusting.
Advanced Anti-UV Polymeric Housing : Molded from a specialized non-conductive weather-proof polymer matrix, the main frame of the Plastic Drop Wire Clamp acts as an absolute insulation shield below 1KV, fully eliminating electrical tracking.
Self-Adjusting Tapered Compression : Designed with a tension-activated mechanical slider where increasing cable pull guide the wedge shim smoother into the body tracks of the Plastic Drop Wire Clamp , blocking line creeping.
Zero-Damage Curved Grip Path : The wide interior seating channel avoids sharp mechanical corners, distributing radial gripping forces uniformly to protect delicate glass fibers from micro-bending attenuation.
Product Features
🔒 Tension-Activated Mechanical Grip : Natural environmental wind oscillations force the internal slider deeper into the tapered tracks of the Plastic Drop Wire Clamp , maximizing holding performance automatically.
🛡 ️ 100% Galvanic Corrosion Free : The all-plastic polymer chassis contains zero outer metal casing components, making the Plastic Drop Wire Clamp entirely immune to acid rain, industrial chemical smog, and coastal salt rust.
⚡ Total Core Structural Safety : The wide polymer contact area spreads side clamping stress smoothly across the line segment, avoiding single point-load pressure to guarantee error-free FTTH network connectivity.
🛠 ️ One-Lineman Toolless Manual Assembly : Eliminates on-site field reliance on heavy hydraulic compressors, impact dies, or socket wrenches. Technicians can wrap and snap the Plastic Drop Wire Clamp manually in seconds.
⏳ Lightweight Cost-Effective Logistics : The ultra-lightweight polymer layout shrinks per-box shipping weight, helping international B2B distributors slash maritime shipping freight fees and optimize warehouse stock footprints.
Contact & Customization
🛠 ️ OEM/ODM Customization Services
We provide flexible OEM/ODM manufacturing to meet international grid and telecom project requirements for Plastic Drop Wire Clamp orders. We support custom production from technical blueprints (CAD drawings) or physical samples.
