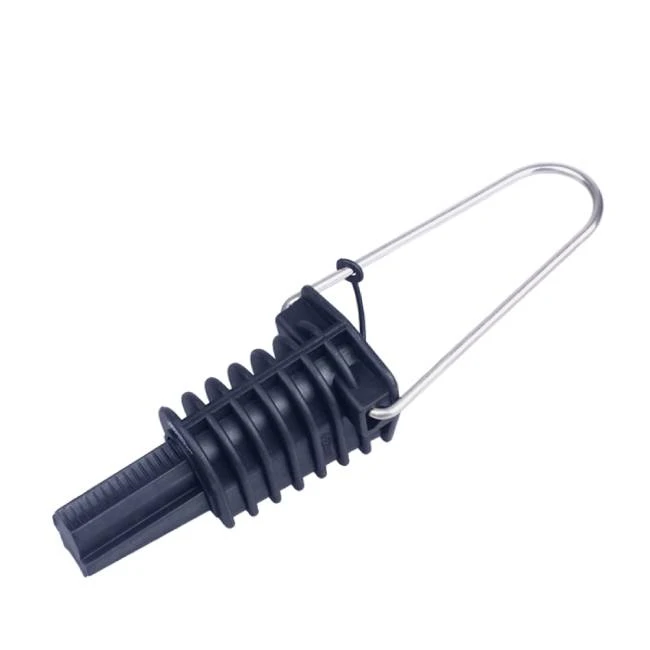

Strain Wedge Clamp
DCR-2 Universal Service Drop Clamp for 6-70 mm² Conductor | 2.5KN Insulated Wedge Dead End Clamp with Stainless Steel Bail
Product Model： DCR Optical Cable Tension Clamp (DCR strain wedge clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction
DCR-2 Universal Service Drop Clamp (DCR strain wedge clamp )for 6-70 mm² Conductor
The DCR-2 strain wedge clamp is a highly versatile, professional-grade anchoring fitting custom-developed for securing, dead-ending, and tensioning overhead network distributions. Geometrically optimized to accommodate a wide linear span of conductor cross-sections from 6 mm² to 70 mm² , it delivers infrastructure contractors a highly adaptive method for managing low-voltage residential service lines, street lighting circuits, and self-supporting telecom cables.
Engineered to eradicate galvanic oxidation and line management field failures, the DCR-2 clamp incorporates an integrated PA6 Nylon insulated core and body that completely avoids atmospheric rust. Suspended by a heavy-gauge, flexible Stainless Steel wire rope (bail) , this self-adjusting dead-end assembly sustains a secure 2.5 KN rated tensile load capacity , ensuring reliable overhead distribution without scraping, crimping, or compromising the wire insulation sleeves.
Technical Parameters
| Grid Engineering Specification | Certified Technical Value |
| Model Code | DCR-2 |
| Applicable Conductor Size | 6 – 70 mm² (Wide-Range Adaptability) |
| Material Formulation | Premium PA6 Nylon + Stainless Steel Wire Rope |
| Manufacturing Process | High-Pressure Precision Injection Molding |
| Rated Tensile Load | 2.5 KN |
| Voltage Class | ≤ 1 KV (Low Voltage Applications) |
| Operating Temperature Range | -40 °C ~ +120 °C |
| Design Asset Lifespan | ≥ 25 Years |
Technical Parameters Description
Wide-Range Cross-Section Fit : The internal tapered channel is engineered with an advanced broad-groove configuration, permitting a single clamp model to securely lock conductors from 6 mm² up to 70 mm² , drastically reducing inventory stock complexity for contractors.
Monolithic Injection Molding Process : Manufactured using a state-of-the-art precision injection molding process , delivering seamless interior tracks and flawless wedge alignment that prevent physical friction damage on cable coatings.
Advanced All-Polymer Insulation Shield : Molded from a high-density PA6 Nylon matrix , the clamp body serves as an absolute dielectric safety barrier below 1 KV, eliminating phase-to-ground flashovers and electrical tracking during prolonged monsoons.
Marine-Grade Stainless Steel Bail : Outfitted with a high-flexibility Stainless Steel wire rope , providing supreme corrosion defense against coastal air while ensuring rapid mounting on standard closed/open drive hooks or pole brackets.
Broad Environmental Endurance Envelope : Thoroughly lab-tested to hold its complete mechanical load capacity without structural cracking under intense outdoor ambient temperatures ranging from -40 °C to +120 °C .
Product Features
🔒 Dynamic Conical Wedge Self-Locking : Utilizes an automated wedge-action design where natural cable pulling forces slide the internal blocks deeper into the tapered sleeve, maximizing holding efficiency without creating point-load pressure.
⚡ 100% Galvanic Corrosion Proof : The all-plastic PA6 body contains zero metallic outer shell parts, making it entirely immune to environmental rust, chemical acid rain, and electrical pitting in industrialized industrial sectors.
🛡 ️ Continuous Radial Stress Relief : The wide and smooth footprint of the interior insulated blocks spreads clamping force evenly across the wire segment, avoiding localized crushing forces and preserving internal cable strands.
🛠 ️ No-Tool Rapid Pole Deployment : Eliminates on-site reliance on heavy compression dies, hydraulic pumps, or specialized wrenches. A single lineman can slip, wrap, and lock the wire manually in seconds, cutting deployment costs.
⏳ Multi-Decade Low-Maintenance Asset : The calculated integration of weatherproof stainless steel and highly stabilized resins guarantees an active service life of 25+ years , helping utilities drastically lower long-term asset replacement overhead.
