Tension Anchoring Clamp
Product Model： PAM08 Optical Cable Tension Clamp (PAM08 tension anchoring clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction

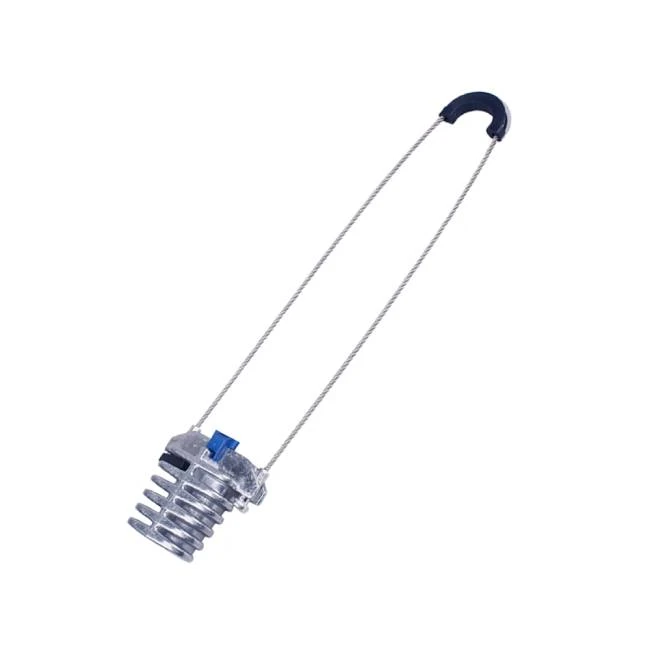

PAM08 tension anchoring clamp
The PAM08 tension anchoring clamp represents the next generation of overhead line hardware, engineered for modern electrical distribution grids and fiber optic drop systems. Designed as a universal termination and anchoring utility, it is engineered to handle insulated conductors and aerial cables up to 7 mm² .
Unlike conventional plastic-body clamps, the PAM08 utilizes a dual-material protection matrix: a precision Die-Cast Aluminum Alloy outer cage that absorbs heavy structural pull, and an internal twin-wedge core made of Nylon PA6 that provides continuous electrical isolation. Coupled with a high-tensile Stainless Steel wire rope (bail) , this mechanical assembly guarantees a strong 4 KN load holding capacity , making it the ideal choice for utilities seeking a zero-failure deployment in coastal, sub-zero, or high-vibration power corridors.
Technical Parameters
| Item | Specification |
| Model | PAM08 |
| Applicable Conductor | ≤ 7 mm² |
| Material | Aluminum Alloy + Nylon PA6 + Stainless Steel Rope |
| Manufacturing Process | Die Casting |
| Tensile Load | 4 KN |
| Voltage Rating | ≤ 1 KV |
| Operating Temperature | -40 °C ~ +120 °C |
| Service Life | ≥ 25 years |
Technical Parameters Description
Advanced Die-Casting Metallurgy : The metal body is produced using a premium die-casting mold process , which alignment-checks the molecular density of the aluminum alloy to maximize impact resistance and structural resilience under continuous wind loading.
Industrial-Grade Polymer Core : The internal wedges are injection-molded using Nylon PA6 enhanced with UV-inhibitors , preserving its mechanical toughness and preventing embrittlement or tracking faults under intense solar exposure.
Upgraded 4 KN Tensile Threshold : Re-engineered to support up to 4 KN of mechanical stress , this clamp safely expands your grid span lengths and easily withstands heavy line sag caused by ice accumulation.
Marine-Grade Stainless Steel Bail : The flexible link loop features a multi-strand stainless steel wire rope that provides universal attachment compatibility with pole brackets, cross-arms, and wall hooks without rusting.
Thermal Endurance Envelope : Fully certified to operate continuously within a rigorous temperature range of -40 °C to +120 °C , ensuring failure-free electrical performance from frozen networks to hot desert environments.
Product Features
🔒 Conical Non-Slip Locking : Utilizes a dynamic wedge-clamping mechanism where higher wire tension causes the wedges to seat deeper, delivering a slip-free hold while eliminating the risk of core slippage.
🛡 ️ Shock-Absorbing Metal Shell : The rugged die-cast aluminum housing acts as a protective shield against accidental structural impacts and tool drops during high-altitude installation.
⚡ Dual-Block Dielectric Barrier : High-performance Nylon PA66 wedges act as an absolute electrical shield for overhead systems under 1KV, minimizing voltage leakage and flashover risks.
🛠 ️ One-Man Toolless Deployment : Designed for rapid field assembly with no specialized compression sleeves or wrenches needed. Linemen can snap, tension, and anchor the cable by hand, boosting installation speed.
⏳ 25-Year Asset Lifecycle : Built with high-grade anti-corrosive alloys and stable polymers, this clamp offers a multi-decade operational lifespan, helping utilities drastically lower their long-term maintenance overhead.
