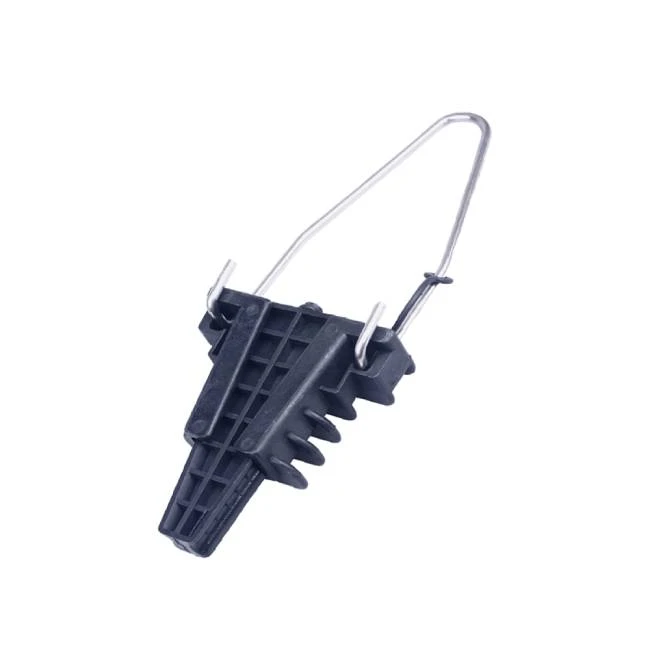

Tension Clamp For Fiber Cable
STB Insulated Wedge Tension Clamp for 2x16-25 mm² ABC Cable - 2.5KN Service Drop Anchor Clamp with Stainless Steel Bail
Product Model： STB Optical Cable Tension Clamp (STB Tension Clamp for Fiber Cable)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProduct Introduction
STB Tension Clamp for Fiber Cable for 2x16-25 mm² ABC Cable
The STB Tension Clamp for Fiber Cable is a high-reliability overhead network fitting developed exclusively for terminating, anchor-fixing, and tensioning two-core service drop wires and aerial bundled cables (ABC). Tailored precisely to support dual-conductor configurations from 2×16 mm² to 25 mm² , it provides an efficient and secure termination method for low-voltage residential connections, street lighting power links, and telecom drop wire lines.
Constructed to ensure safe and continuous grid operations, the STB clamp features an all-plastic PA6 Nylon insulated housing that eliminates chemical corrosion risk and galvanic interaction. Outfitted with an integrated, heavy-gauge Stainless Steel wire rope (bail) , this mechanical fastener maintains a stable 2.5 KN rated tensile load capacity , ensuring flawless service line routing without pinching or stripping the fragile outer cable sheaths.
Technical Parameters
| Grid Connectivity Attribute | Certified Testing Specification |
| Model Code | STB |
| Applicable Conductor Size | 2×16 - 25 mm² (Dual-Core Bundle) |
| Material Base | UV-Stabilized PA6 Nylon + Stainless Steel Rope |
| Manufacturing Process | Precision High-Pressure Injection Molding |
| Tensile Load Capacity | 2.5 KN |
| Voltage Insulation Rating | ≤ 1 KV |
| Operating Temperature Range | -40 °C ~ +120 °C |
| Design Active Lifespan | ≥ 25 Years |
Technical Parameters Description
Dedicated Dual-Core Alignment : The internal tapered channel is engineered specifically to grip 2×16 to 25 mm² parallel conductors , ensuring identical radial pressure is exerted on both cores to eliminate line slippage.
Precision High-Pressure Injection : The entire structural body is manufactured via a state-of-the-art injection molding process , delivering precise tolerances, flawless wedge alignment, and smooth interior paths that prevent abrasion.
Advanced Monolithic PA6 Insulation : Molded from a premium PA6 Nylon matrix , the clamp body serves as an absolute non-conductive safety barrier below 1 KV, completely eliminating the risk of tracking faults or phase leaks during heavy monsoons.
Marine-Grade Stainless Steel Loop : Features a highly flexible Stainless Steel wire rope that resists salt spray degradation and mechanical wear, allowing swift mounting onto universal eyelets, drive hooks, or pole brackets.
Rigorous Thermal Operation Limits : Extensively lab-tested to hold its full mechanical load without breaking or deforming within a wide climate window of -40 °C to +120 °C .
Product Features
🔒 Conical Self-Locking Wedges : Designed with an automatic wedging mechanism where increasing wire tension pulls the internal blocks deeper into the tapered sleeve, creating a tight manual lock without cable damage.
⚡ 100% Galvanic Corrosion Proof : The all-plastic PA6 body contains zero metal casing parts, making it impervious to atmospheric oxidation, acidic rain, and chemical corrosion in highly polluted industrial areas.
🛡 ️ Uniform Radial Stress Relief : The smooth and wide contact surface of the internal wedges distributes holding forces evenly across the cable section, eliminating localized crushing and protecting internal conductor strands.
🛠 ️ Toolless One-Man Pole Deployment : No hydraulic crimpers, compression dies, or wrenches are needed for installation. Field linemen can easily slip, wrap, and lock the wire manually, reducing construction times.
⏳ 25+ Years Maintenance-Free Asset : The engineered synergy of marine-grade stainless steel and heavily UV-stabilized polymer resins ensures a multi-decade outdoor lifespan, lowering long-term system maintenance costs.
