Wire Strain Clamp
Product Model： PA06 Optical Cable Tension Clamp (PA06 wire strain clamp)
Product Type： Fiber Optic Tension Clamp for Overhead Cables and FTTH Drop Cables
Place of Origin： Guangdong, China – Professional Manufacturer of Power Line and Fiber Optic Hardware
Minimum Order Quantity： 100 Pieces, OEM and ODM Services Available
Packaging： Export cartons
Lead Time ：15–30 Days with Stable Production Capacity
Shipping Method：In accordance with client requirements
Standards： Manufactured in accordance with GB/T 2314, GB/T 2315, DL/T 764 and DL/T 284
Sample Service： Samples Available for Product Evaluation and Project Testing
Category Fiber Optic Cable Accessories
Get a QuoteProducts Description

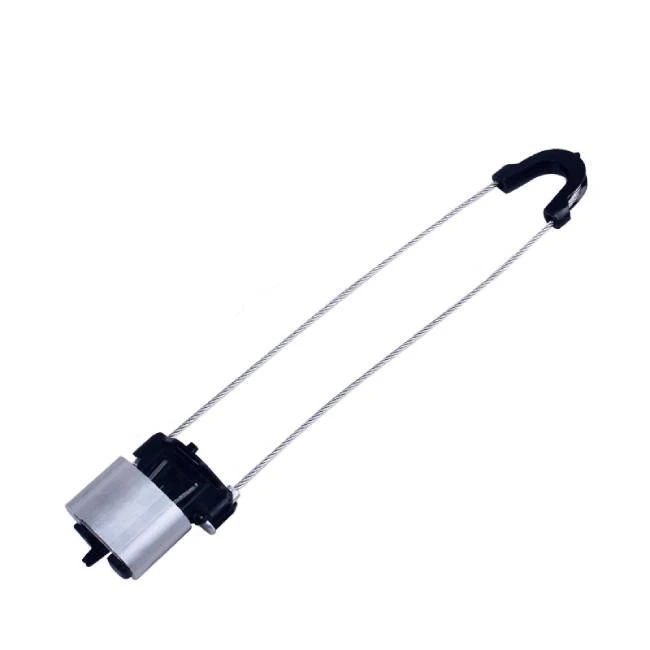

PA06 wire strain clamp (4.5-7 mm²)
The PA06 wire strain clamp represents a heavy-duty line stabilization solution, specifically engineered for routing, securing, and dead-ending low-voltage aerial bundled cables (ABC) and high-capacity fiber optic drop wires. Optimized to accommodate conductor cross-sections from 4.5 mm² to 7 mm² , it serves as an indispensable utility fitting for modern telecommunication rollouts and rural power distribution grids.
Built on a robust architectural matrix, the PA06 combines a precision Die-Cast Aluminum Alloy exterior block for absorbing heavy physical drift with a specialized PA6 Nylon insert assembly for complete galvanic isolation. Complemented by an elastic Stainless Steel wire rope (bail) , this mechanical assembly guarantees a dependable 4 KN structural load threshold , providing utility network engineers with a zero-failure deployment choice under intense outdoor stress.
Products Description
Technical Parameters
| Technical Features | Specifications & Tolerances |
| Model Number | PA06 |
| Compatible Conductor Size | 4.5 - 7 mm² |
| Material Composition | Aluminium Alloy + PA6 + Stainless Steel Rope |
| Manufacturing Process | Precision High-Pressure Die Casting |
| Rated Breaking Load (RTS) | 4 KN |
| Voltage Class | ≤ 1 KV |
| Climatic Temperature Range | -40 °C ~ +120 °C |
| Design Service Life | ≥ 25 Years |
Technical Parameters Description
Precision Die-Casting Metallurgy : The metal enclosure body undergoes high-pressure Die Casting fabrication , ensuring a dense atomic structure with exceptional fatigue limits that eliminates structural cracking under permanent line sag.
Weatherproof Insulation Core : The twin gripping wedges are molded from premium Nylon PA6 polymers , delivering excellent dielectric strength that prevents voltage tracking or moisture ingress under heavy downpours.
Optimized 4 KN Tension Equilibrium : Rated for a secure tensile load of 4 KN , the clamp achieves a perfect balance between high holding power and lightweight logistics, engineered to minimize cable vibration and structural fatigue.
Marine-Grade Multi-Strand Bail : The flexible link loop utilizes a heavy-gauge Stainless Steel wire rope that resists salt spray corrosion, ensuring effortless integration onto universal J-hooks, drive hooks, or pole brackets.
Universal Climate Adaptation : Extensively field-tested to sustain mechanical and electrical performance from -40 °C to +120 °C , successfully mitigating winter brittleness and tropical thermal deformation.
Product Features
🔒 Conical Non-Slip Locking Mechanism : Features an advanced sliding wedge layout where natural line tension causes the internal blocks to seat deeper, achieving a dynamic manual lock that completely prevents core slippage.
🛡 ️ Hardened Anti-Crush Shield : The rugged die-cast aluminum outer frame acts as a shock-absorbing buffer, protecting the delicate internal cable jackets from accidental impacts or tools drops during high-altitude installation.
⚡ 1KV Certified Voltage Protection : Specially rated for systems below 1 KV, the non-conductive PA66 wedges function as an absolute electrical shield, eliminating leakage currents and flashover hazards.
🛠 ️ One-Man Instant Toolless Deployment : Designed for simple wrap-and-lock operations that eliminate on-site reliance on heavy crimping dies or hydraulic pumps, significantly lowering contractor labor costs.
⏳ Multi-Decade Asset Reliability : The strategic combination of anti-corrosion alloys, marine-grade steel, and UV-stabilized resins ensures an active maintenance-free lifecycle of 25+ years in industrial environments.
