Round ADSS Aluminum Dead-End Anchor PA-01500

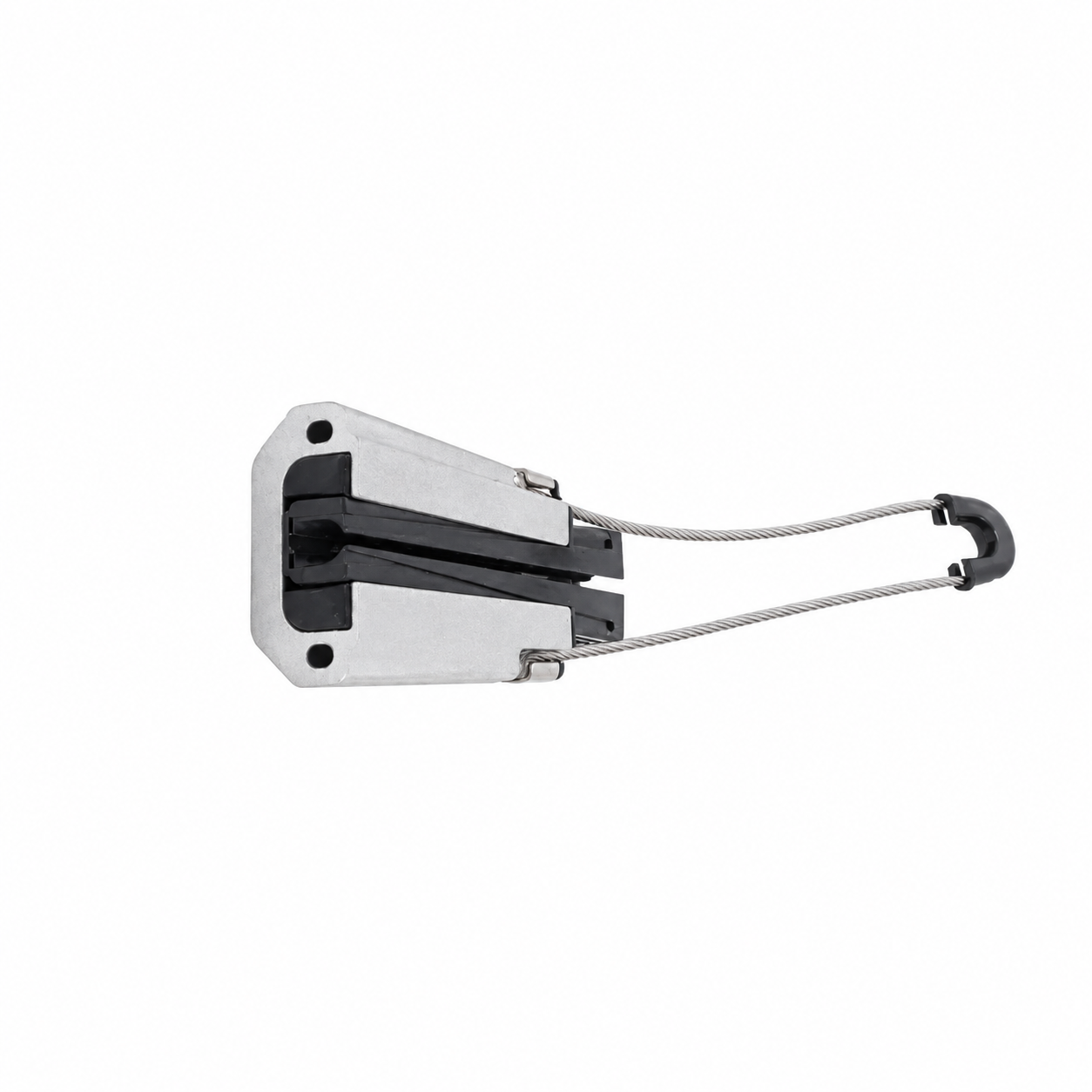

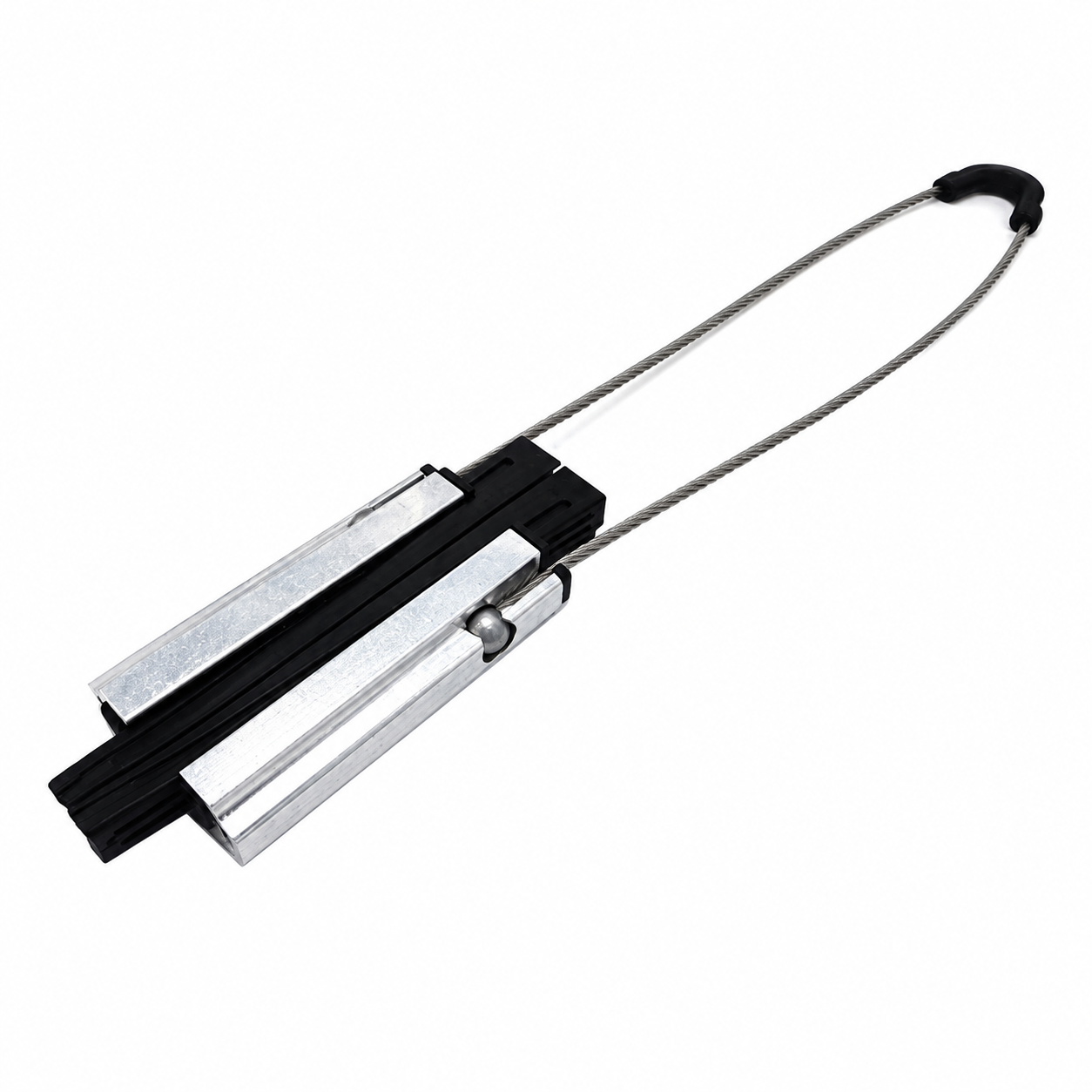

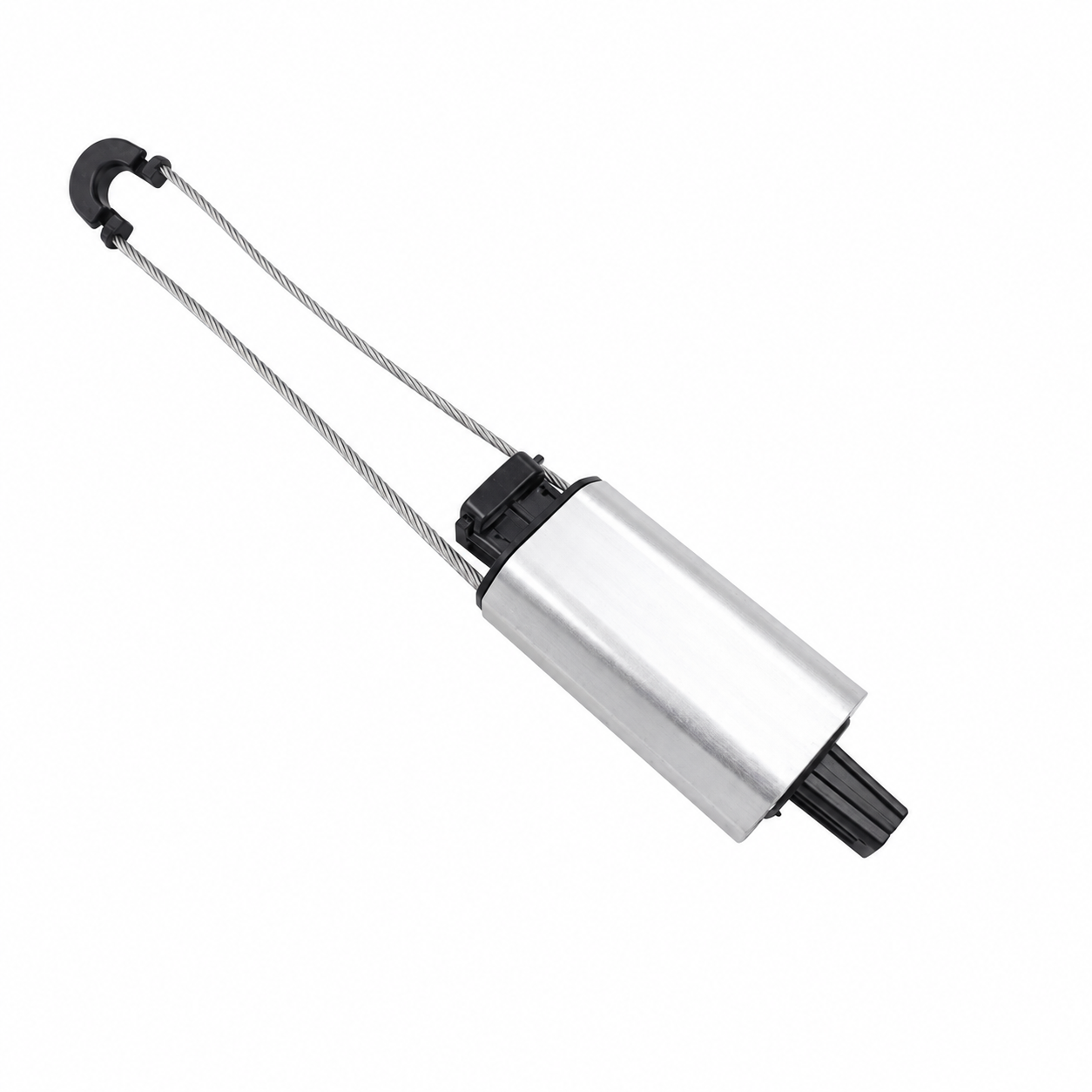

The PA-01500 tension clamp provides anchoring for ADSS cables during the construction of telecommunications lines.
Features
- Designed for round cables
- Cable outside diameter: 11–14 mm
- Intended span range: 70–200 m
- Minimum breaking load: 15 kN
Application
The PA-01500 anchor clamp mounts on telecommunications poles and brackets to maintain ADSS cable tension while protecting the jacket from mechanical damage. Its aluminum alloy body, UV-resistant wedges and stainless steel bail resist corrosion and environmental loading from wind, temperature changes and ice.
Tool-free installation helps contractors work efficiently in residential, industrial and rural broadband projects while supporting dependable long-term service. This variant accommodates 11–14 mm cable, a 15 kN minimum breaking load and spans of 70–200 m.
| Product code | Cable size,mm | Material | MBL,KN | Weight,kg |
| PA-01500 | Φ11-14 | Aluminum alloy，UV resistant plastic, stainless steel | 15 | 0.4 |
