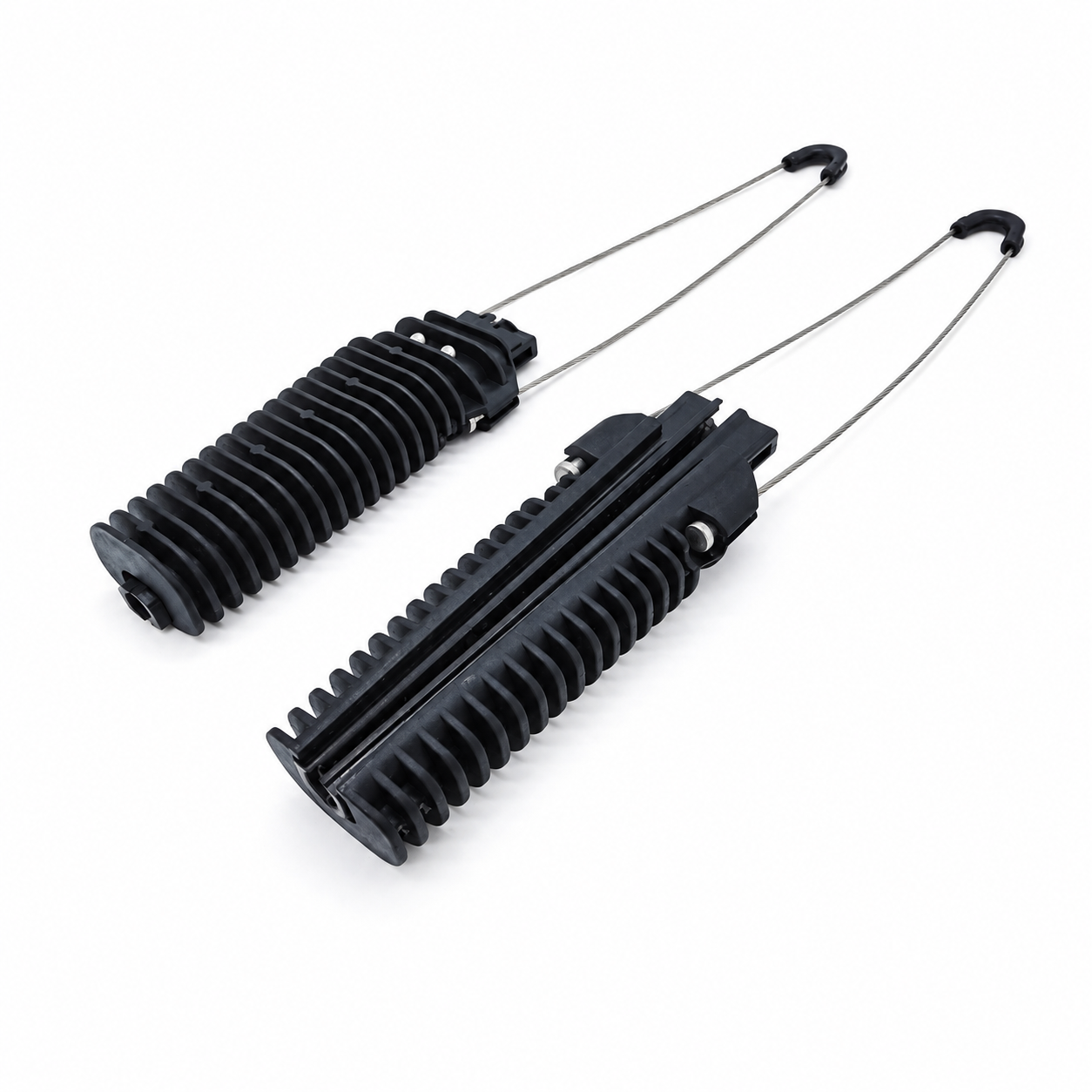

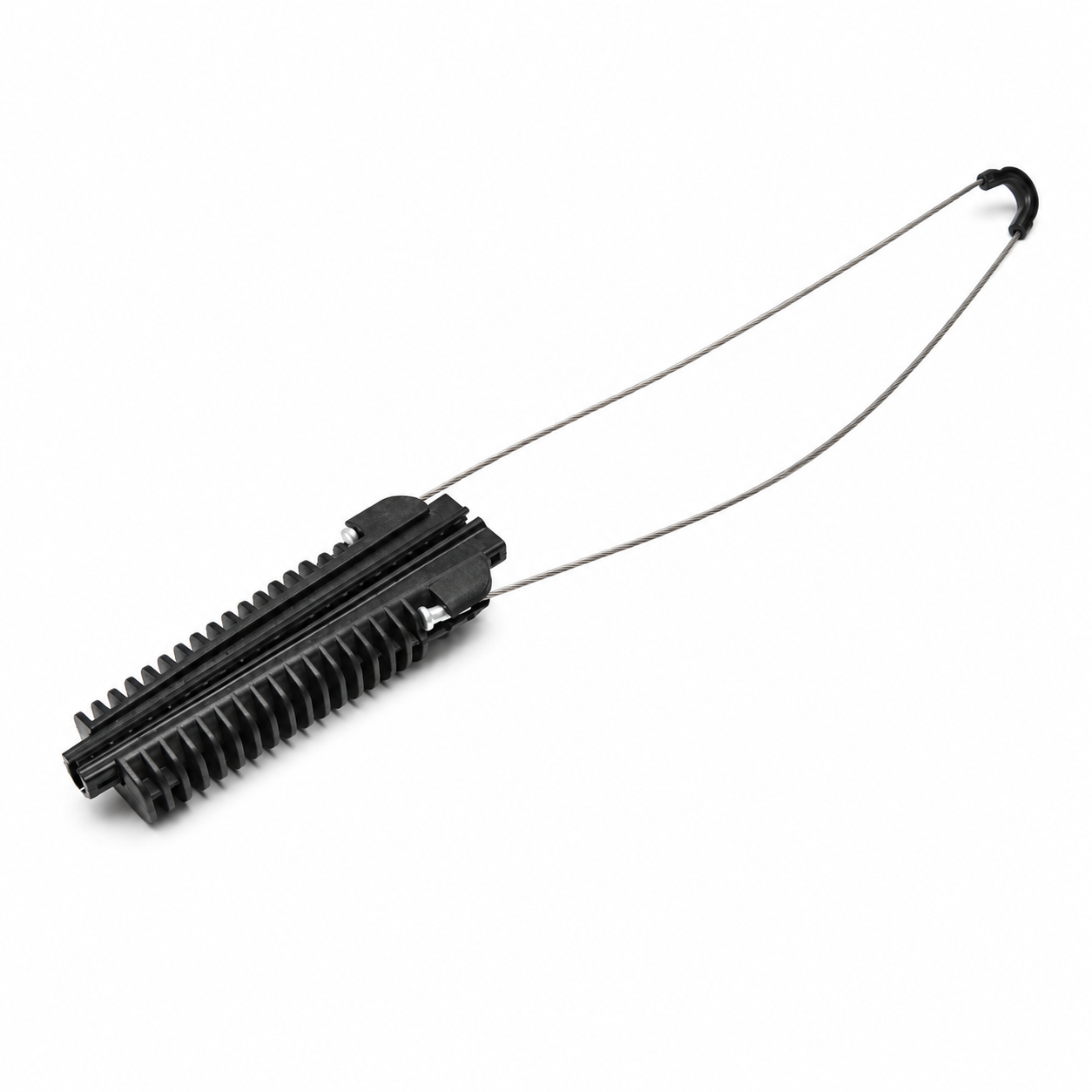

ADSS Wedge Anchor for 10–14 mm Cable PA-2001-10-14
The PA-2001-10-14 wedge tension clamp anchors and tensions ADSS cables at intermediate locations or dead ends on outdoor overhead FTTH routes.
Features
- Designed for round cables
- Cable outside diameter: 10–14 mm
- Intended span range: 70–200 m
- Minimum breaking load: 8 kN
Application
The PA-2001-10-14 clamp anchors and tensions round ADSS cables at intermediate and terminal positions in outdoor aerial FTTH networks. The specified cable diameter is 10–14 mm, the minimum breaking load is 8 kN and the span range is 70–200 m.

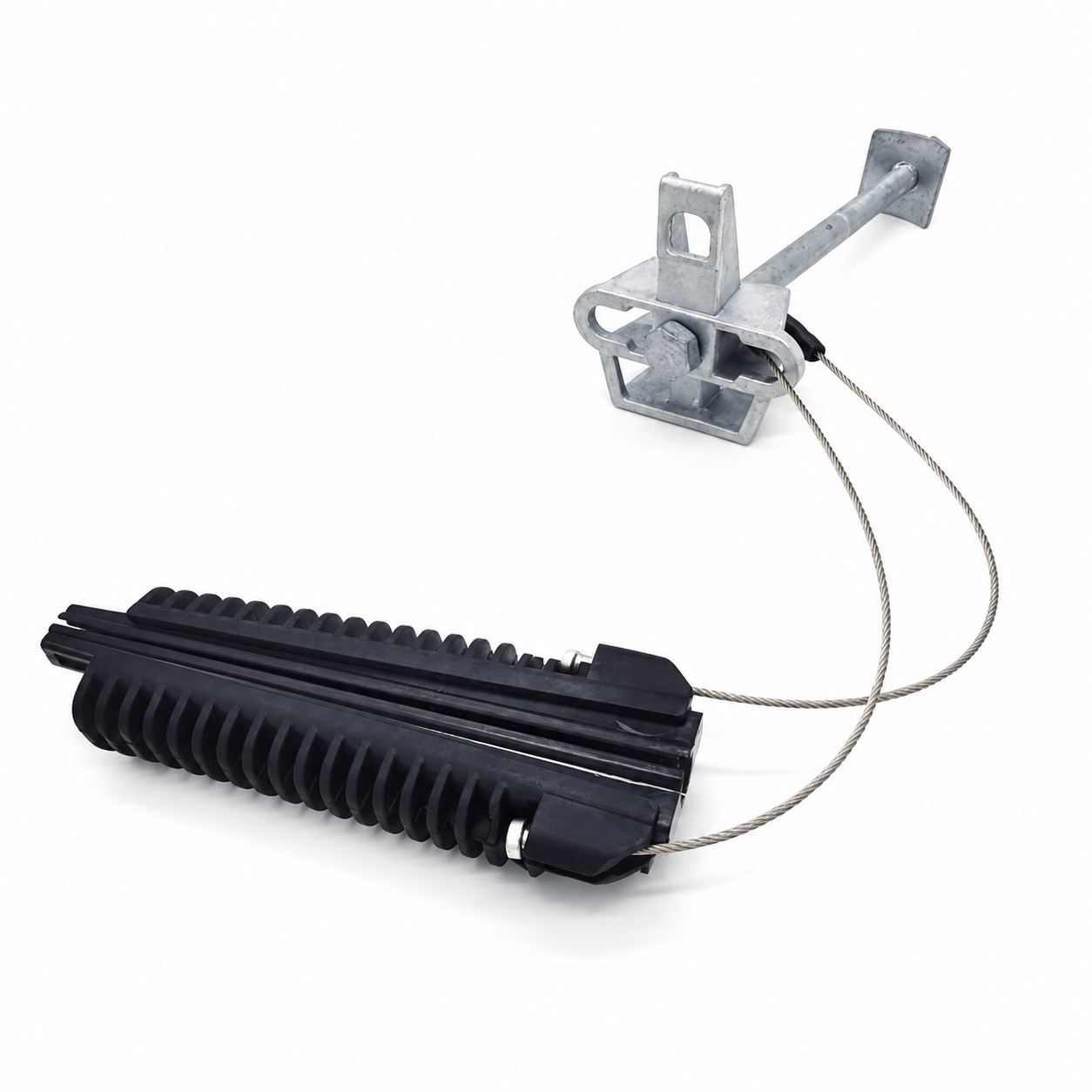

It works with cable supports, frames and poles to form a secure overhead fixing assembly. Internal grooves and anti-slip textures increase contact friction to resist loosening, displacement and detachment under sustained tension.
The clamp uses a 304 stainless steel wire rope with customer-specific length options; the standard bail length is 350 mm. The insulating, UV-resistant plastic housing protects the cable against outdoor exposure and helps prevent unwanted electrical contact with adjacent equipment.
Self-adjusting wedges protect the cable jacket, and an opening bail allows attachment to brackets and hooks. Installation requires no additional tools, providing an economical fitting for outdoor fiber cable work.
| Product code | Cable size,mm | Material | MBL,KN | Bail length,mm |
| PA-2001-10-14 | Φ10-14 | UV resistant plastic, stainless steel,aluminum | 8.0 | 350 |
