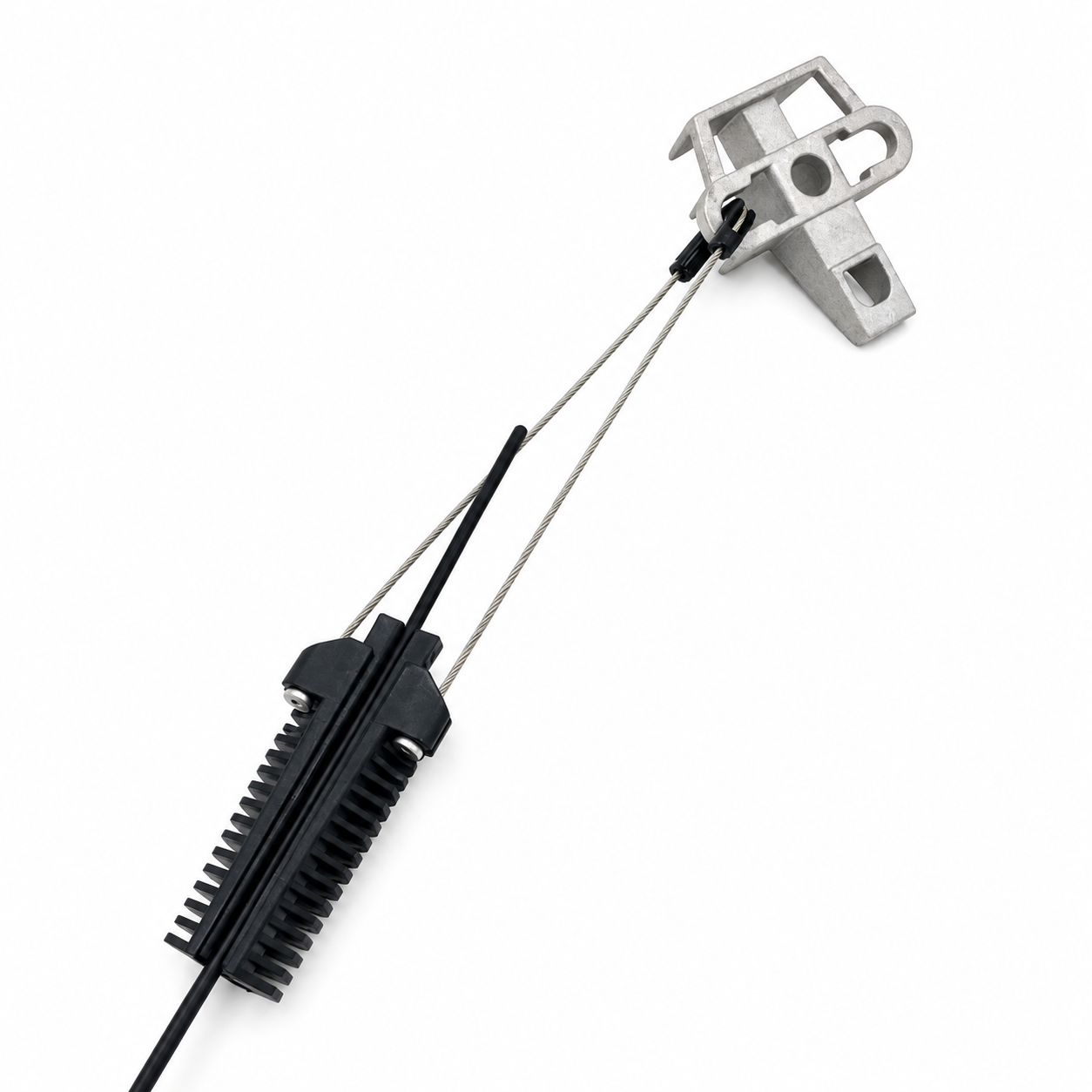

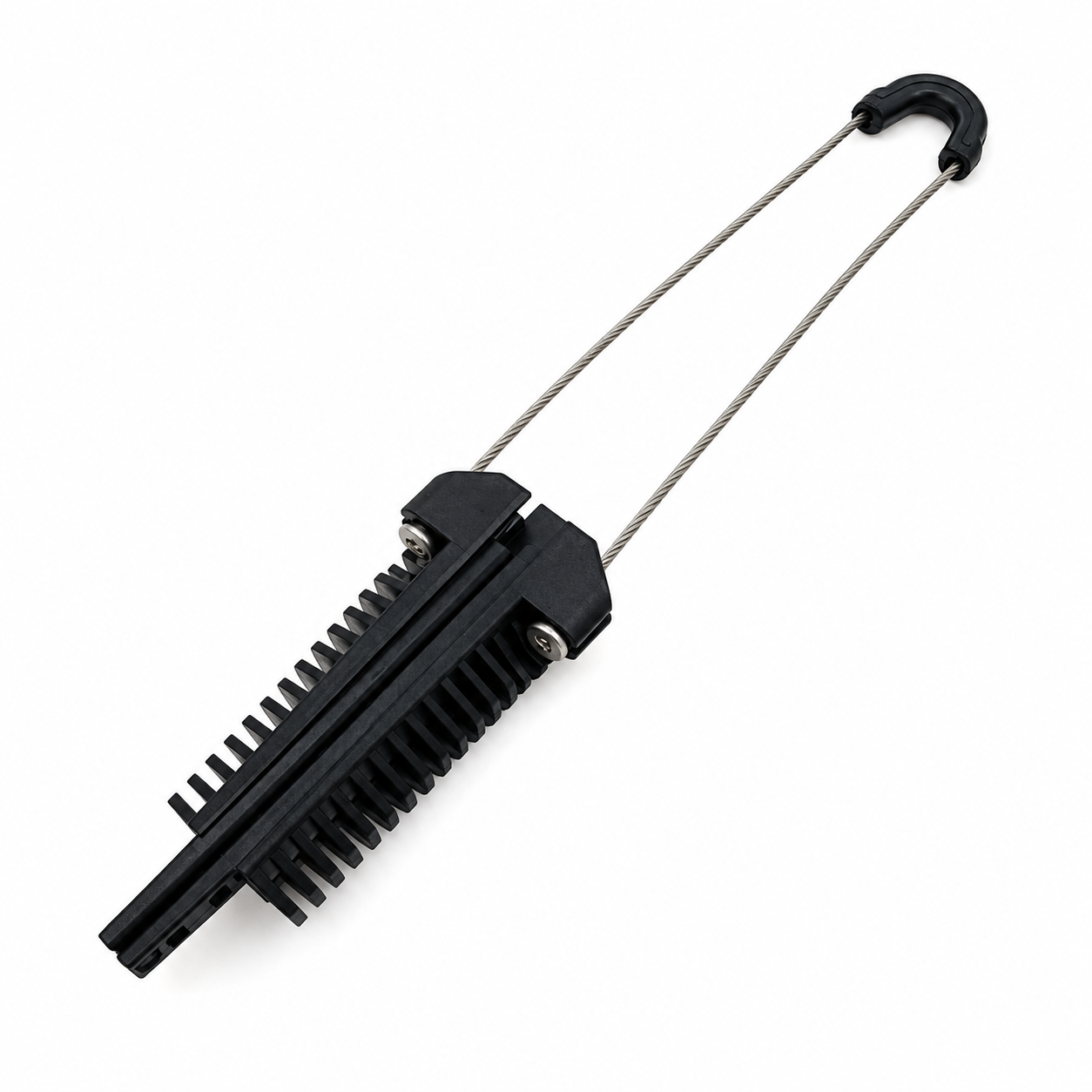

Round ADSS Double Dead-End Clamp PA-400.1
The PA-400.1 aerial anchor clamp secures and tensions round ADSS cables at dead ends and double dead-end locations on outdoor telecommunications routes.
Features
- Fitted without additional tools

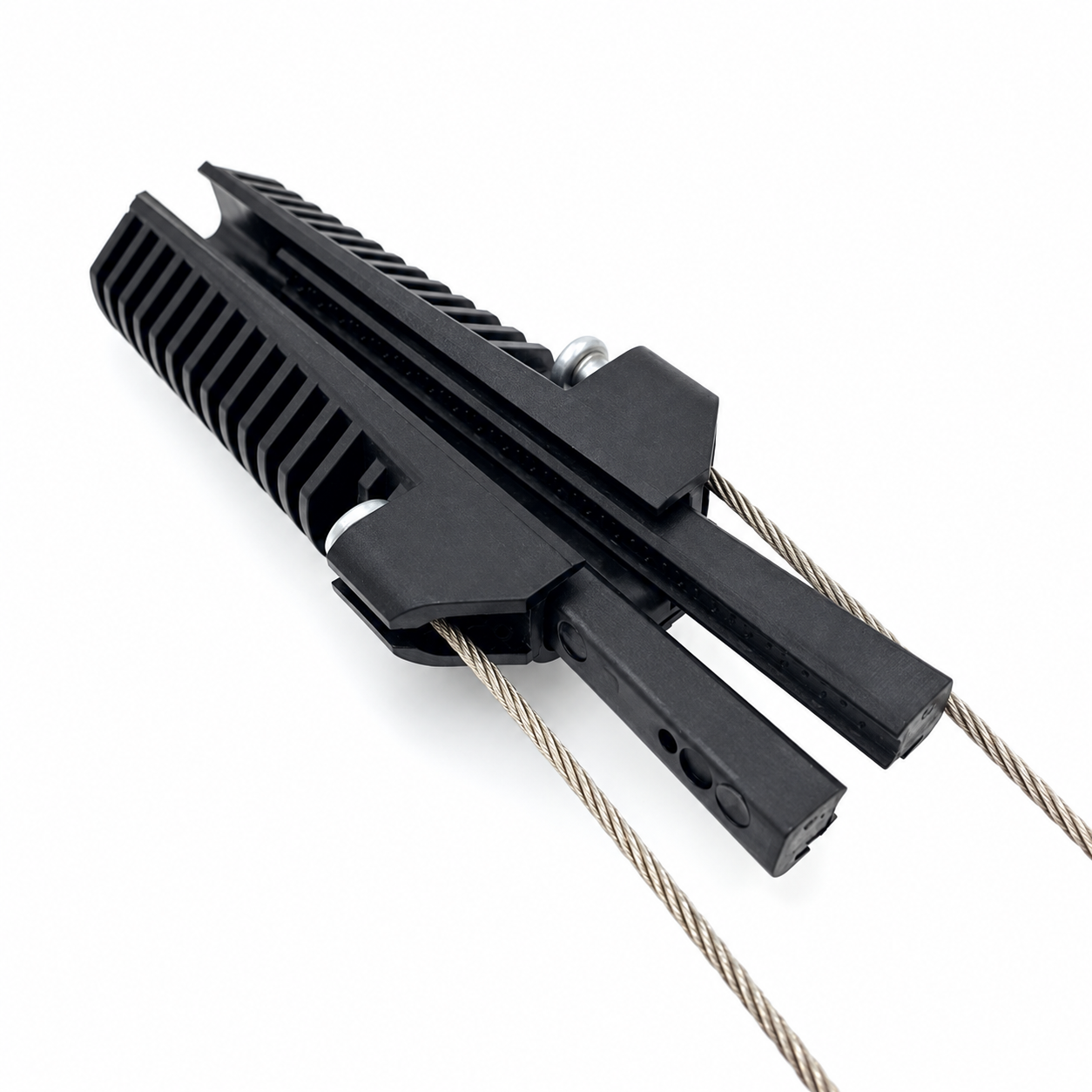

- Self-adjusting wedges protect the cable sheath
- Durable UV-resistant thermoplastic and stainless steel construction
- Opening bail simplifies fitting to pole brackets and hooks
- Stable performance under outdoor conditions
- Economically priced mini ADSS anchoring solution
Application
The PA-400.1 clamp provides terminal anchoring and tension retention for round ADSS cables in outdoor overhead networks, including double dead-end arrangements. The applicable cable diameter is 4–8 mm.
It is used in FTTH access networks, telecommunications distribution routes and general fiber installations. Mounting locations include utility poles, crossarms, wall brackets and building exteriors. The clamp resists line tension, wind loading and other external forces while protecting the sheath.
Its self-adjusting wedges allow quick installation without tools. UV-resistant plastic and corrosion-resistant stainless steel support dependable outdoor service in residential developments, industrial parks and other fiber communications infrastructure.

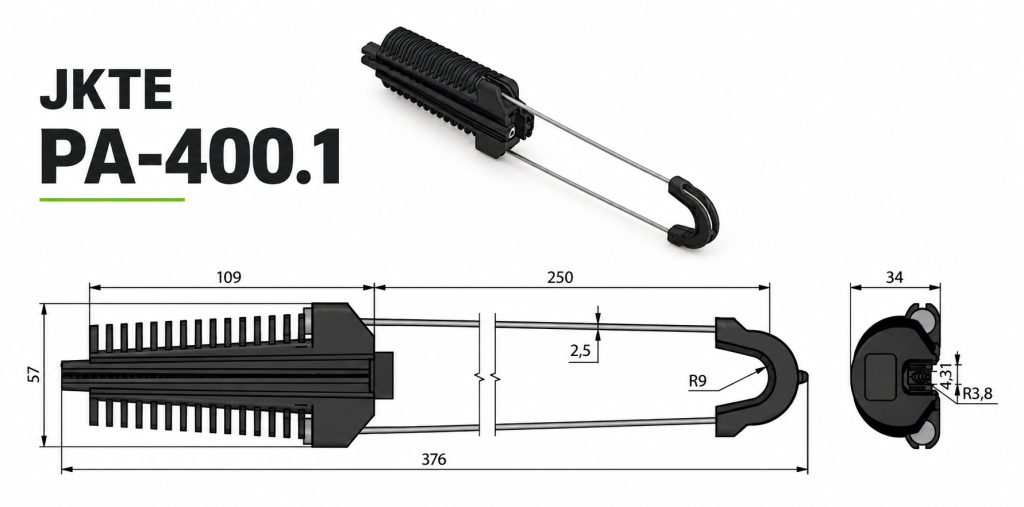

| Product code | Messenger diameter size,mm | Material | MBL,KN | Wire loop |
| PA-400.1 | 4-8 | UV resistant plastic, stainless steel | 3 | Standard Φ 2.5mm, 350mm length |
Ultimate tensile strength testing evaluates a product’s capacity to withstand mechanical pulling loads. Opposing tensile forces are applied to a specimen until it deforms or fails. The resulting measurements provide information on elongation, yield point, tensile strength and ultimate strength.
JKTE uses tensile testing for pole-line suspension clamps, preformed guy grips, ADSS dead-end fittings, stainless steel bands, FTTH drop clamps and tension clamps.
For overhead optical cables and their accessories, endurance testing combines mechanical and thermal loading with oscillating stresses. The applicable test values depend on the requirements of IEC 61284.
These standard-based tests are applied before new products are released and during routine production to check conformity with quality requirements. JKTE’s in-house laboratory carries out the relevant series of type tests.
