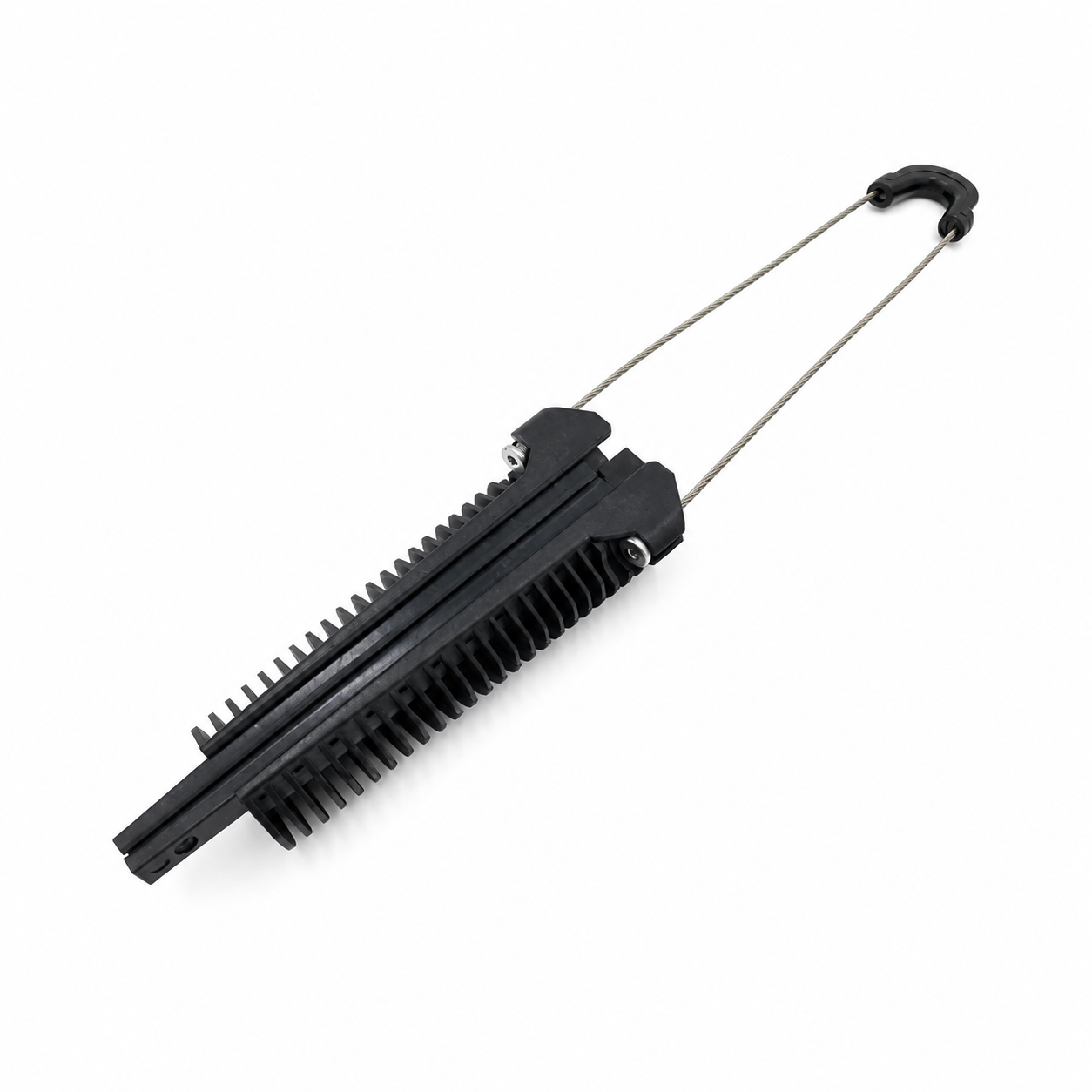

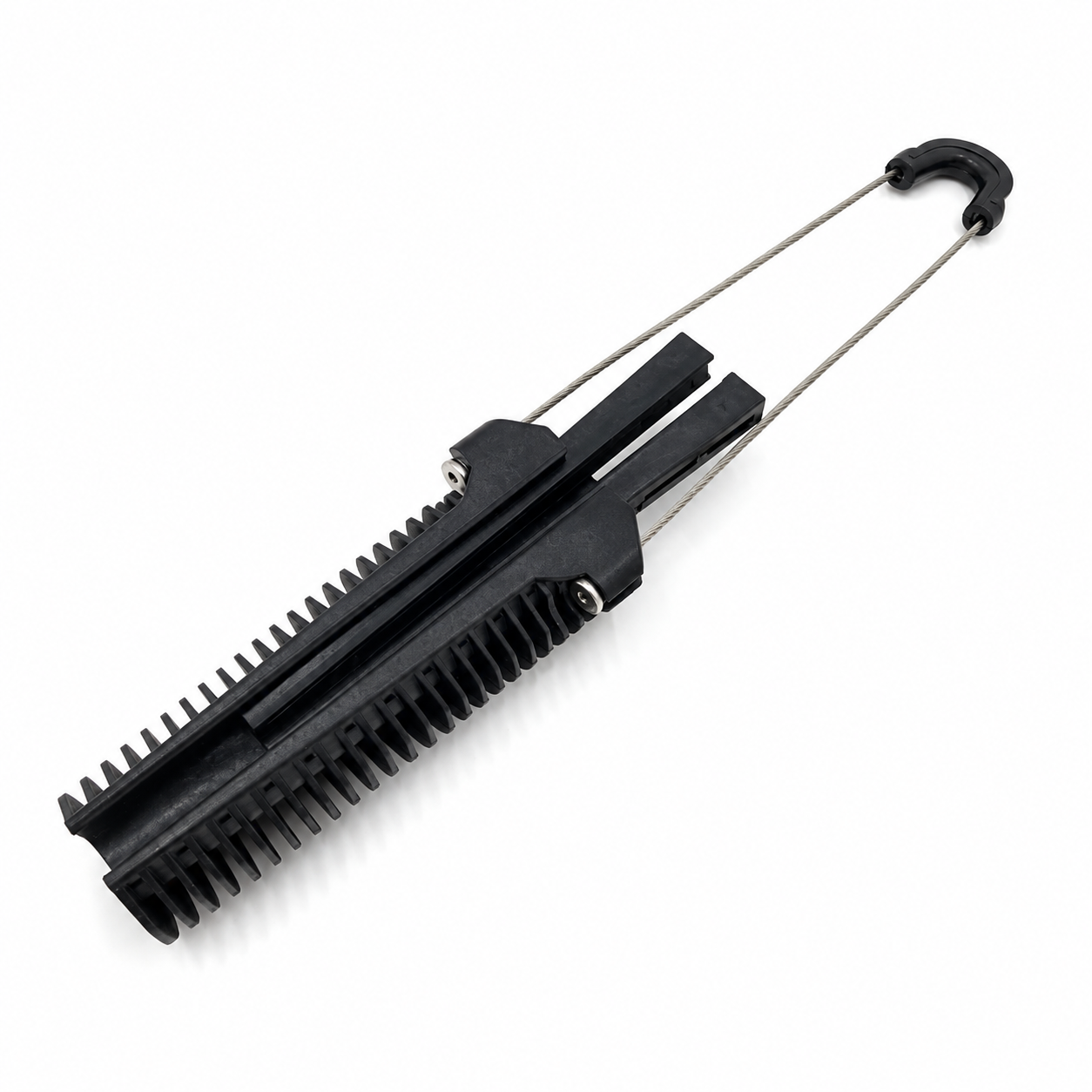

ADSS Pole-Mounted Wedge Anchor PA-601
The PA-601 wedge tension clamp tensions all-dielectric self-supporting (ADSS) cables with an outside diameter of 8–12 mm during outdoor aerial FTTx construction.
Features
- Fitted by hand without additional tools
- UV-resistant polymer and stainless steel for extended service
- Self-adjusting wedges retain the cable under tension
- Accommodates ADSS cable diameters of 8–12 mm
- Mechanical tensile strength of up to 3 kN
- Stable performance in outdoor conditions
- Economically priced
Application
The PA-601 clamp anchors 8–12 mm ADSS cables in aerial fiber installations. It serves dead-end locations in FTTH, GPON, CATV and telecommunications backbone networks.

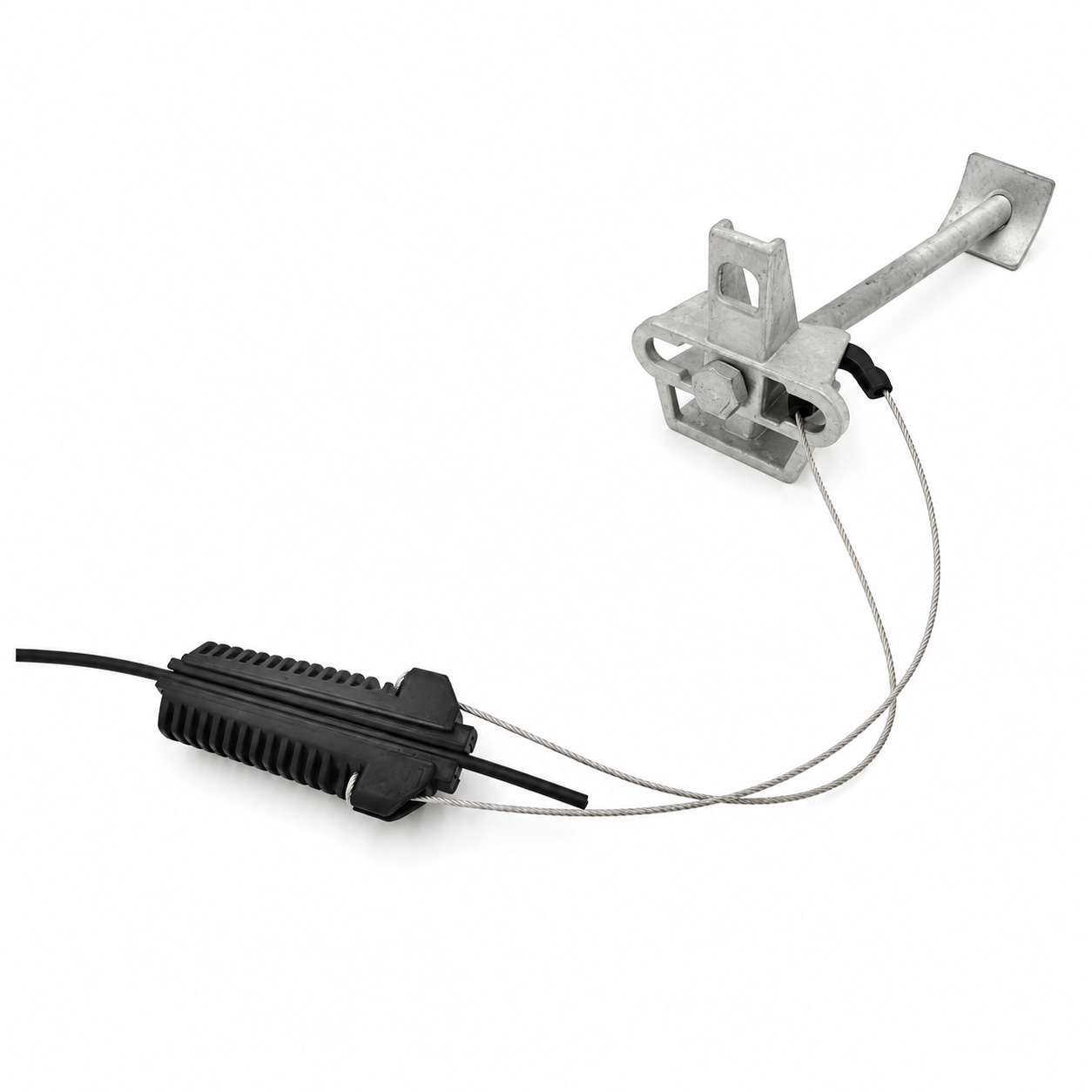

Mounted on pole brackets or hooks, the fitting maintains line tension and helps reduce movement associated with wind-induced vibration and temperature changes. Durable materials support long-term outdoor service.
Tool-free fitting enables quick field installation, providing network operators with a dependable and economical cable anchoring option.

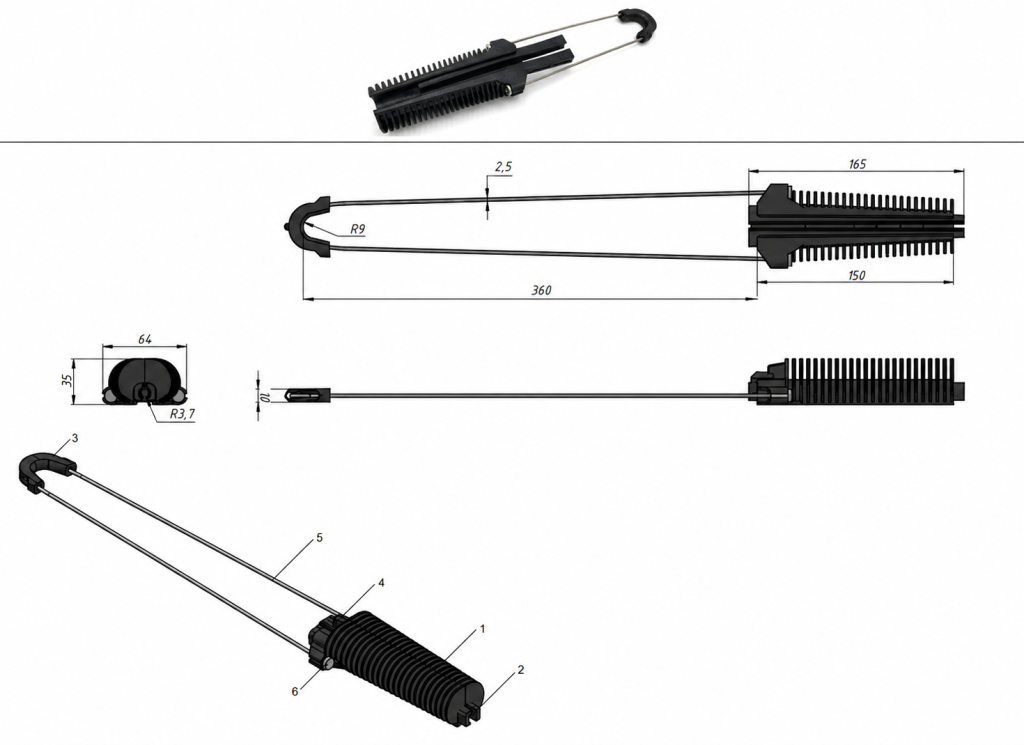

| Product code | ADSS cable size, mm | MBL, kN | Material | Wire bail |
| PA-601 | 8-12 diameter | 3 | UV resistant polymer, stainless steel wire | Standard Φ 2.5mm,350mm length |
Ultimate tensile strength testing evaluates a product’s capacity to withstand mechanical pulling loads. Opposing tensile forces are applied to a specimen until it deforms or fails. The resulting measurements provide information on elongation, yield point, tensile strength and ultimate strength.
JKTE uses tensile testing for pole-line suspension clamps, preformed guy grips, ADSS dead-end fittings, stainless steel bands, FTTH drop clamps and tension clamps.
For overhead optical cables and their accessories, endurance testing combines mechanical and thermal loading with oscillating stresses. The applicable test values depend on the requirements of IEC 61284.
These standard-based tests are applied before new products are released and during routine production to check conformity with quality requirements. JKTE’s in-house laboratory carries out the relevant series of type tests.
