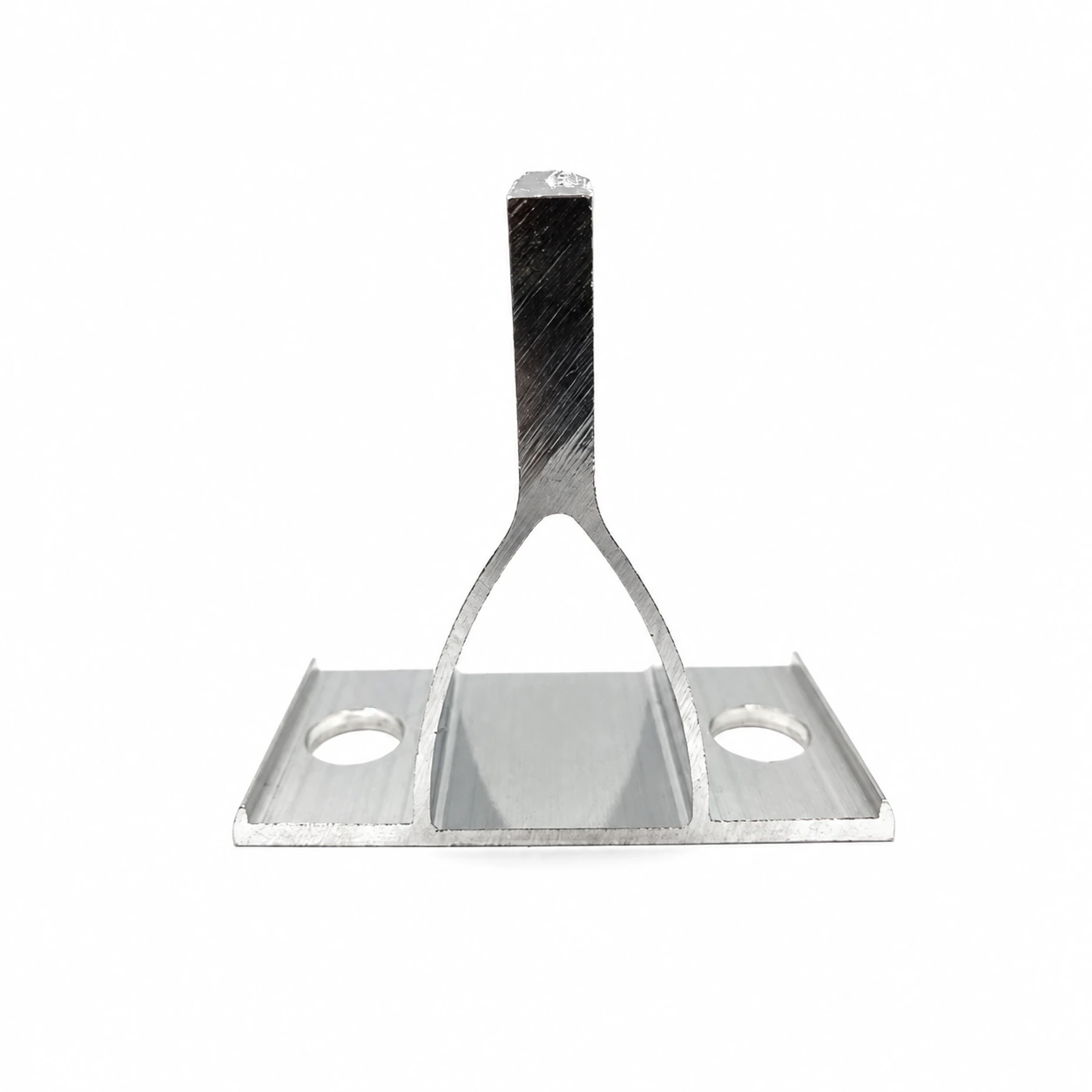

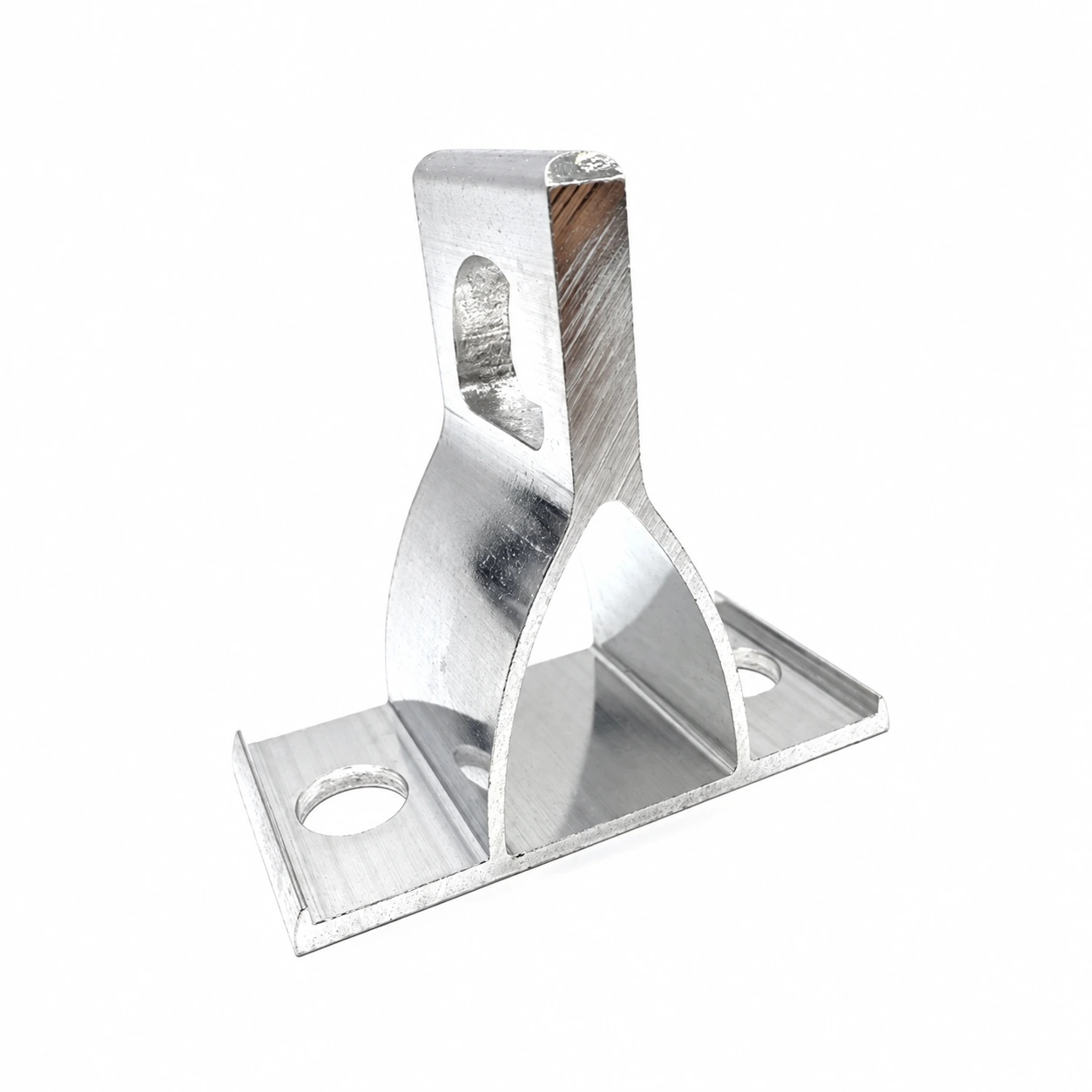

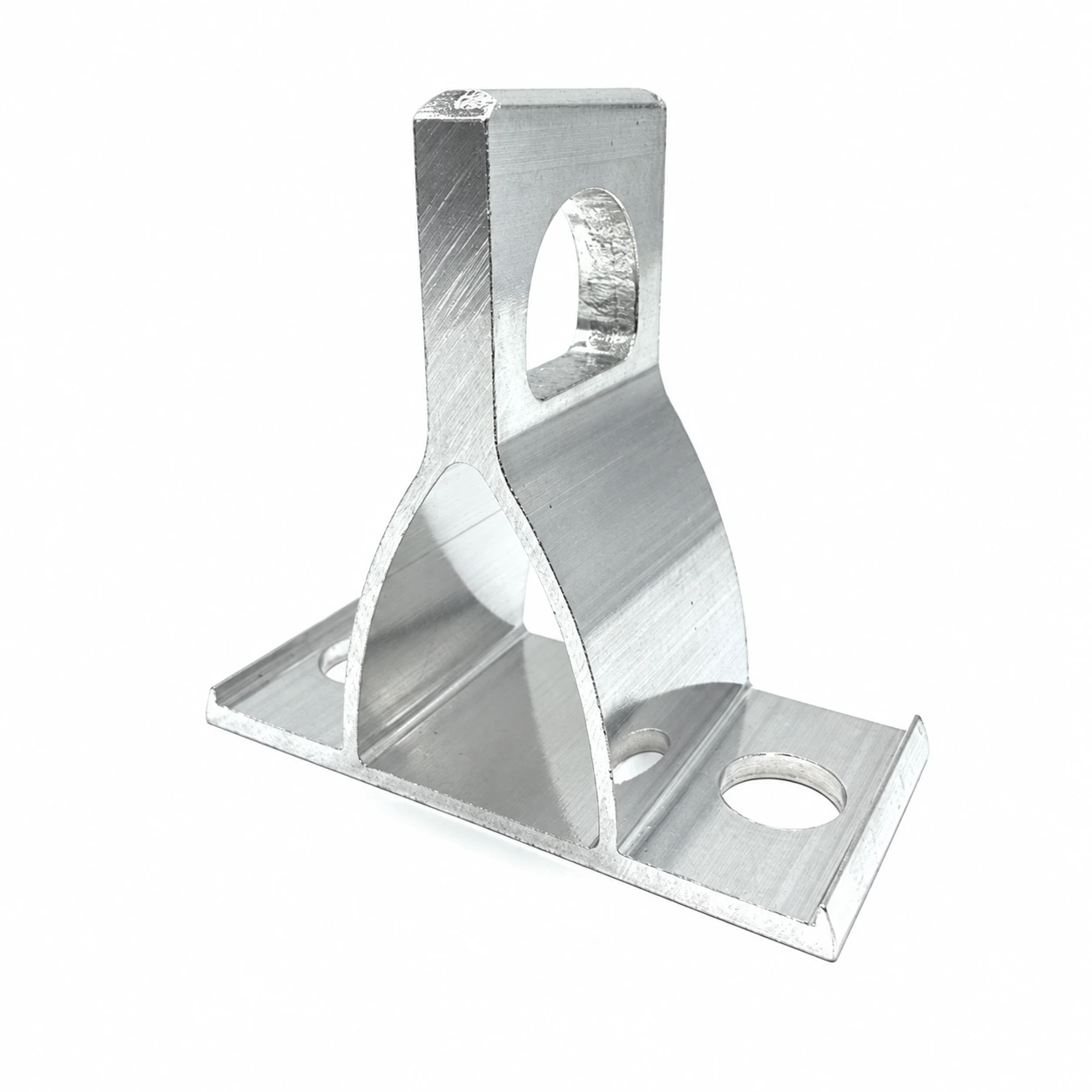

ADSS Anchoring Bracket CA-1100.1
The CA-1100.1 anchoring bracket carries ADSS tension clamps or figure-8 cable clamps for outdoor FTTx line installation.
Features
- Smooth edges facilitate handling and installation
- Durable aluminium alloy with corrosion resistance
- Mounting with bolts or stainless steel bands
- Minimum breaking load of 15 kN
- Weather-resistant construction for outdoor use
- Specified span range: 70–200 m
- Economical anchoring hardware
Application
The high-strength aluminium alloy body combines mechanical load capacity with weather resistance for extended outdoor service. Install the bracket on a pole or wall using appropriate bolts or stainless steel bands, then connect a compatible ADSS or figure-8 anchoring clamp.
| Product code | MBL, kN | Material |
| CA-1100.1 | 15.0 | Aluminum alloy |
Relevant evaluations include tensile loading, temperature/humidity cycling, ageing and corrosion resistance. Together, these methods assess mechanical integrity and durability under outdoor exposure. Consult product-specific reports for the test conditions and acceptance criteria.
