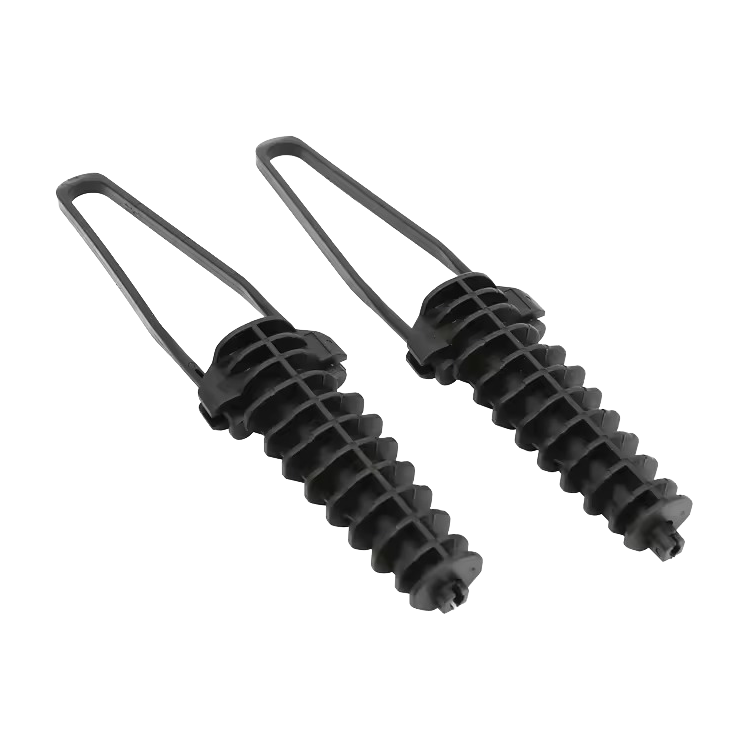

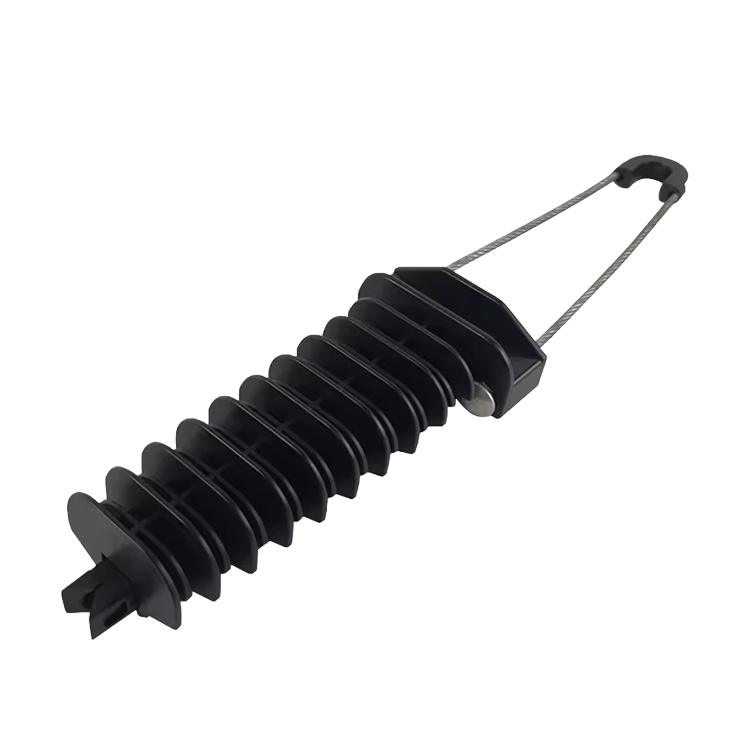

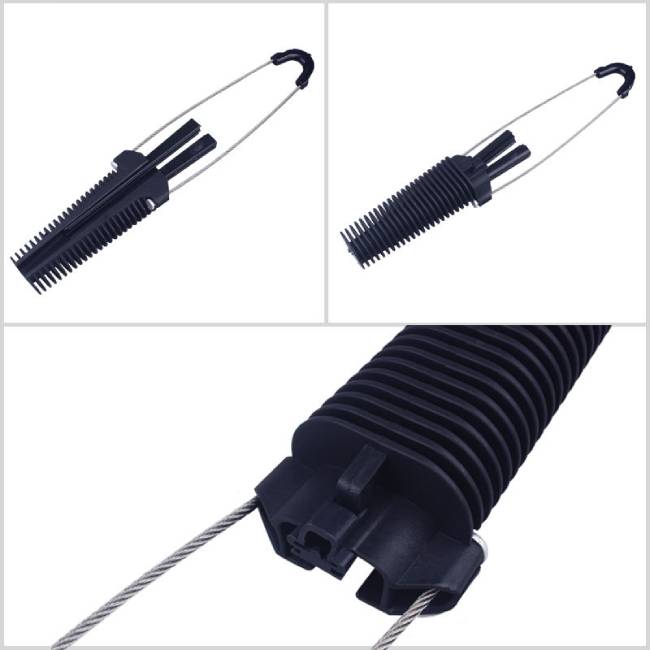

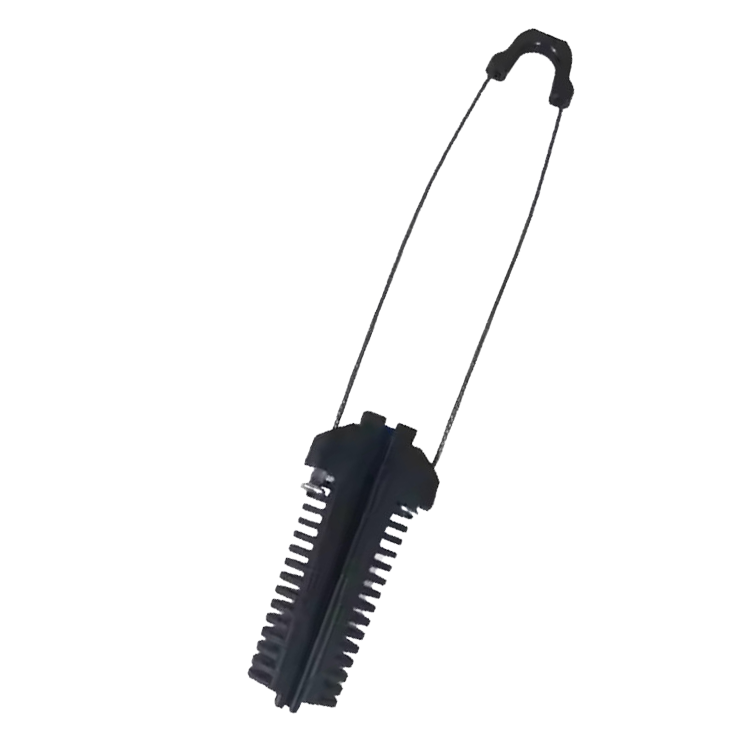

Aerial ADSS tension clamp, PA-2000 (8-12mm)
Aerial ADSS tension clamp, PA-2000 either called wedge anchor clamp, was designed to anchor the ADSS optical fiber cable on overhead telecommunication lines. The ADSS tension clamp PA-2000 is used with the fiber optic cable on intermediate poles for the maximum distance up to 100 meters.
Feature
- Tool free installation
- Self-adjusting wedges
- Stainless steel bail
- No cable jacket damages
- Open bail for rapid installation
- Anti-drop off design
- Excellent Environmental Stability
- Extended body length for better attenuation of fiber cable
PA2000 ADSS Fiber Optic Cable Tension Clamp
The PA2000 ADSS Fiber Optic Cable Tension Clamp is designed for dead-ending and anchoring ADSS fiber optic cables in outdoor aerial communication networks. Its self-locking wedge structure provides secure cable gripping and stable anchoring at termination and tension points.
The clamp features a UV-resistant engineering plastic body and 304 stainless steel wire bail, providing reliable mechanical performance and resistance to outdoor environmental conditions. It is suitable for 8–14 mm ADSS fiber optic cables with a tensile load of ≤10 kN.
The PA2000 offers convenient installation and secure cable holding, making it suitable for pole-mounted anchoring and termination applications in ADSS, FTTH and FTTx aerial fiber optic networks.
Key attributes
| Application | ADSS / FTTH / FTTx Aerial Fiber Optic Networks | Type | Fiber Optic Cable Tension Clamp |
| Material | Nylon + 304 stainless steel | Mounting Type | Tool-free installation, wedge-shaped self-locking |
| Casting Method | Injection molding | Place of Origin | Guangdong, China |
| Model Number | PA2000 | Brand Name | JKTE |
| Compatible Cables | ADSS Fiber Optic Cable | Model Number | PA2000 |
| Product Type | ADSS Fiber Optic Cable Tension Clamp | Cable Diameter Range | 8-14mm |
| Application | ADSS & FTTH Aerial Fiber Optic Networks | Clamp Type | Dead-End / Anchor Clamp |
| Structure Type | Self-Locking Wedge Type | Installation Type | Aerial / Overhead Installation |
| Main Body Material | UV-Resistant Engineering Plastic | Bail Material | 304 Stainless Steel Wire |
Packaging and delivery
| Selling Units | Single item | Single package size | 35X26X30 cm |
| Single gross weight | 0.530 kg | ||
