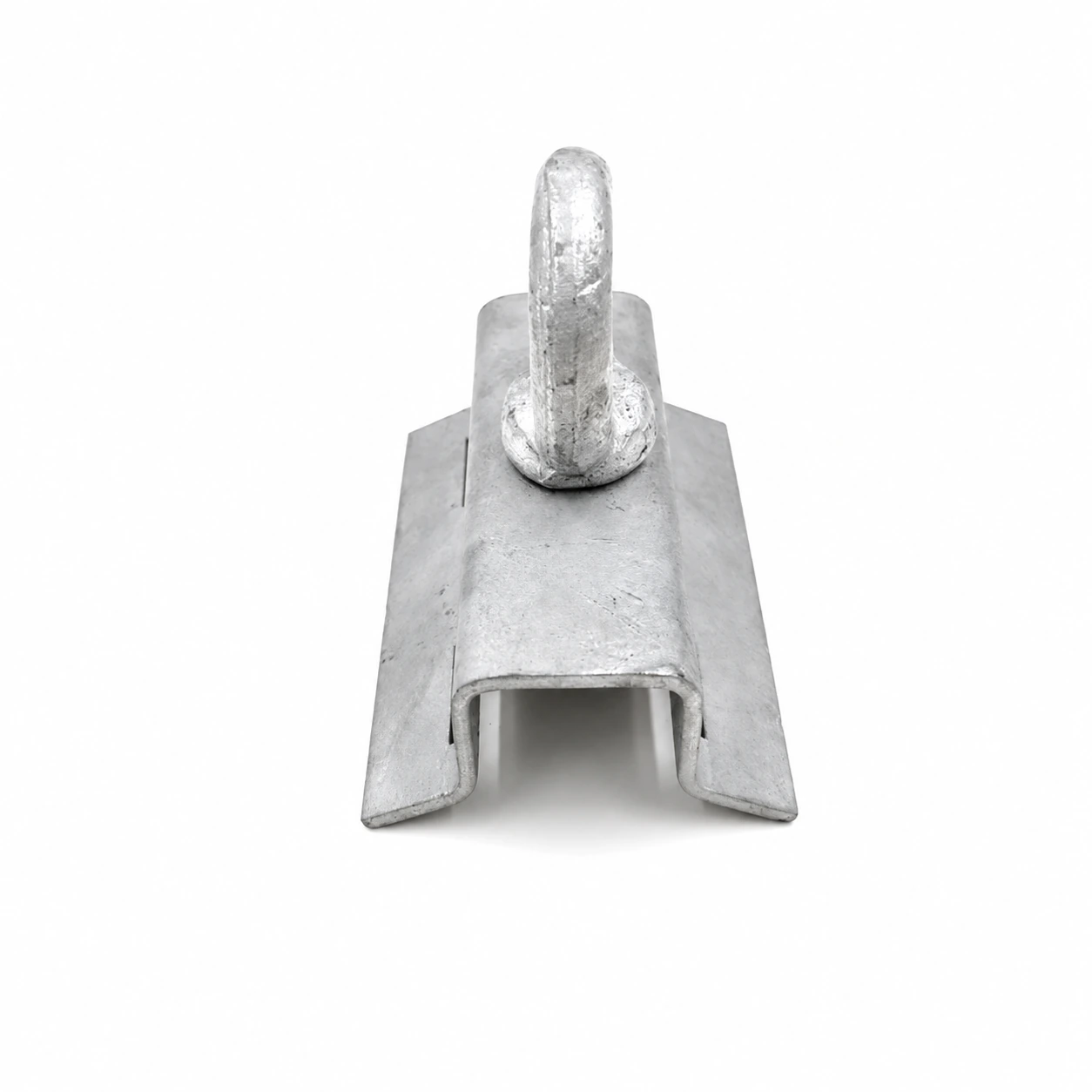

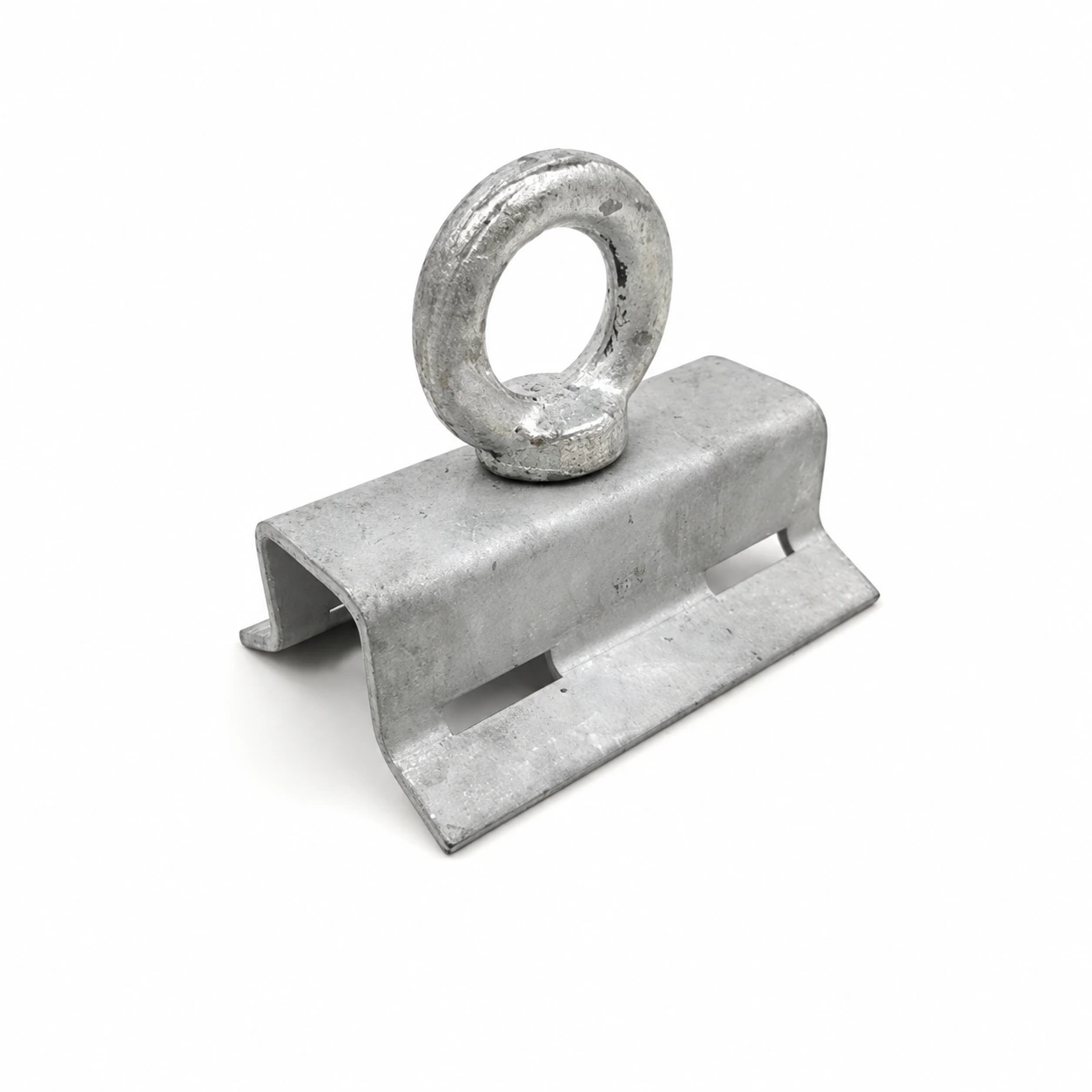

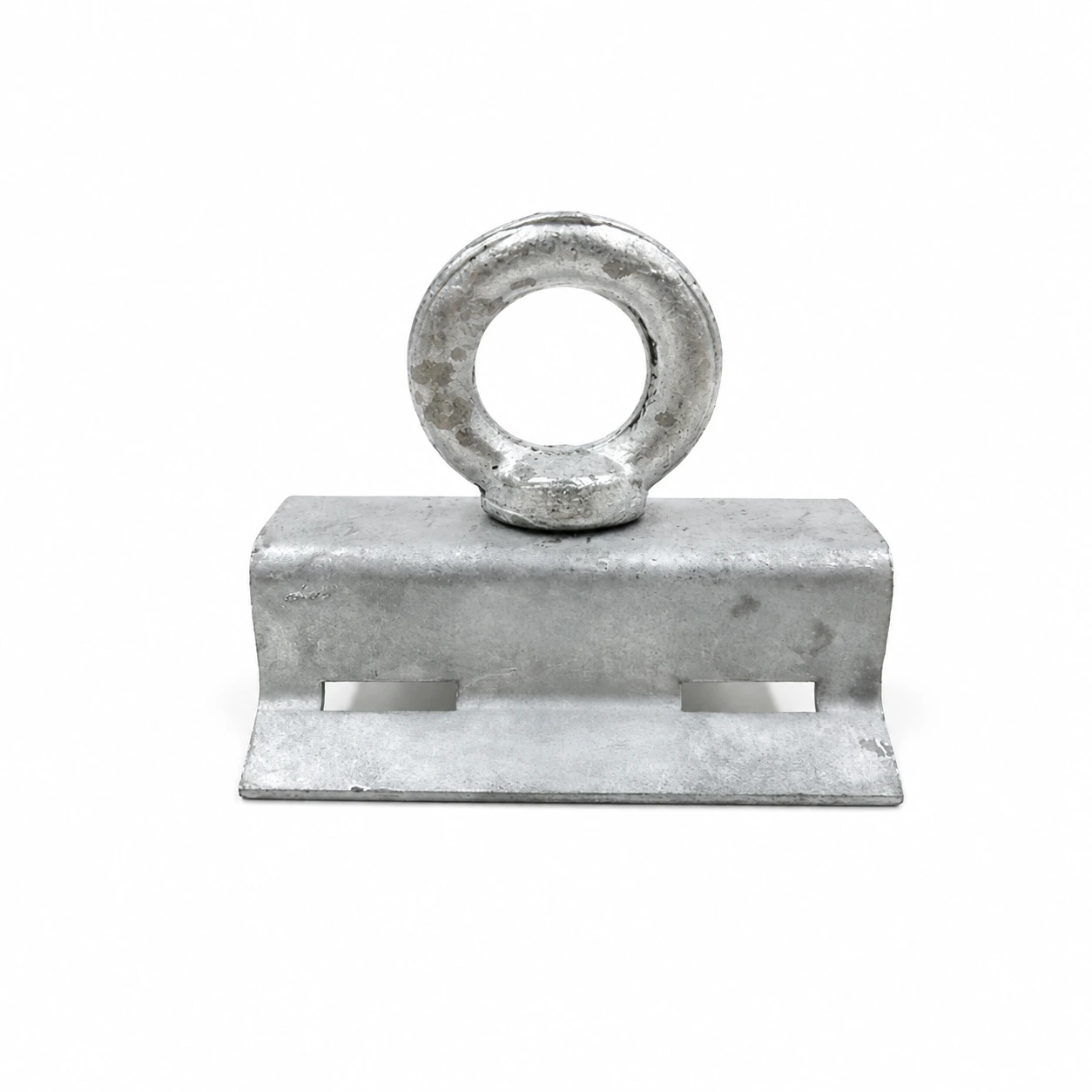

ADSS Ringbolt Tension Bracket YKR-00
The YKR-00 pole ringbolt bracket supports tension and suspension connections for ADSS cable clamps or preformed dead-end grips in outdoor FTTH and electrical networks.
Features
- Practical design for straightforward operation
- Pole attachment with stainless steel straps
- Rotatable ring for convenient alignment
- Hot-dip-galvanised steel construction
- High mechanical strength and outdoor stability
- Specified span range: 70–200 m; minimum breaking load: 8 kN
- Economical mounting hardware
Application
The bracket is made from high-strength steel with a hot-dip-galvanised finish. Fasten it to a pole with stainless steel banding, then align the rotatable ring with the connected fitting. The specified ringbolt size is M12. Its strength and environmental resistance suit overhead cable installations. Carton and pallet packing are available.
| Product code | Size or ring bolt | Material | MBK,KN |
| YKR-00 | M12 | Hot dip galvanized steel | 8 |
Relevant evaluations include tensile loading, ageing, corrosion resistance, and temperature/humidity cycling between −40 °C and +70 °C. These checks assess mechanical integrity and resistance to outdoor exposure. Product-specific reports should be reviewed for the applicable conditions and acceptance criteria.
