ADSS Cable Suspension and Bracket Assembly ES-1500
The ES-1500 combines a suspension clamp with a pole bracket to support ADSS cables during aerial internet-network construction.
Features
- Cable locking and clamping without additional tools
- Durable UV-resistant plastic clamp with metal support bracket
- Pole mounting using stainless steel bands or 14 mm or 16 mm bolts
- Accepts round optical cables of 4.5–11 mm diameter
- Bracket incorporates an overload-release feature
- Protects cable insulation during fitting and service
- Stable outdoor performance
- Economical pricing
Application

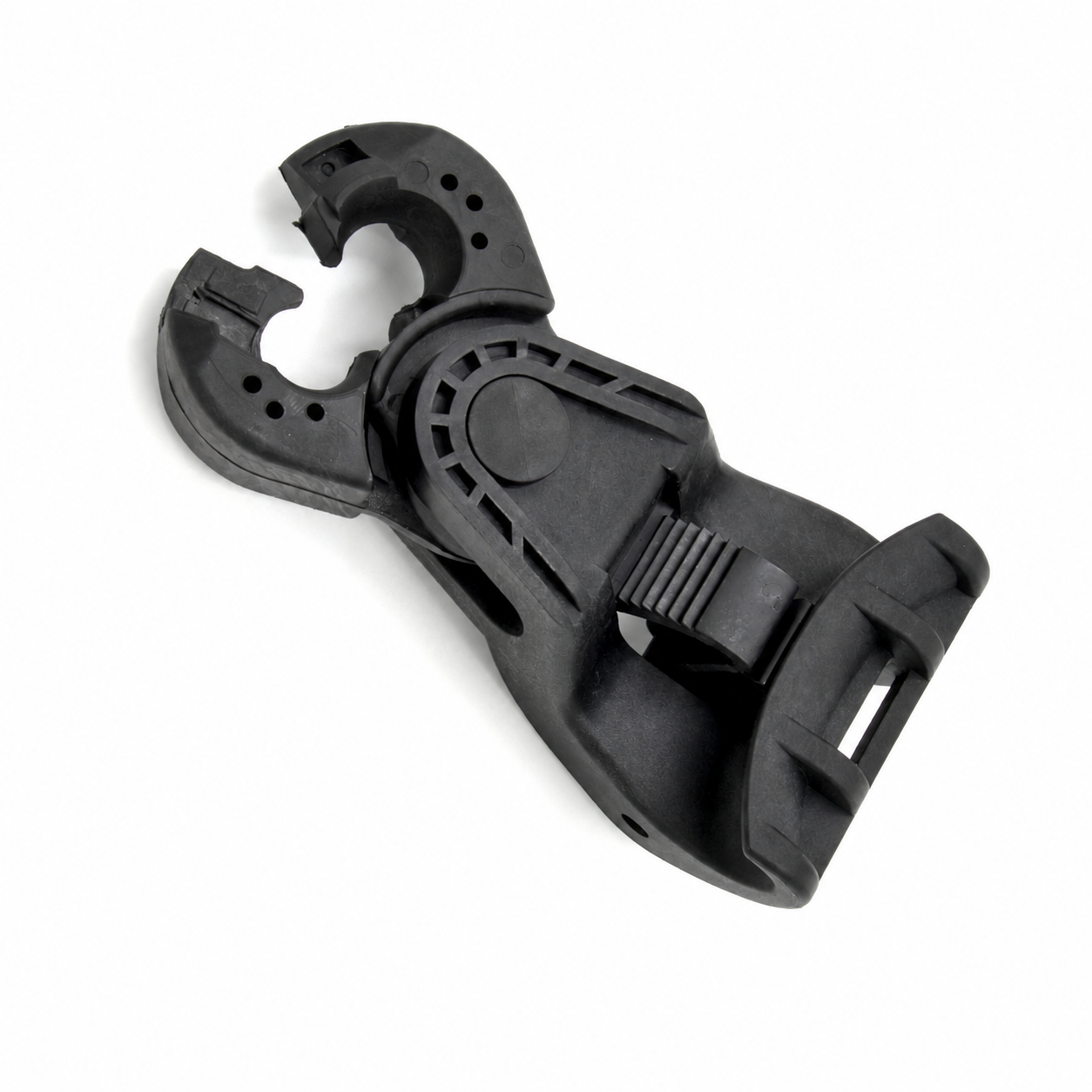

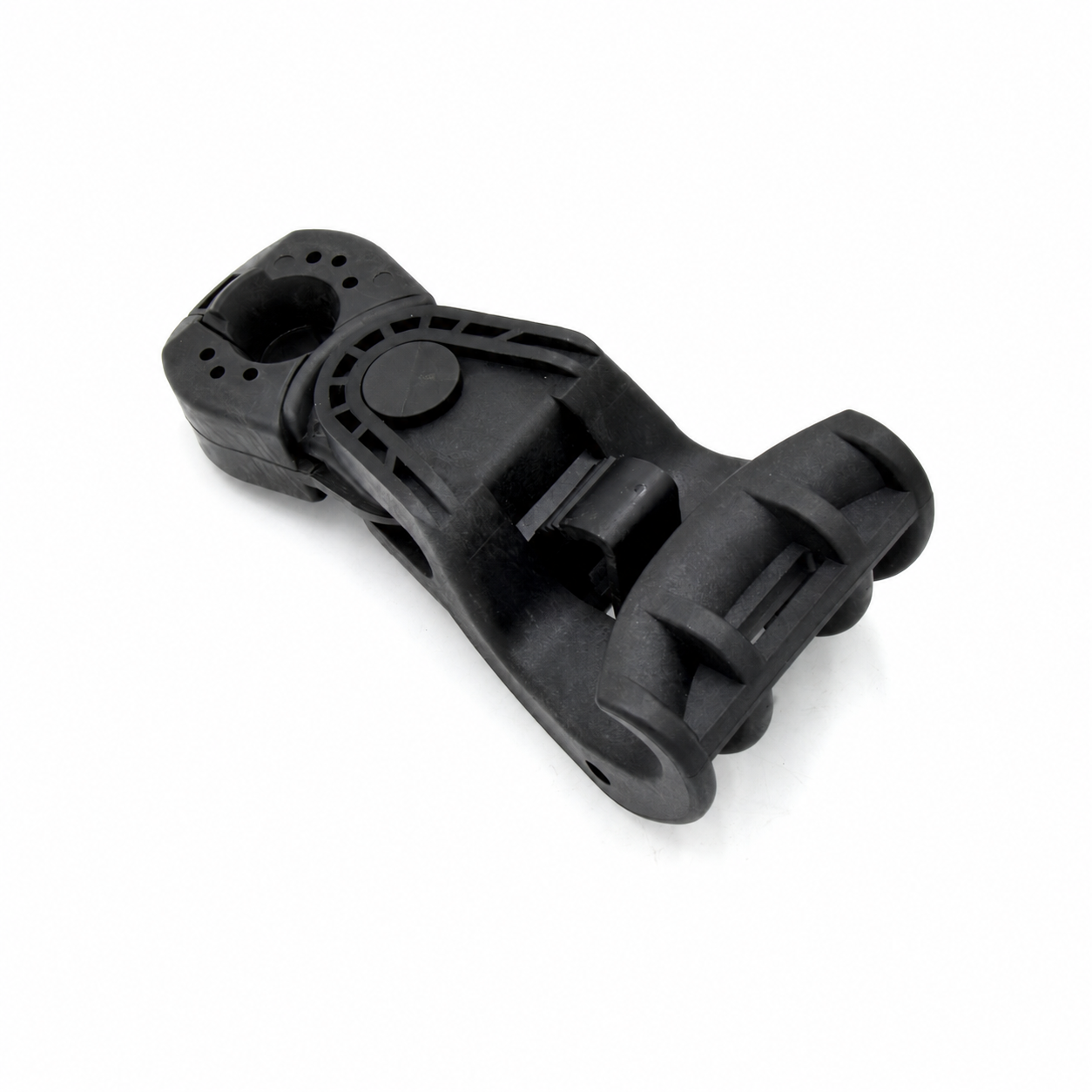

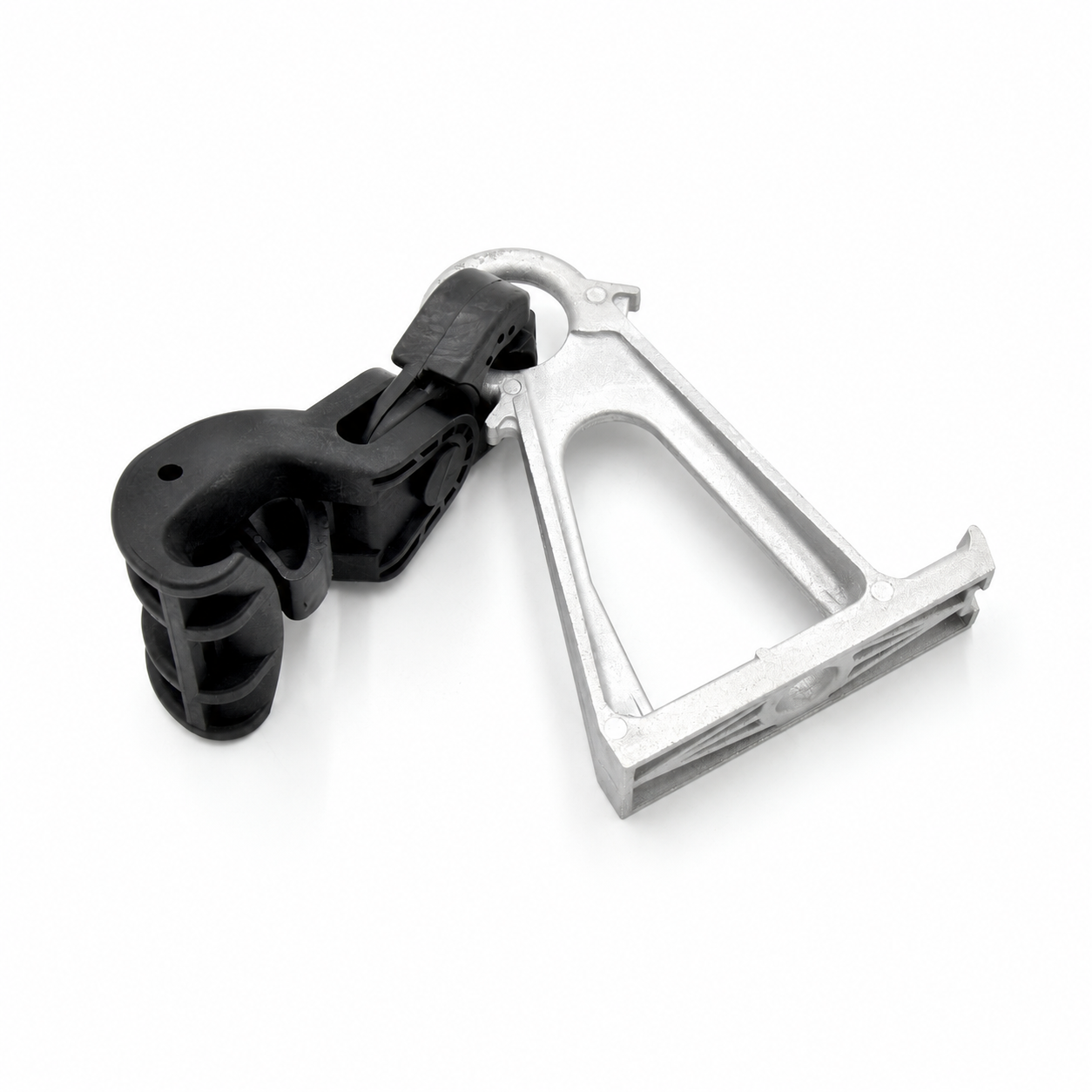

The ES-1500 assembly accommodates 4.5–11 mm ADSS cables and has a specified minimum breaking load of 8 kN. The clamp and pole bracket form a two-part support. Patterned plastic contact surfaces help retain the cable, while the UV-resistant body protects it against outdoor exposure.
The assembly supports aerial optical routes with demanding mechanical requirements while maintaining cable integrity. It can be mounted on timber, concrete or steel poles using suitable hardware. Typical uses include medium-span ADSS routes, fiber backbones, utility communications, urban and rural broadband networks, municipal telecommunications and long-term outdoor installations.
| Product code | ADSS cable size | MBL, kN | Weight. kg |
| ES-1500 | Φ4.5-11 | 8 | 0.36 |
