J-Hook Cable Support for ADSS HCT-8-12
The HCT-8-12 universal J-shaped suspension clamp supports 8–12 mm ADSS cables at intermediate poles. It is intended for access-network routes with deviations below 20°. Its profile and hot-dip galvanized steel construction improve resistance to wind loading.
Features
- Two mounting methods for straightforward installation
- Fits ADSS optical cables of 8–12 mm diameter
- Hot-dip galvanized steel with a UV-resistant cable insert
- Corrosion-resistant construction for stable service
- Captive screw arrangement
- Factory-direct supply
Application

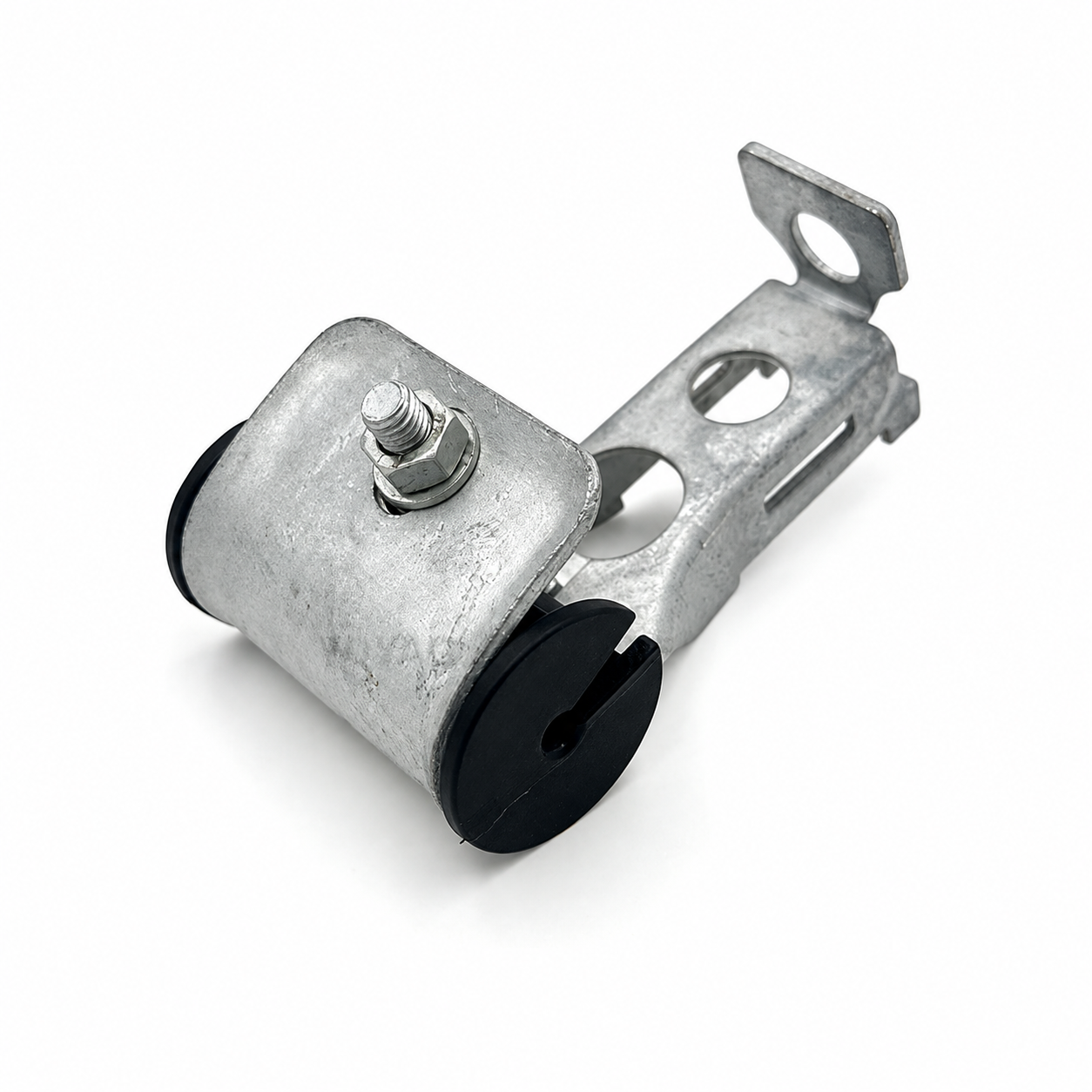

The HCT-8-12 comprises a hot-dip galvanized steel J-hook, a UV-resistant TPE cable insert and coated steel nuts, bolts and washers. The patterned contact area increases grip to resist loosening and cable release. Its specified minimum breaking load is 6 kN.

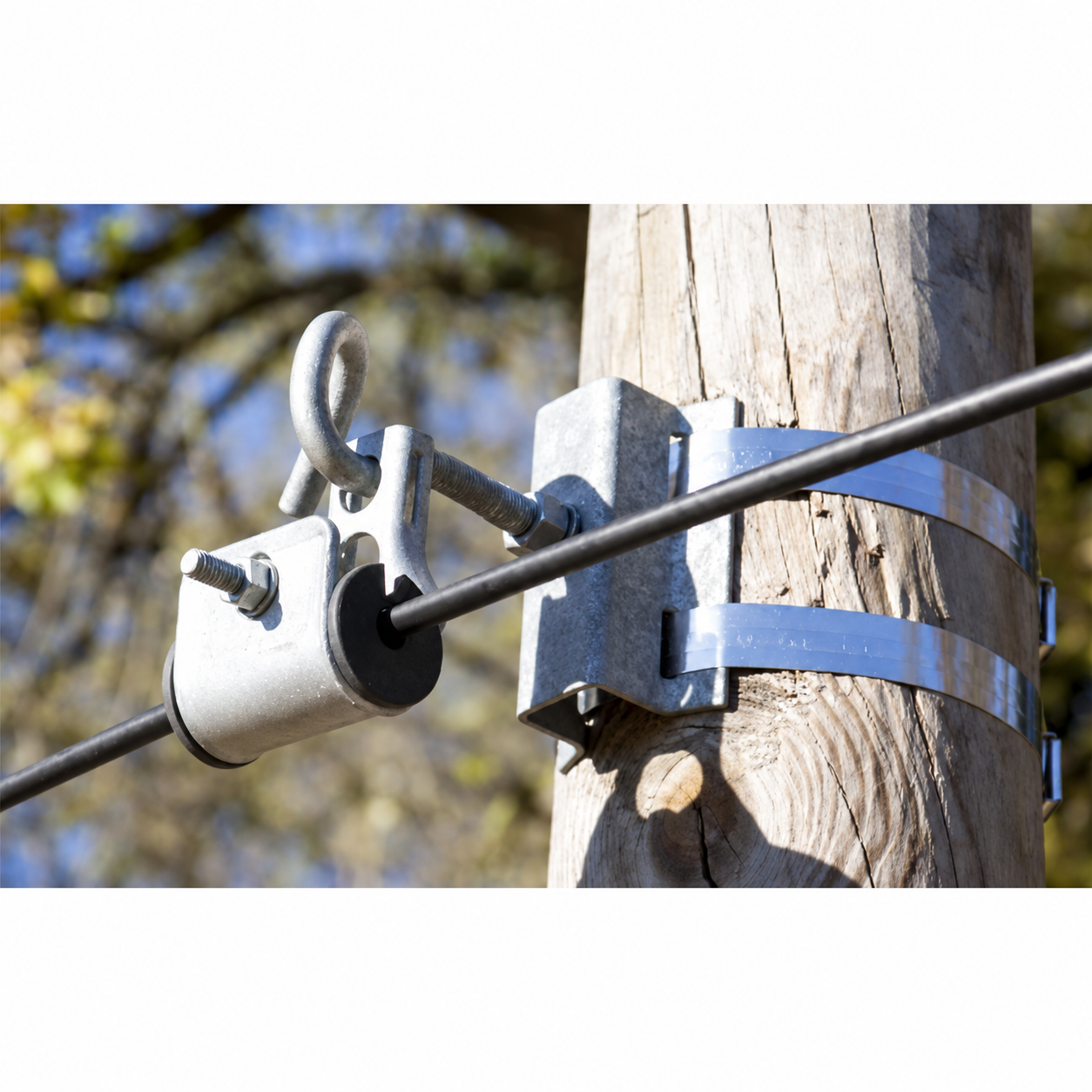

It supports ADSS cables on backbone and distribution routes, FTTH access projects and power-utility communications networks. The design accommodates vibration and cable movement caused by wind and temperature changes, helping protect cable integrity and reduce maintenance. The galvanized steel and UV-resistant insert provide resistance to corrosion and outdoor exposure, including humid and coastal conditions. Contact JKTE for product and installation details.
| Model NO. | Cable (mm) | MBL,KN | Material |
| HCT-8-12 | 8-12 | 6 | hot dip galvanized steel, UV resistant plastic |
