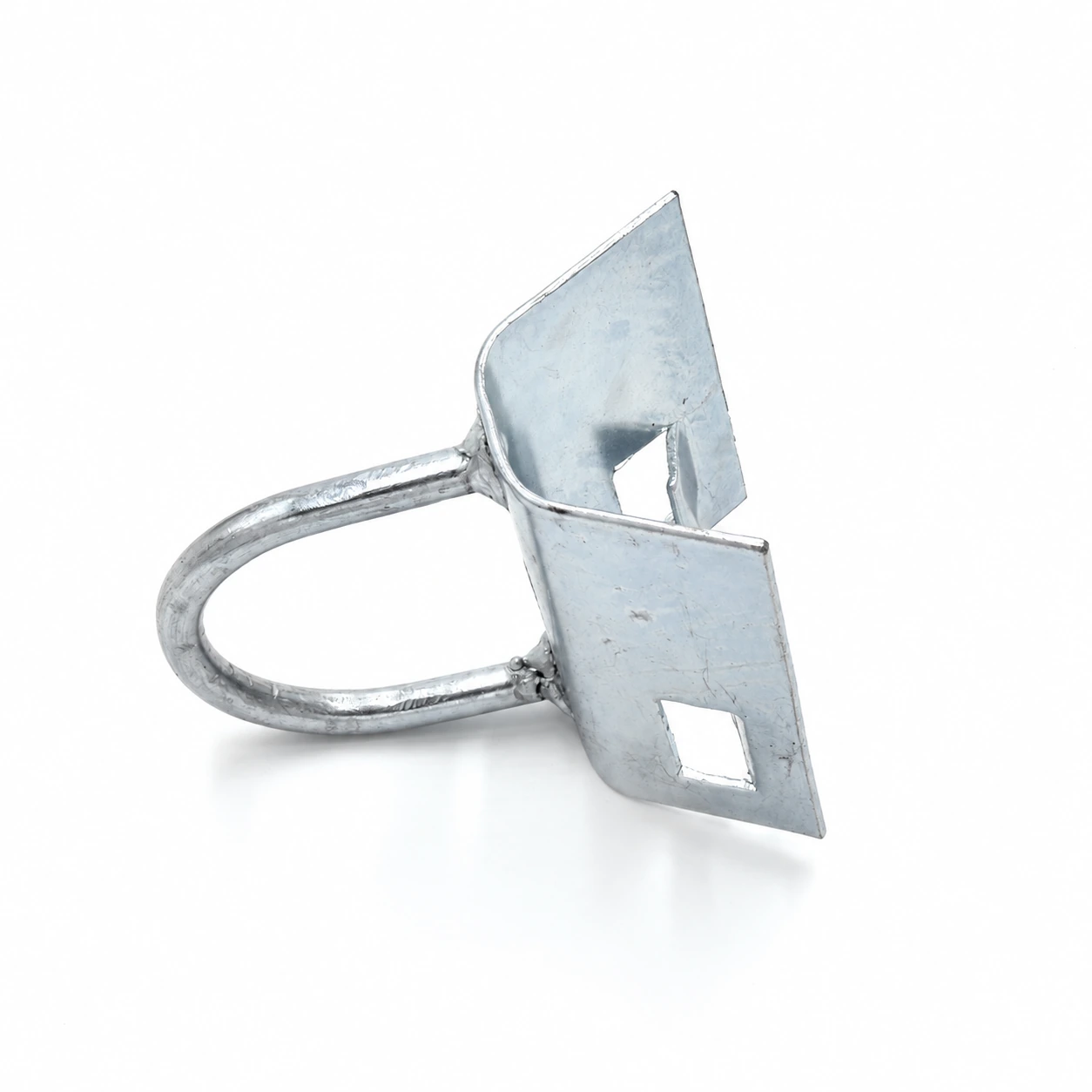

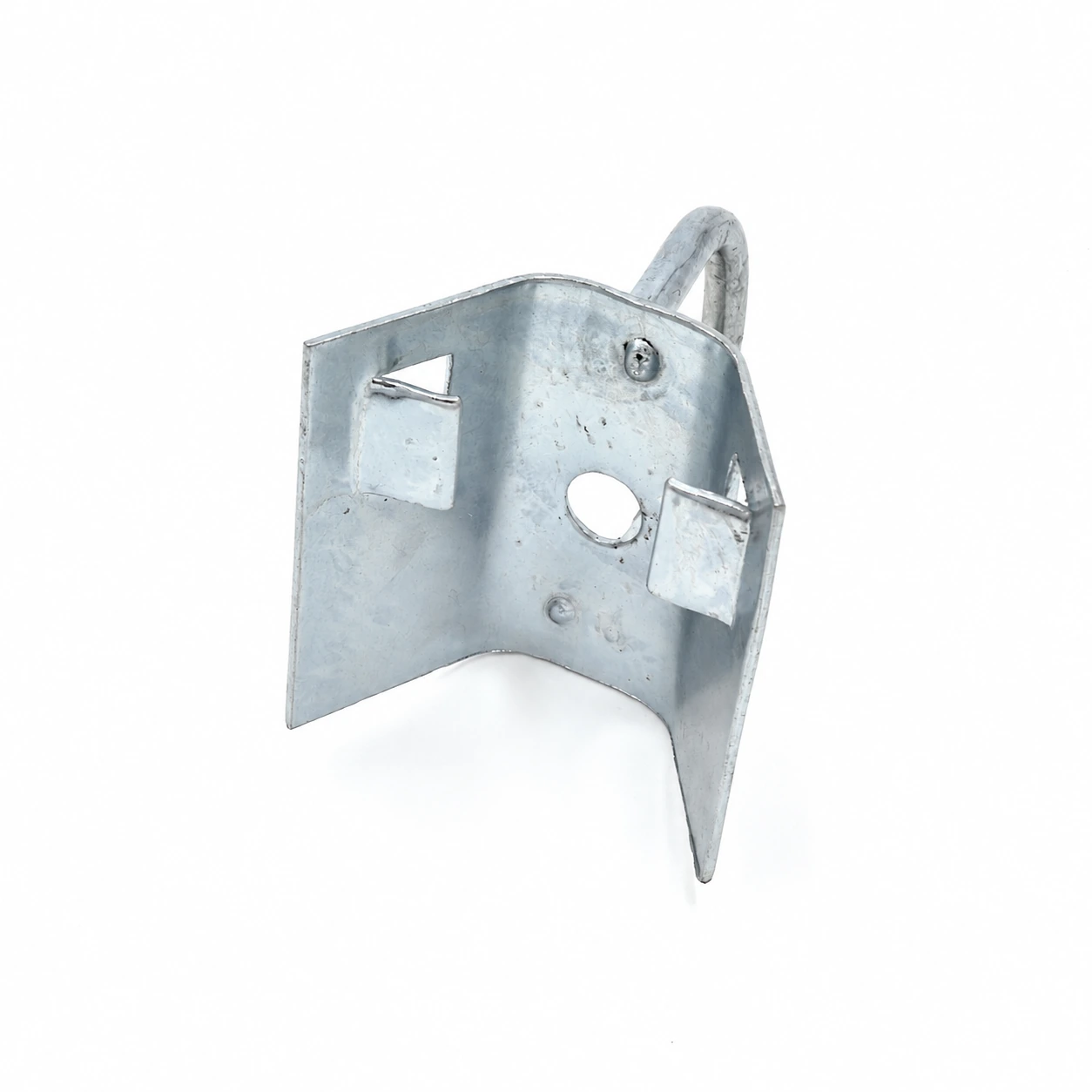

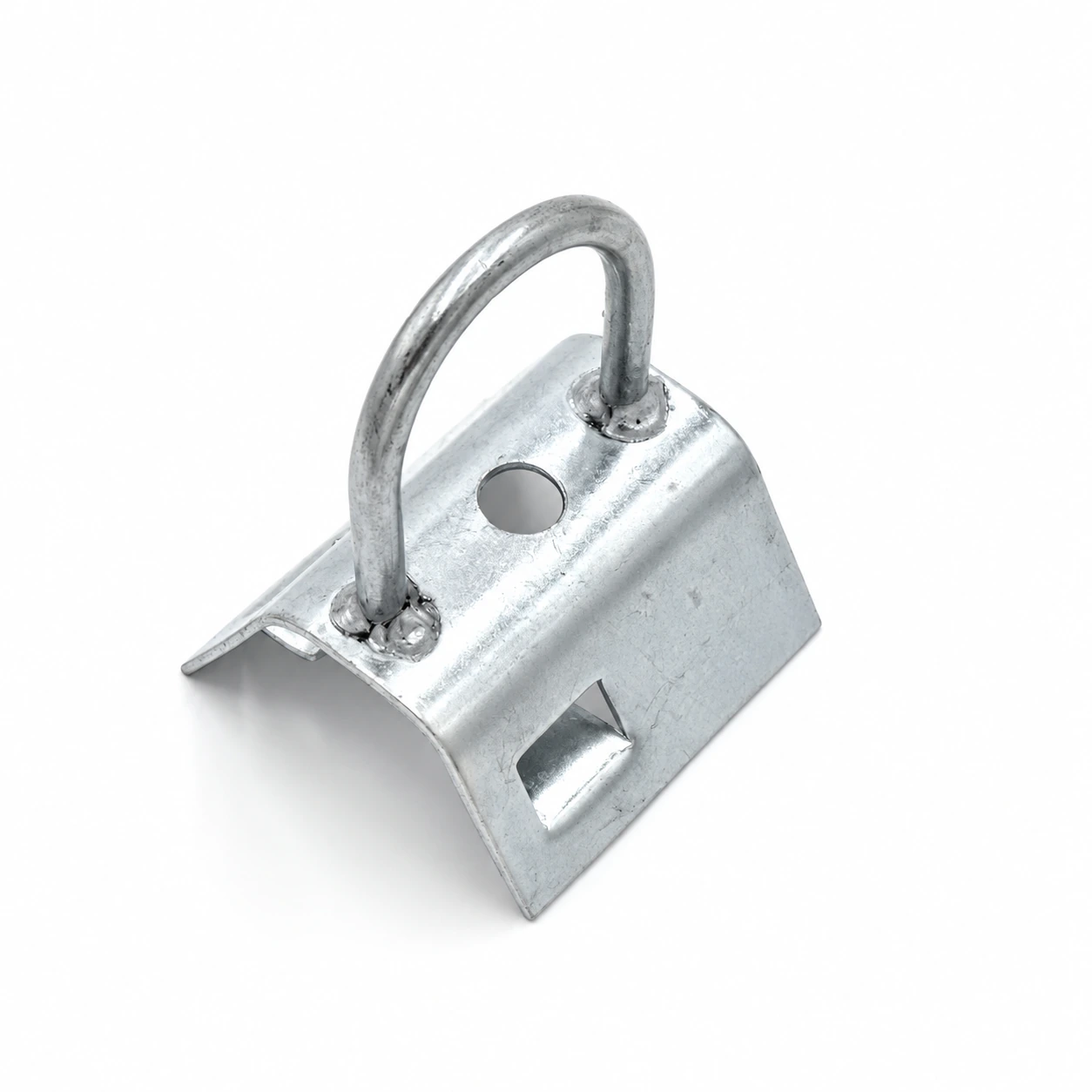

ADSS Tension and Suspension Bracket YKN-M
The YKN-M bracket supports tension or suspension fittings for ADSS cables, including wire clamps and preformed guy grips, in outdoor overhead ADSS and FTTH installations.
Features
- Practical design for convenient handling
- Galvanised steel construction for extended service
- Pole mounting with stainless steel banding and buckles
- Works with compatible suspension clamps
- Suitable load support for ADSS cables and suspension guy grips
- Weather-resistant construction at an economical cost
Application
For supporting ADSS cables on poles or towers in outdoor overhead systems with route deviation angles below 25°. Used with suitable suspension clamps and preformed guy grips, the bracket maintains cable position and distributes mechanical stress evenly. Applications include FTTH, backbone and metropolitan networks, and industrial communication routes exposed to demanding weather.

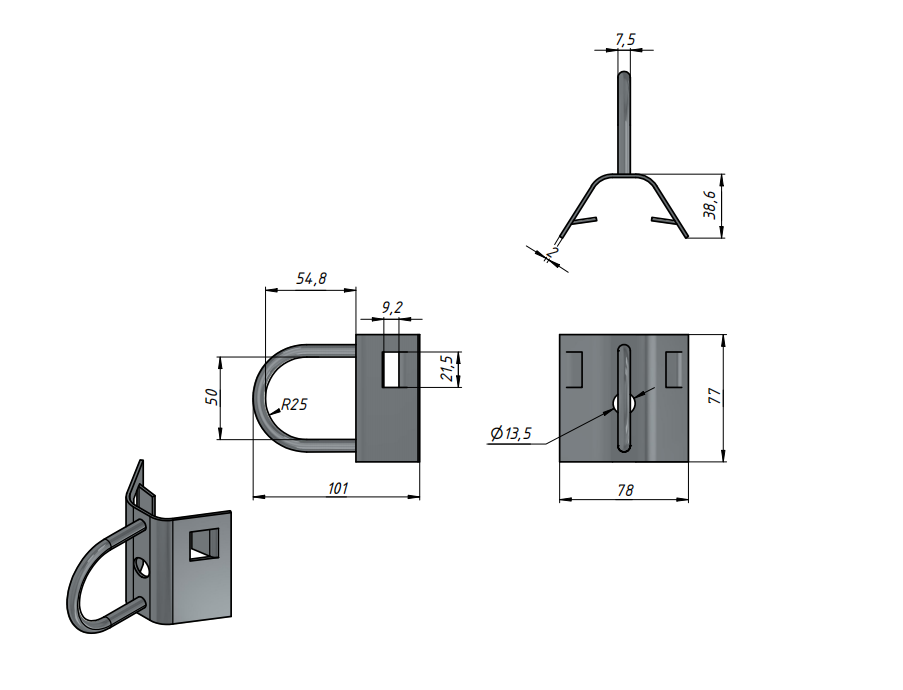

| Product Code | Material | Minimum breaking load (MBL), KN |
| YKN-M | Galvinized steel | 4 |
Salt-spray chamber testing assesses corrosion resistance of complete products and metal components under controlled humidity, temperature and aggressive exposure. Sodium chloride simulates the corrosive conditions found near the sea. Automated chamber operation helps reduce operator-related variation and improve repeatability.
This evaluation applies to FTTH drop-wire clamps, mounting brackets, stainless steel bands and buckles, and associated metal fittings. Relevant components include clamp bail wires and housings, as well as metal parts used in optical splice closures.
Corrosive exposure, temperature, relative humidity and test duration are selected according to the applicable procedure. The source technical description references IEC 61284 for overhead optical cables and their accessories. Product-specific reports are required to establish the actual test conditions and results.
