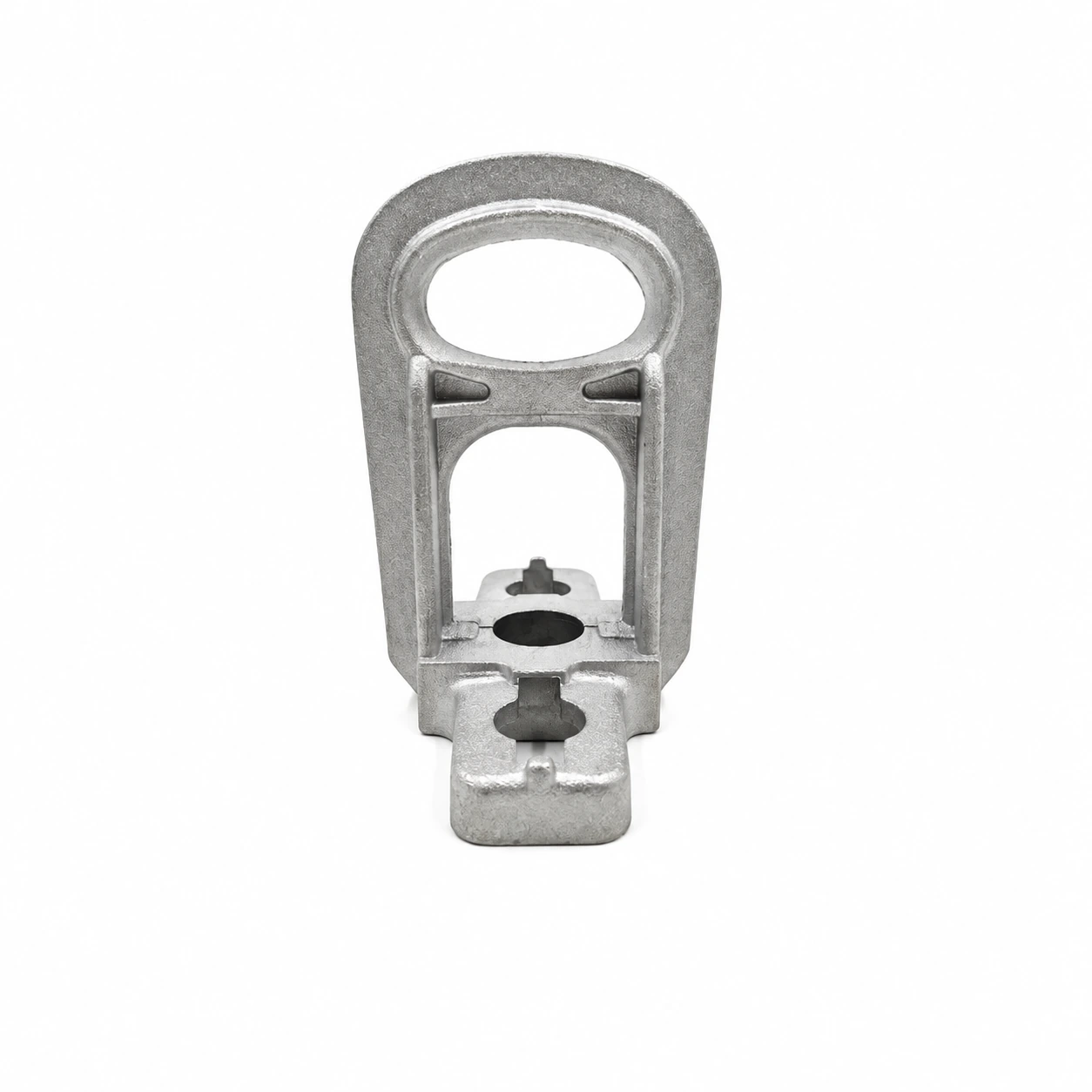

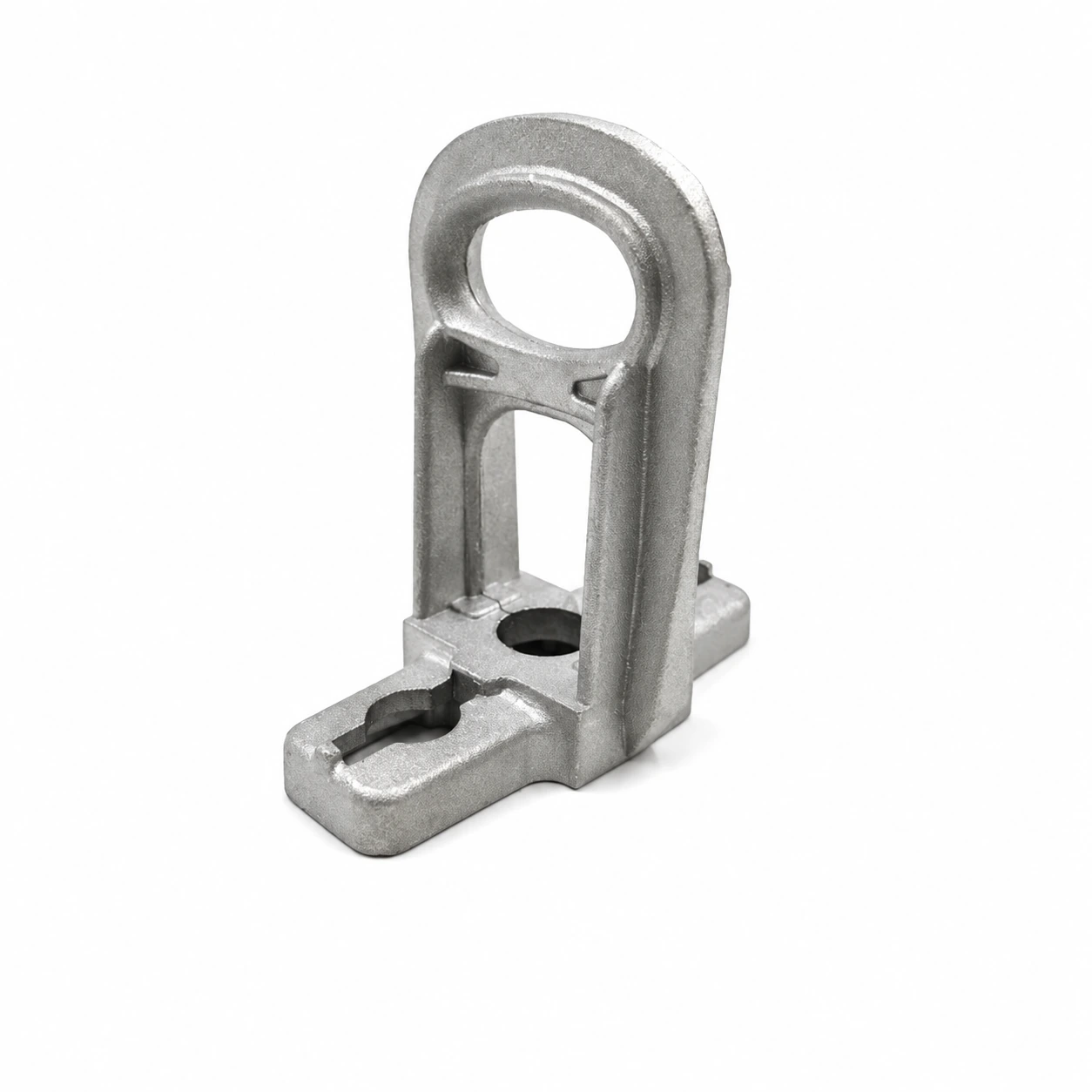

Aerial Cable Anchoring Bracket CA-1400
The CA-1400 aerial bracket anchors ADSS and figure-8 tension clamps in overhead telecommunications networks.
Features
- Quick, straightforward installation
- Corrosion-resistant aluminium alloy construction
- Suitable for wooden, metal and concrete poles
- Accepts bolts or stainless steel bands
- High mechanical strength and resistance to outdoor exposure
- Specified span range: 70–200 m; minimum breaking load: 15 kN
- Economically priced
Application

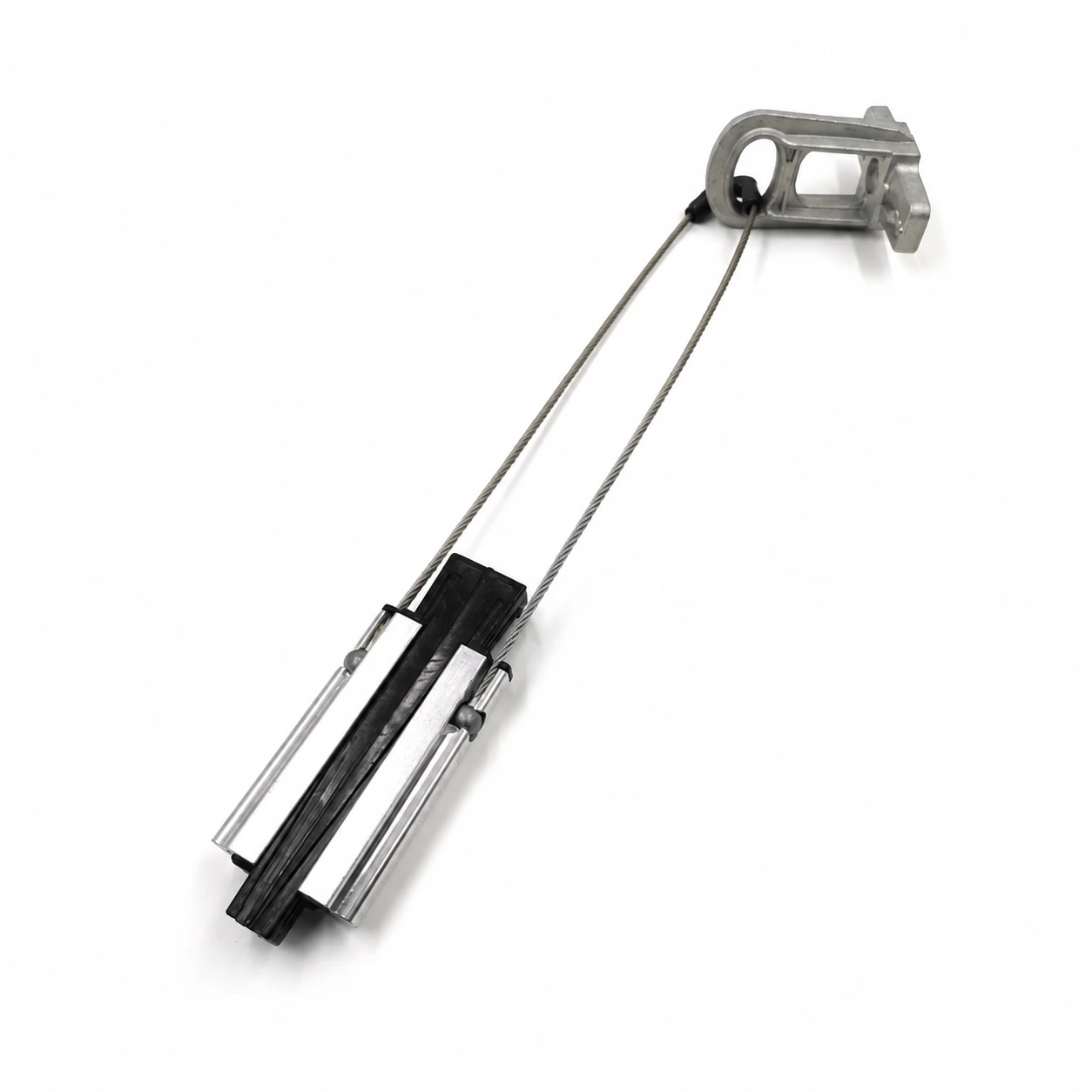

The high-strength die-cast aluminium alloy body resists corrosion in outdoor service. It can be used with compatible ADSS anchoring clamps and low-voltage aerial bundled cable clamps, as well as the figure-8 tension clamps described for this product. Attach it to a pole using 14 or 16 mm bolts, or stainless steel banding 20 mm wide.
| Product code | MBL, kN | Weight. kg | Material |
| CA-1400 | 15 | 0.175 | Aluminum alloy |
Mechanical tensile testing, temperature/humidity cycling and corrosion testing assess load-bearing performance and resistance to outdoor exposure. Consult the applicable product report for test conditions and results.
