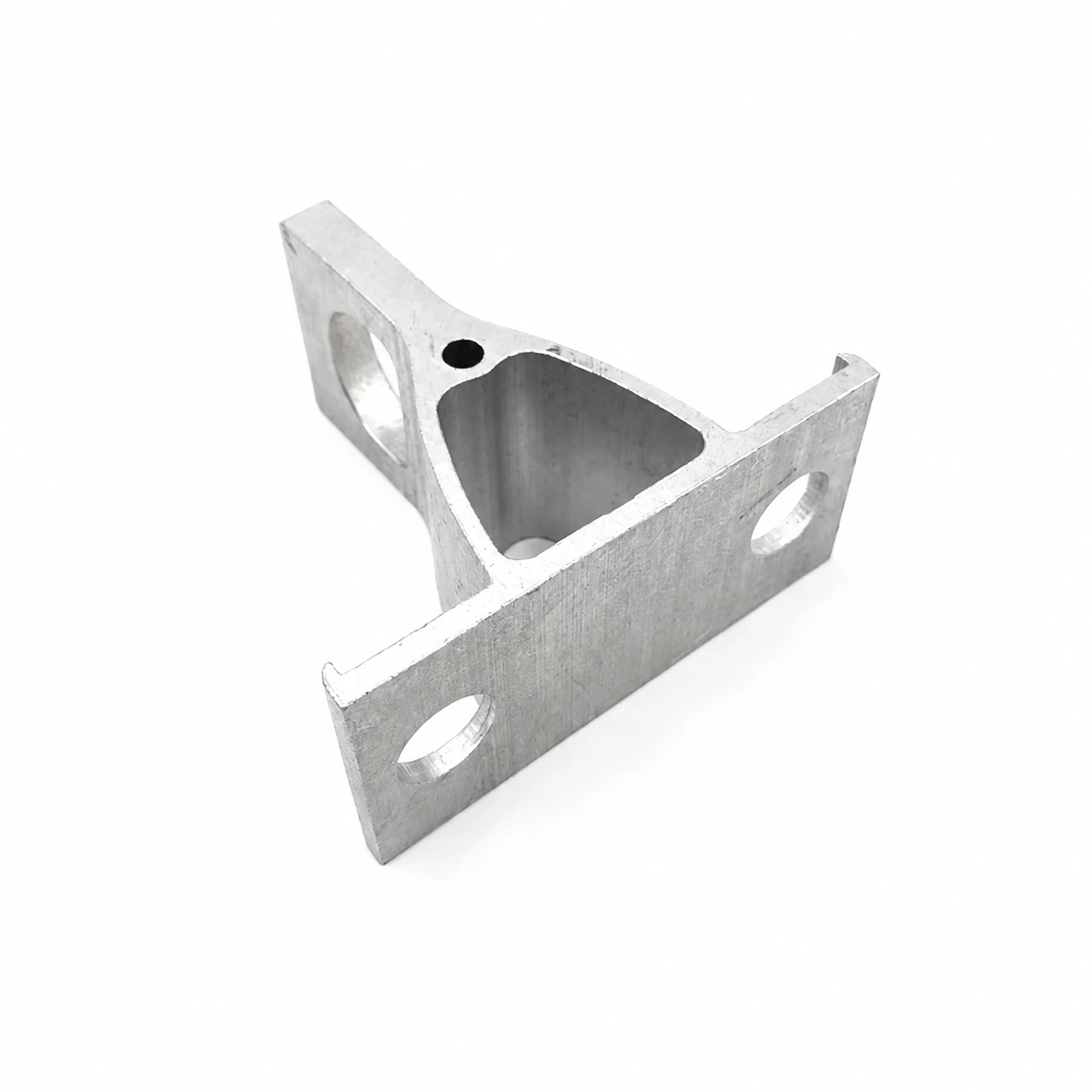

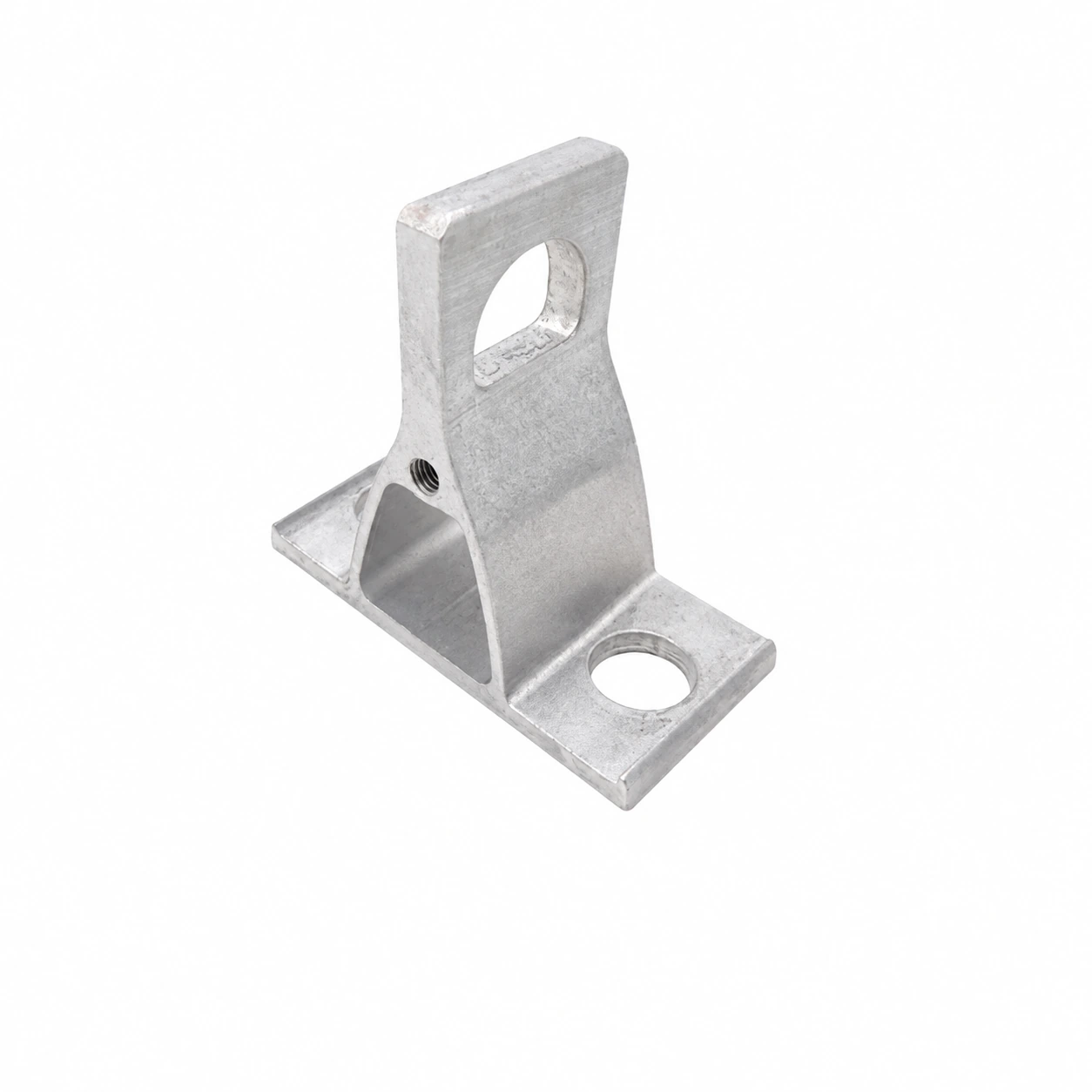

Fibre Cable Tension Bracket CA-1400.1

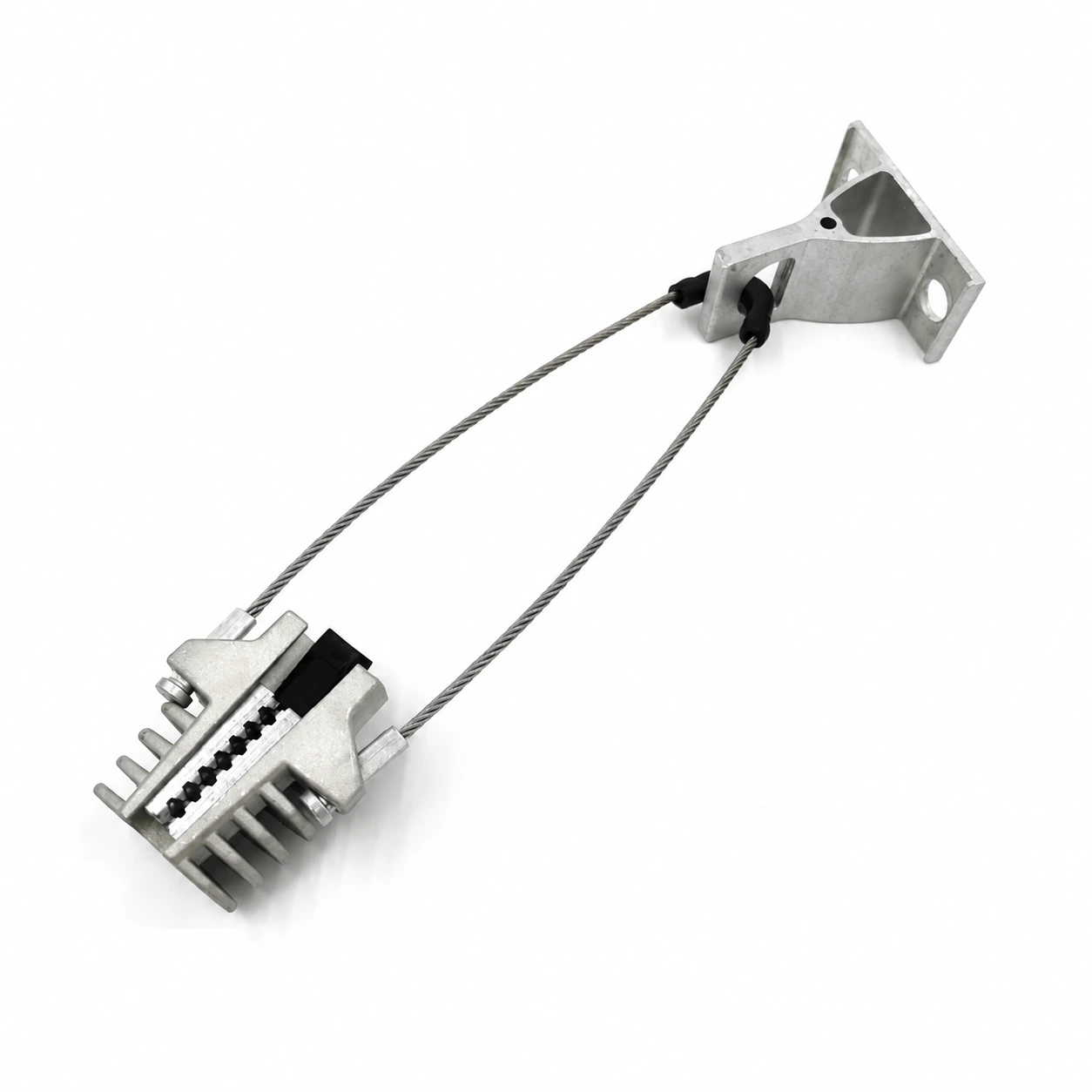

The CA-1400.1 tension bracket anchors ADSS or figure-8 cable clamps in outdoor FTTH networks, providing a supporting connection between the cable fitting and its mounting structure.
Features
- Simple installation helps reduce fitting costs
- Durable, corrosion-resistant aluminium alloy body
- Mounting with bolts or stainless steel bands
- High strength and stable outdoor performance
- Specified span range: 70–200 m; minimum breaking load: 15 kN
- Cost-effective mounting solution
Application
The bracket is die-cast from high-strength aluminium alloy, giving it corrosion resistance and outdoor durability. Its mechanical capacity supports compatible ADSS or figure-8 anchoring clamps under the specified loads over an extended service life. Mount it on a pole or wall using suitable bolts or stainless steel banding.
| Product code | MBL, kN | Weight. kg | Material |
| CA-1400.1 | 15 | 0.11 | Aluminum alloy |
Relevant evaluations include tensile loading, temperature/humidity cycling, ageing and corrosion resistance. Together, these methods assess mechanical integrity and durability under outdoor exposure. Consult product-specific reports for the test conditions and acceptance criteria.
