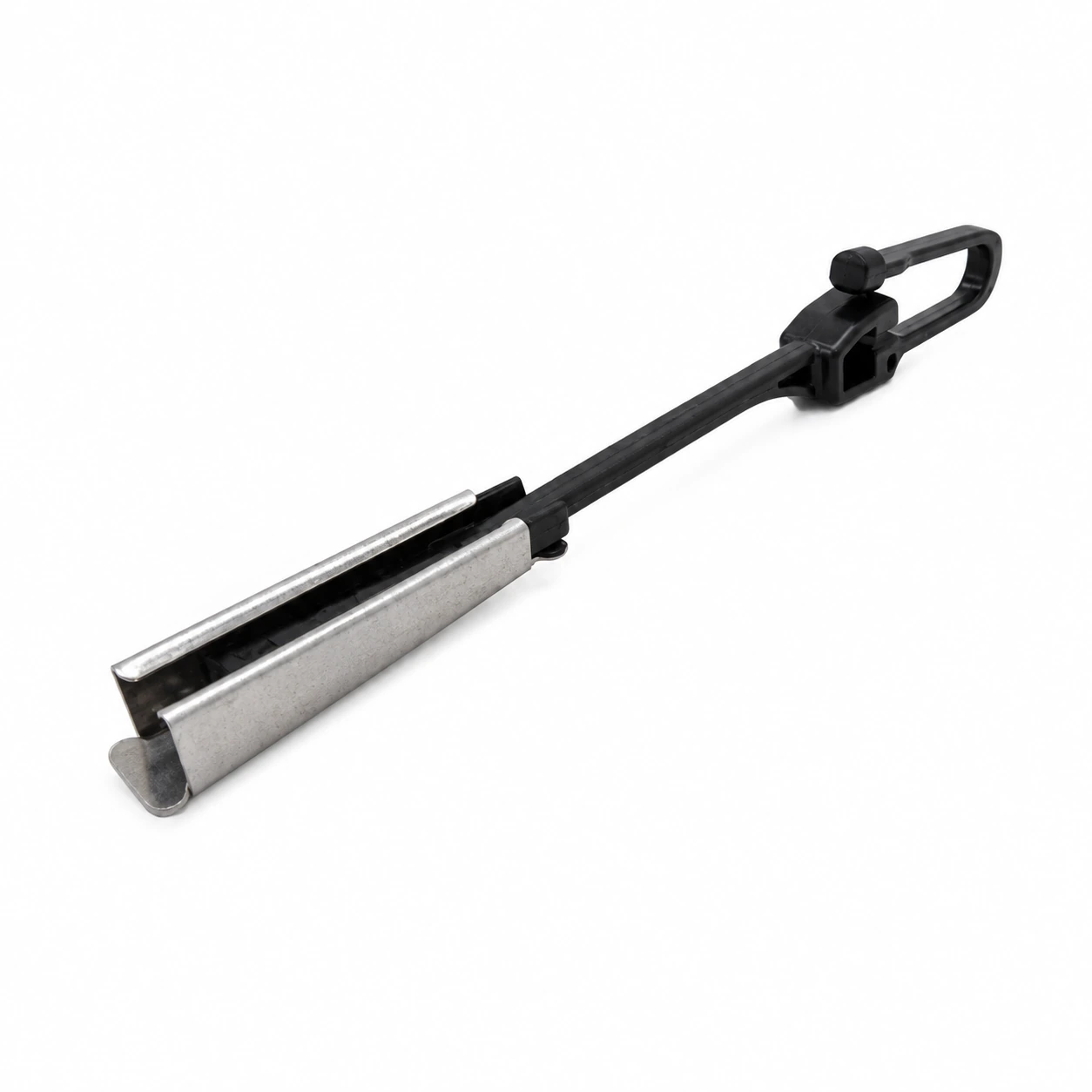

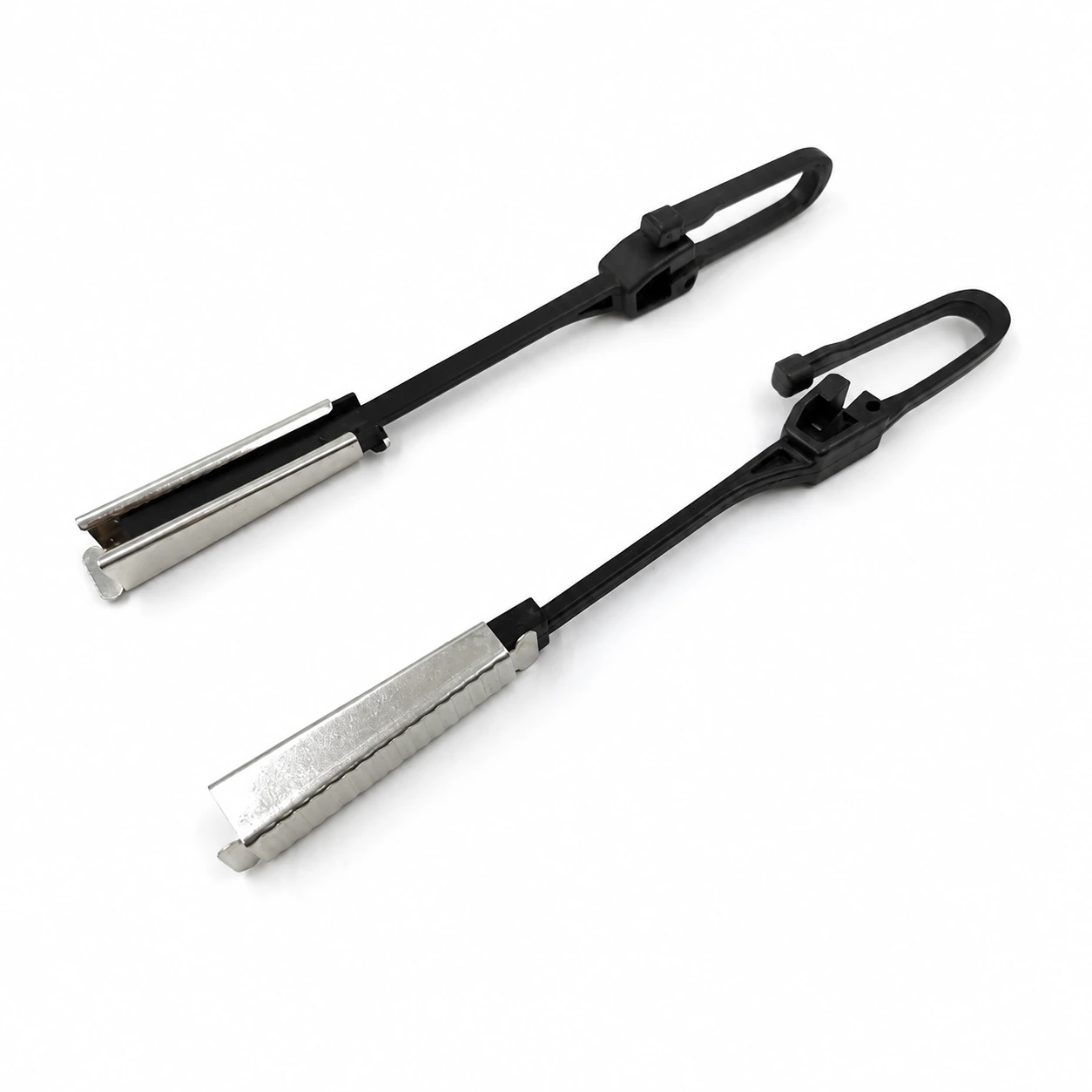

Wedge-Type Flat Drop Cable Anchor ODWAC-12Y
ODWAC-12Y tensions and supports flat optical drop cables at terminal and intermediate positions in outdoor FTTH networks.
Features

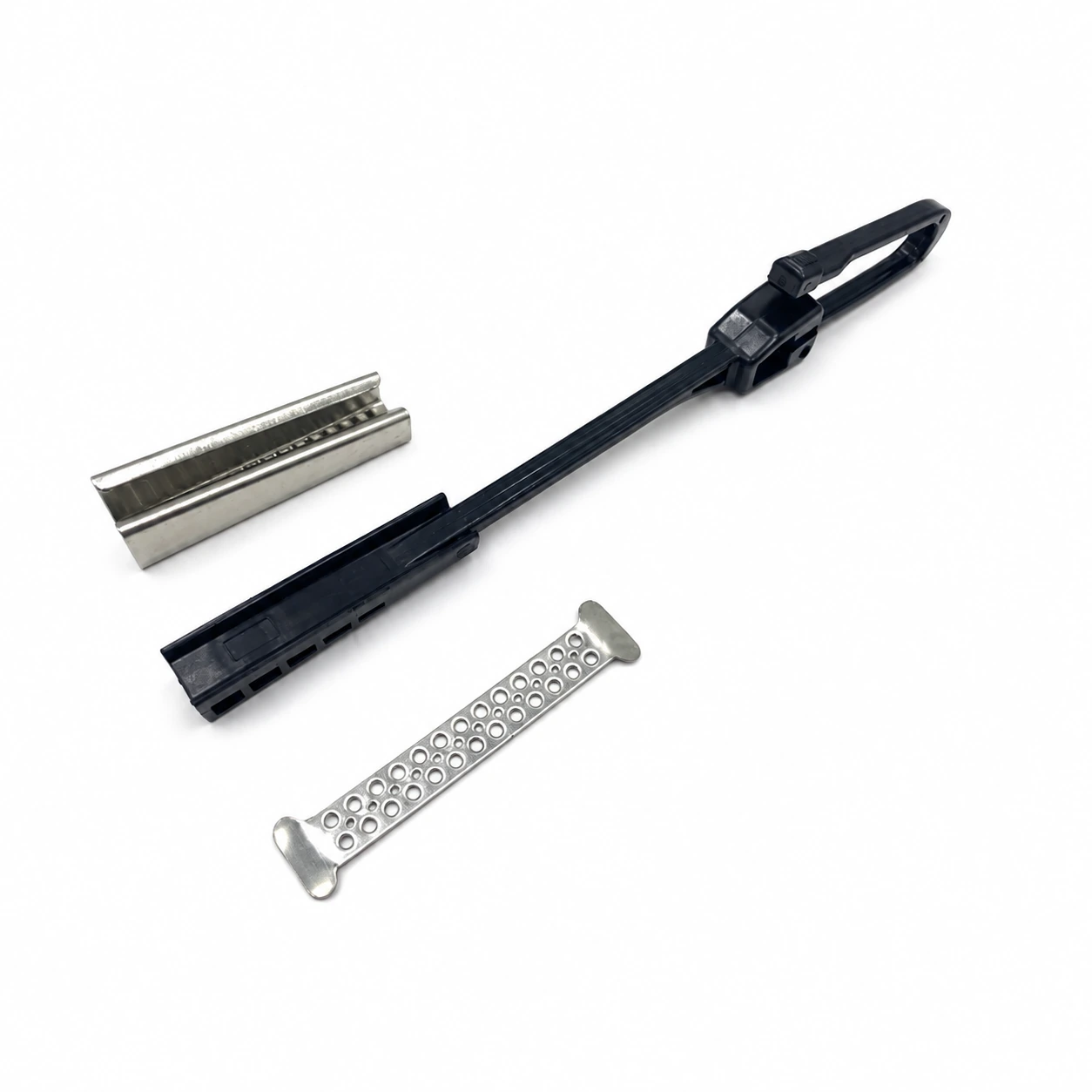

- Self-seating wedge secures the cable
- Hand installation requires no special tools
- Bail retention reduces accidental disengagement
- Stainless steel and UV-resistant thermoplastic construction
- Stable outdoor service
- Cost-effective installation
Application
This clamp accommodates flat cables below 4 mm high and 8 mm wide, with a 1 kN minimum breaking load and 30–50 m span range. Its wedge grips without damaging the sheath. Typical mounting locations include poles, building facades and subscriber entry points in urban and rural broadband networks.
| Product code | Flat cable size (h×w) mm | Material | MBL,KN |
| ODWAC-12Y | <4×<8 | UV resistant plastic and stainless steel | 1 |
General test method
Ultimate tensile testing determines how much mechanical tension a component can withstand. Opposing pulling forces are increased until the specimen deforms or fails. Recorded properties can include elongation, yield point and ultimate tensile strength.
This method applies to cable suspension and tension fittings, preformed grips, ADSS dead ends, stainless steel banding and FTTH drop clamps. Endurance programmes may combine tensile loading, temperature changes and oscillating stresses under conditions selected with reference to IEC 61284. Such evaluation supports product qualification and production quality control. This is a description of a test method, not evidence of completed testing for an individual JKTE model.
