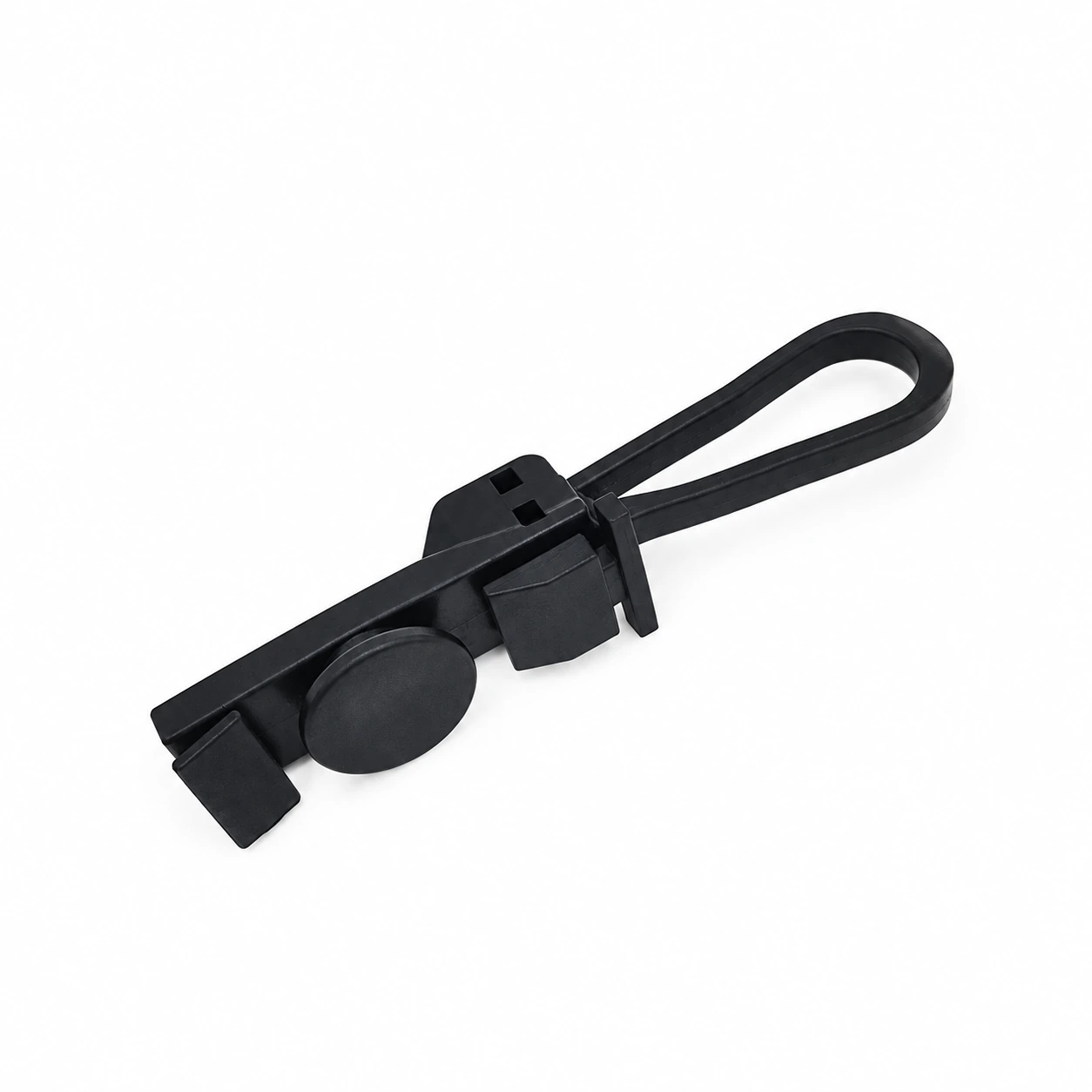

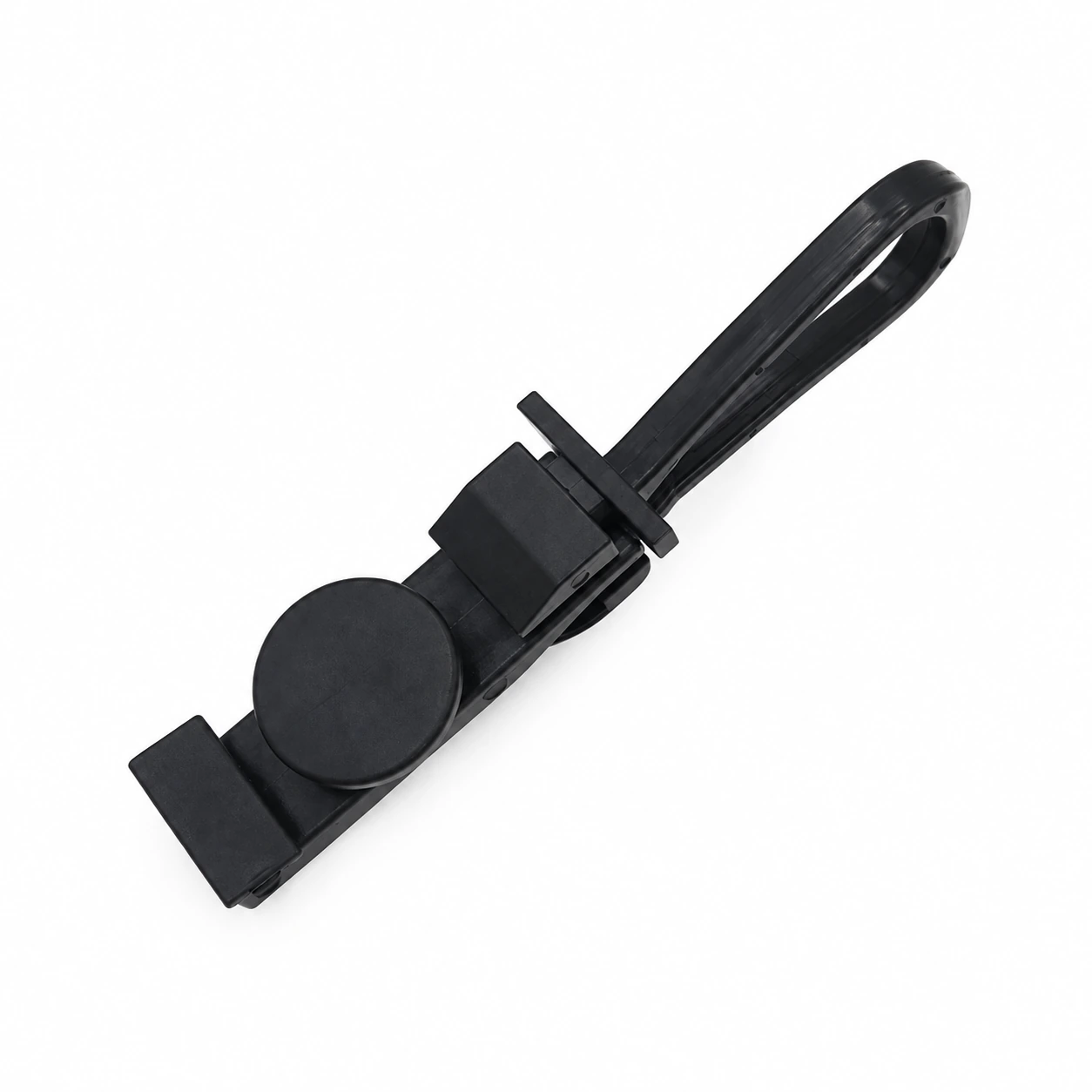

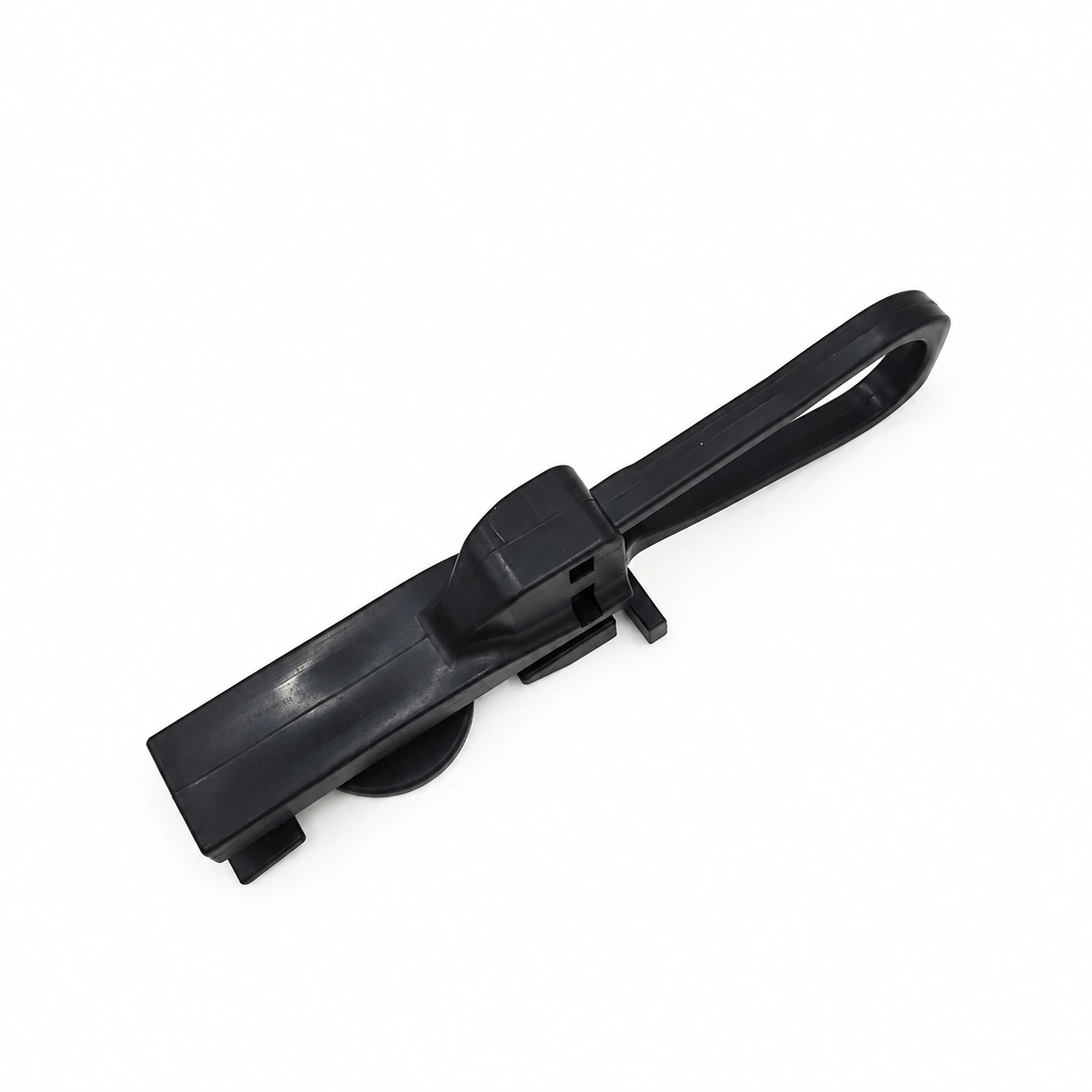

P-Type FTTH Cable Anchor SO-TYPEJKT
SO-TYPEJKT anchors and supports flat fiber drop cables at dead ends in outdoor subscriber networks.
Features
- Open attachment loop simplifies fitting
- Suitable for multiple connections
- Accommodates Figure-8 drop cable with a messenger
- Installed by hand
- Engineering polymer suitable for outdoor exposure
- Economical fiber access hardware
Application
The specified flat cable size is 2.0 × 5.0 mm with a steel wire or messenger; the stated span range is 30–70 m and minimum breaking load is 0.3 kN. Use this clamp on walls, poles and building structures to organize cable routes, restrain movement and reduce mechanical stress. Typical applications include subscriber connections and multi-dwelling buildings.
| Product code | Flat cable size mm | Material | MBL,KN |
| SO-TYPEJKT | 2.0*5.0 | UV resistant plastic | 0.3 |
General test method
Ultimate tensile testing determines how much mechanical tension a component can withstand. Opposing pulling forces are increased until the specimen deforms or fails. Recorded properties can include elongation, yield point and ultimate tensile strength.
This method applies to cable suspension and tension fittings, preformed grips, ADSS dead ends, stainless steel banding and FTTH drop clamps. Endurance programmes may combine tensile loading, temperature changes and oscillating stresses under conditions selected with reference to IEC 61284. Such evaluation supports product qualification and production quality control. This is a description of a test method, not evidence of completed testing for an individual JKTE model.
