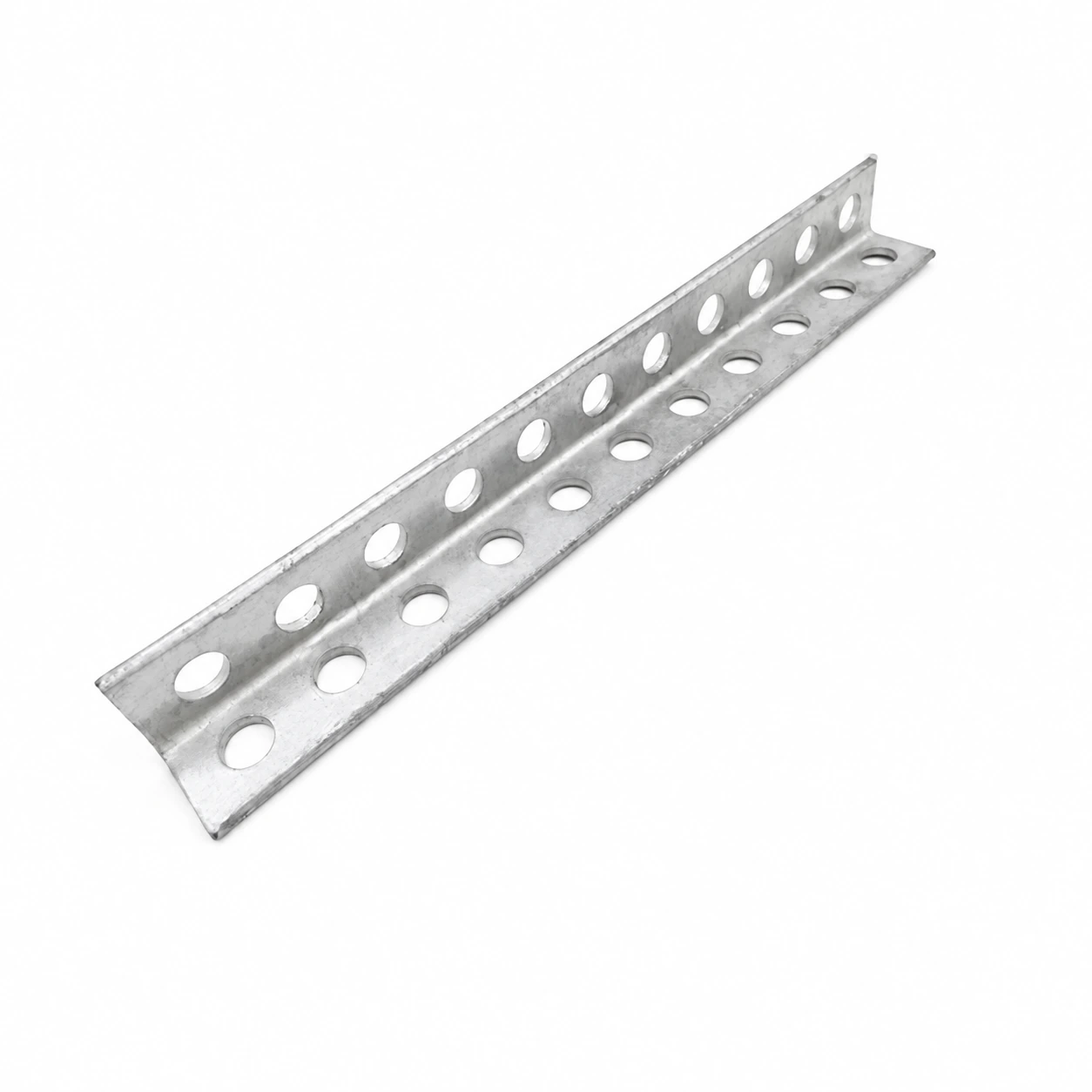

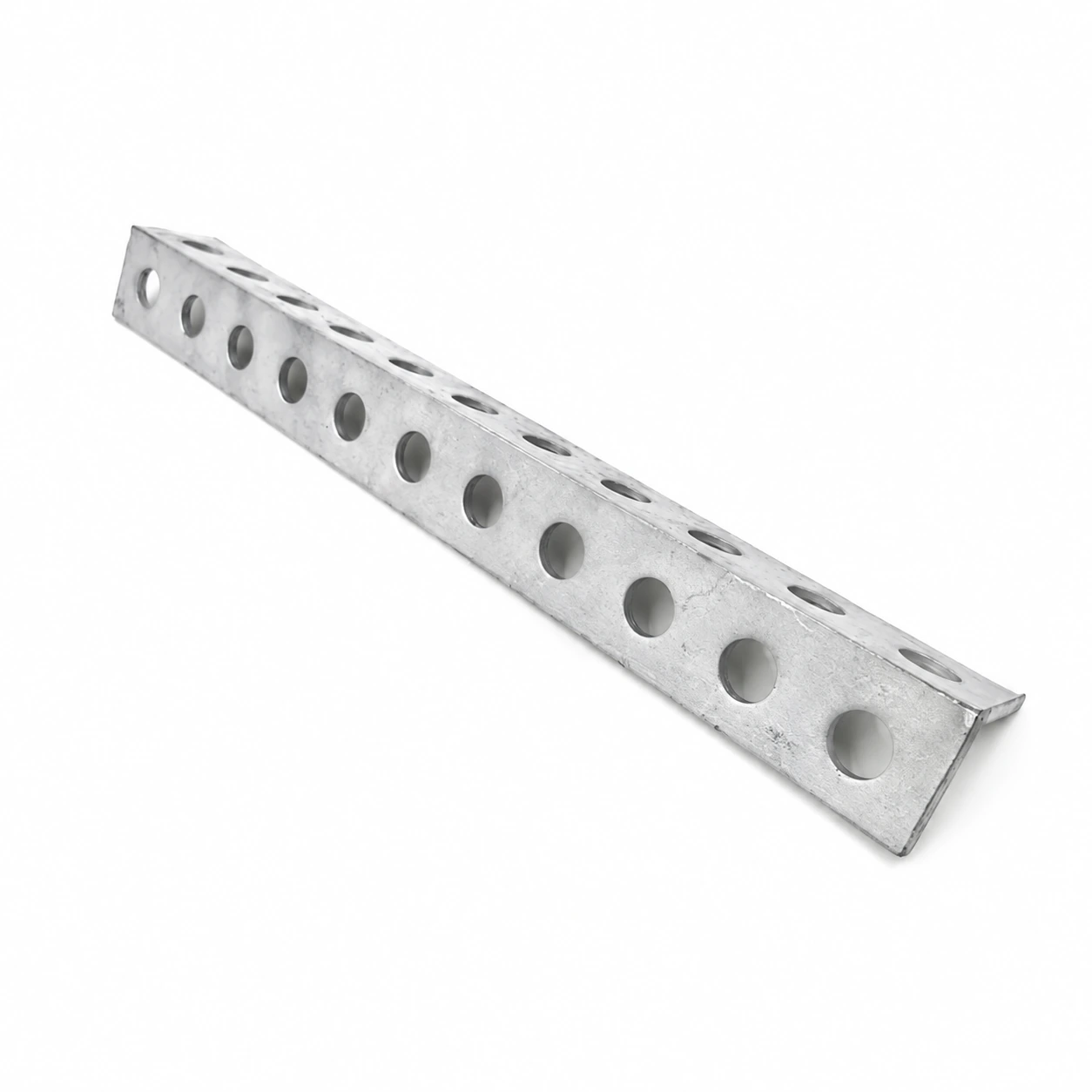

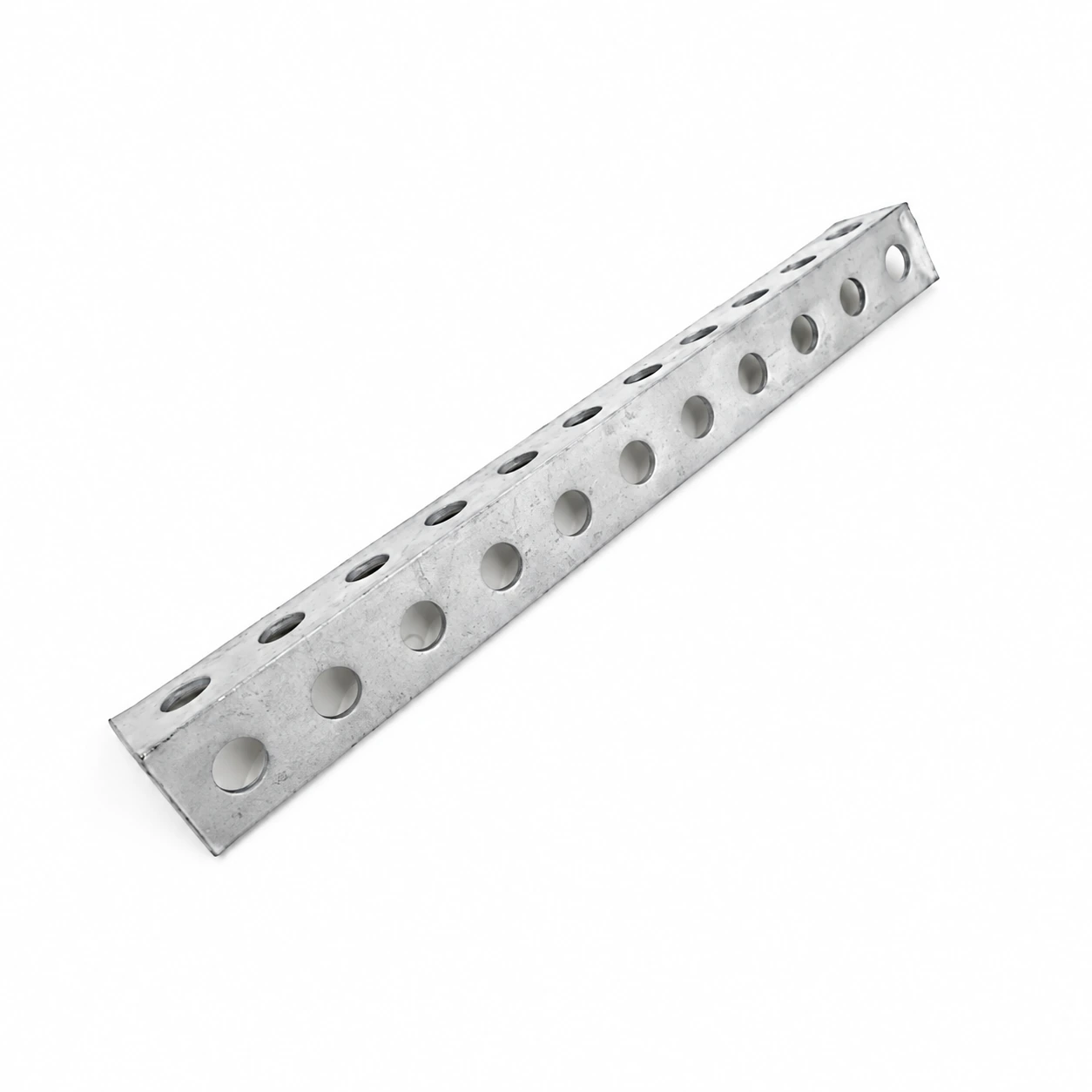

FTTH Pole Crossarm YK-41×400
The YK-41×400 galvanised crossarm supports up to 11 parallel aerial distribution cables or drop wires on wooden, metal or concrete poles during outdoor FTTH construction.
Features
- Durable hot-dip-galvanised steel construction
- Combines with a UPB bracket on wooden, metal or concrete poles
- Smooth edges for safer handling
- Specified attachment-hole diameter: 17 mm
- High mechanical strength and environmental durability
- Specified span range: 30–70 m; minimum breaking load: 15 kN
- Economically priced
Application
The crossarm is made from high-strength carbon steel with a hot-dip-galvanised finish for outdoor durability. Smoothly finished edges improve handling during installation. It is normally assembled with a UPB pole bracket and attached to a wooden, metal or concrete pole using stainless steel banding or a pole bolt. The specified physical size remains 42 × 42 × 400 mm; the changed product code does not change these dimensions.
| Code | MBL, kN | Material | Dimension,mm |
| YK-41 | 15 | Hot dip galvanized steel | 42*42*400 |
Tensile-load and corrosion-resistance evaluations assess the fitting’s mechanical capacity and suitability for outdoor exposure. Confirm test conditions and results against the applicable product report.
