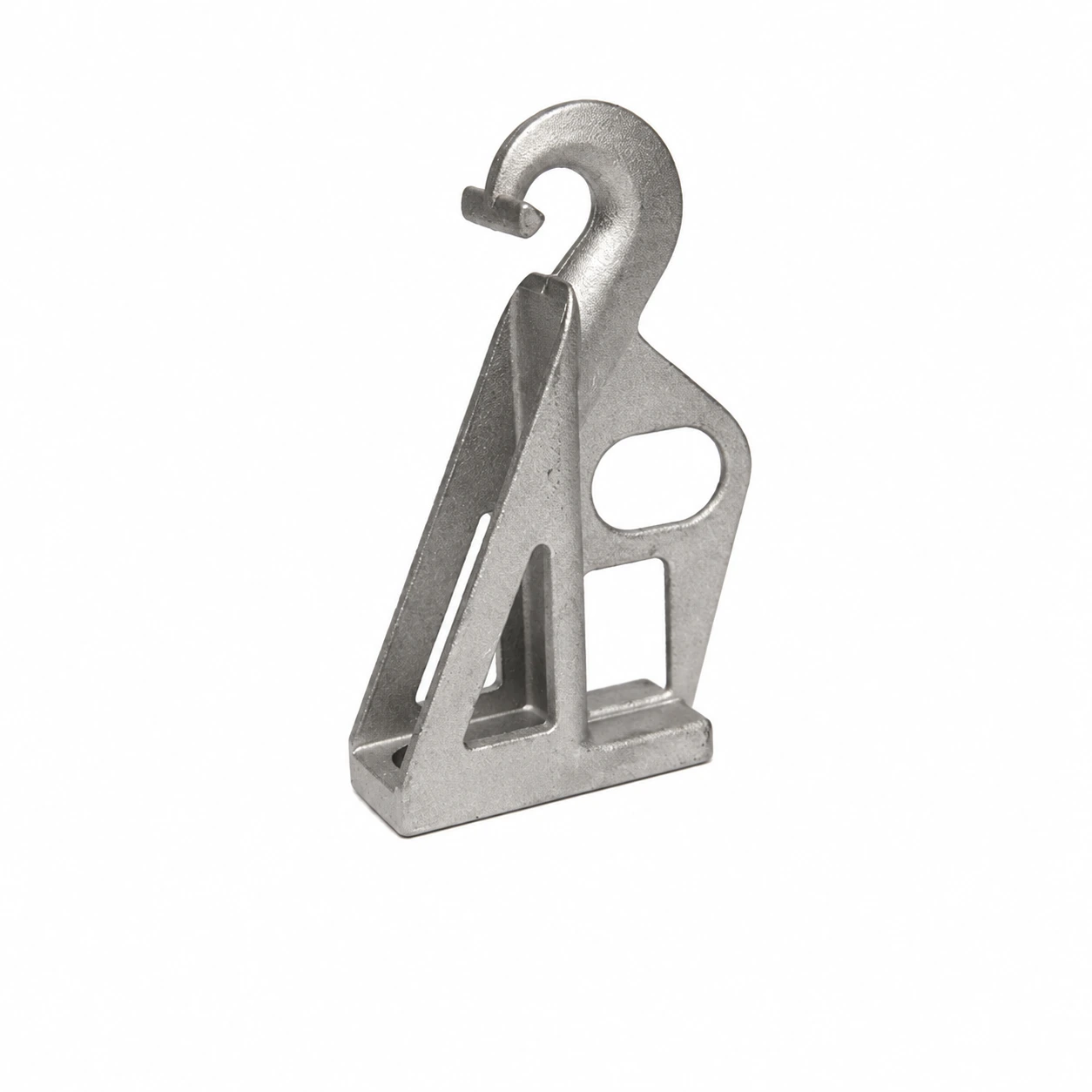

FTTH Tension and Suspension Pole Bracket PS-1400
The PS-1400 pole bracket carries ADSS anchoring clamps or preformed guy grips for tension and suspension duties in outdoor FTTH networks.
Features
- Simple installation and robust design
- Corrosion-resistant aluminium alloy body
- Compact and lightweight with high mechanical strength
- Accepts stainless steel straps or pole bolts
- Specified span range: 70–200 m; minimum breaking load: 8 kN
- Economical pole-mounted fitting
Application

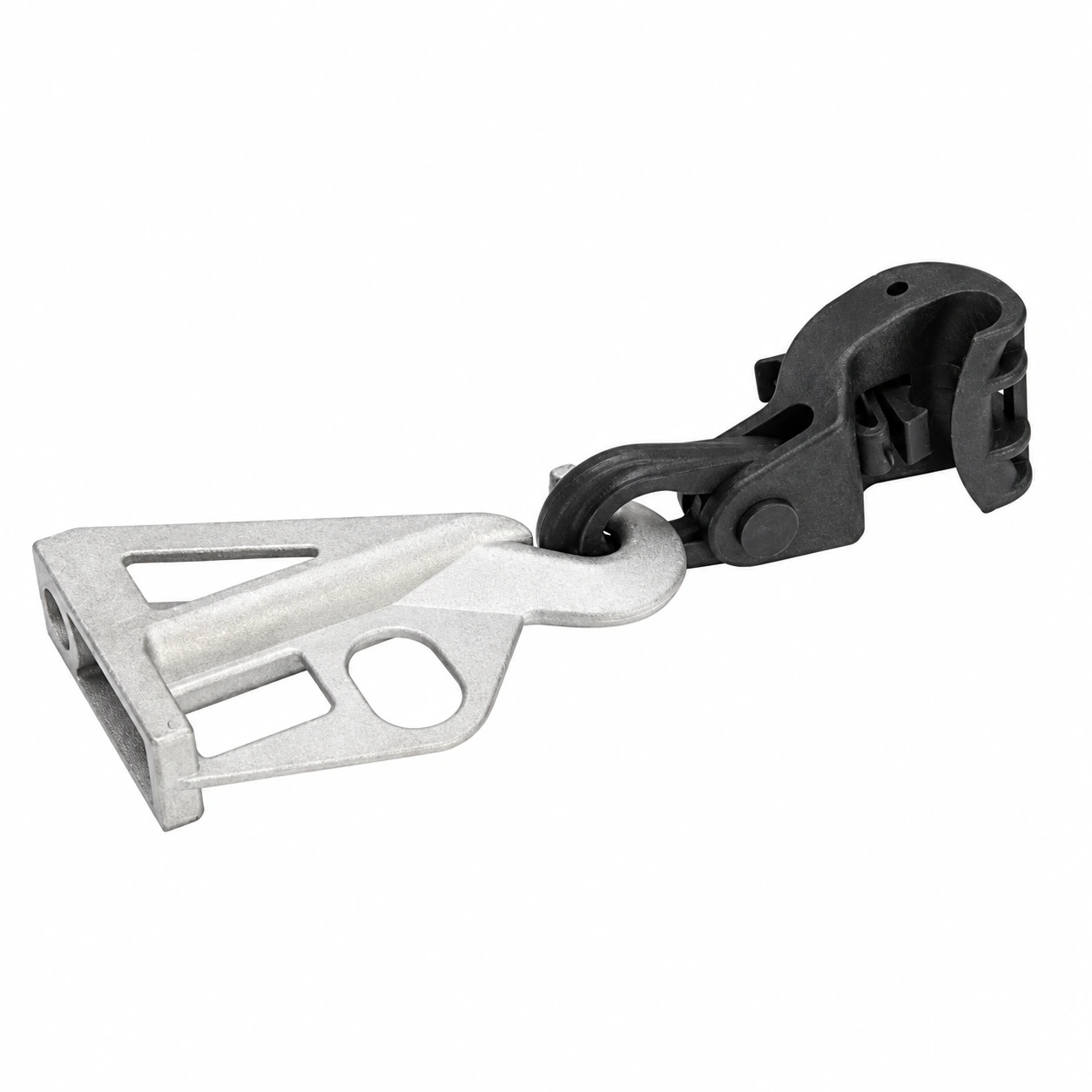

The compact bracket is manufactured from high-strength die-cast aluminium alloy. It supports compatible ADSS tension clamps or preformed dead-end grips on aerial FTTH lines. Mount it on wooden or concrete poles using a 14 or 16 mm pole bolt, or two stainless steel bands each 20 mm wide.
| Product code | MBL,KN | Material | Weight, KG |
| PS-1400 | 8 | Aluminum alloy | 0.18 |
Tensile-load and corrosion-resistance evaluations assess the fitting’s mechanical capacity and suitability for outdoor exposure. Confirm test conditions and results against the applicable product report.
