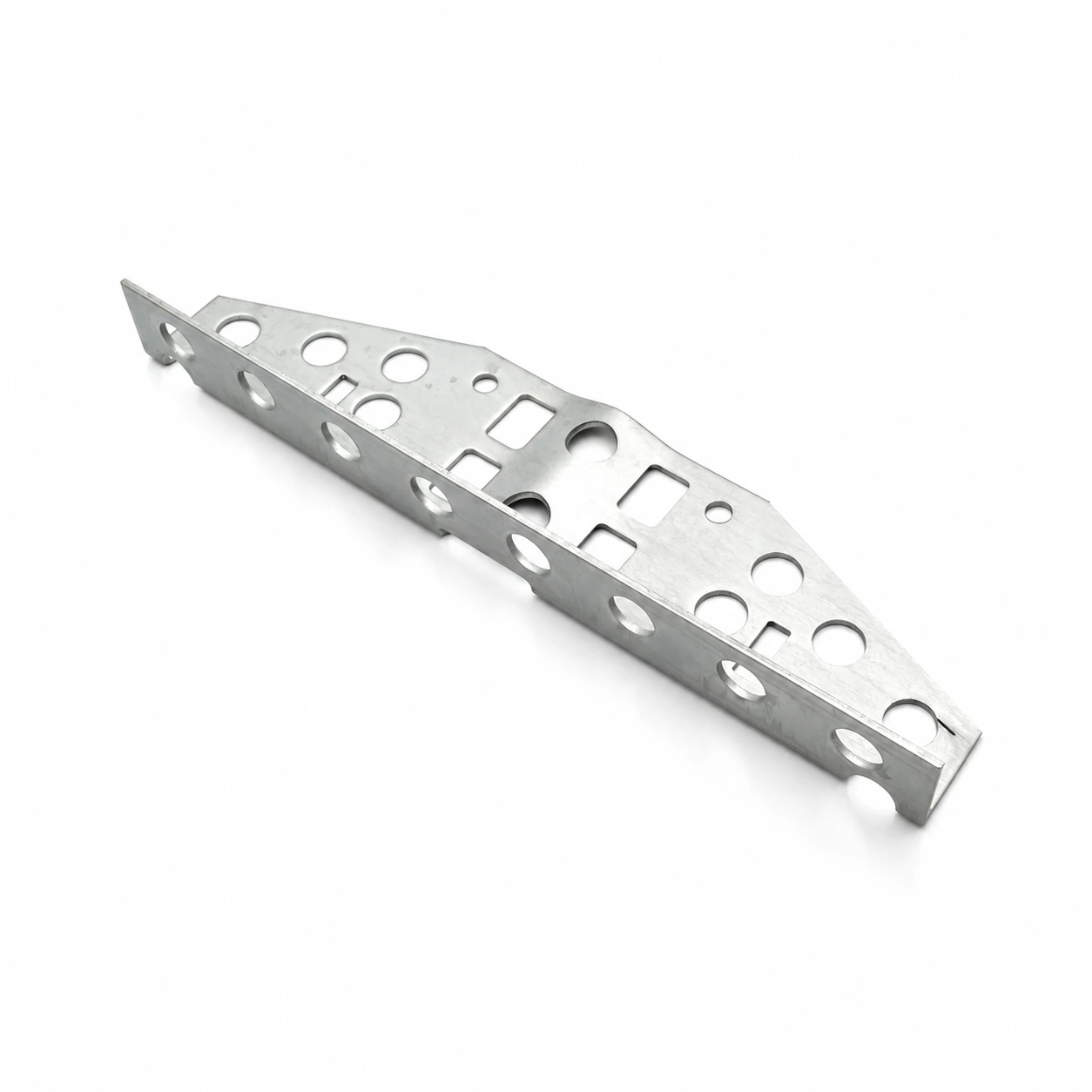

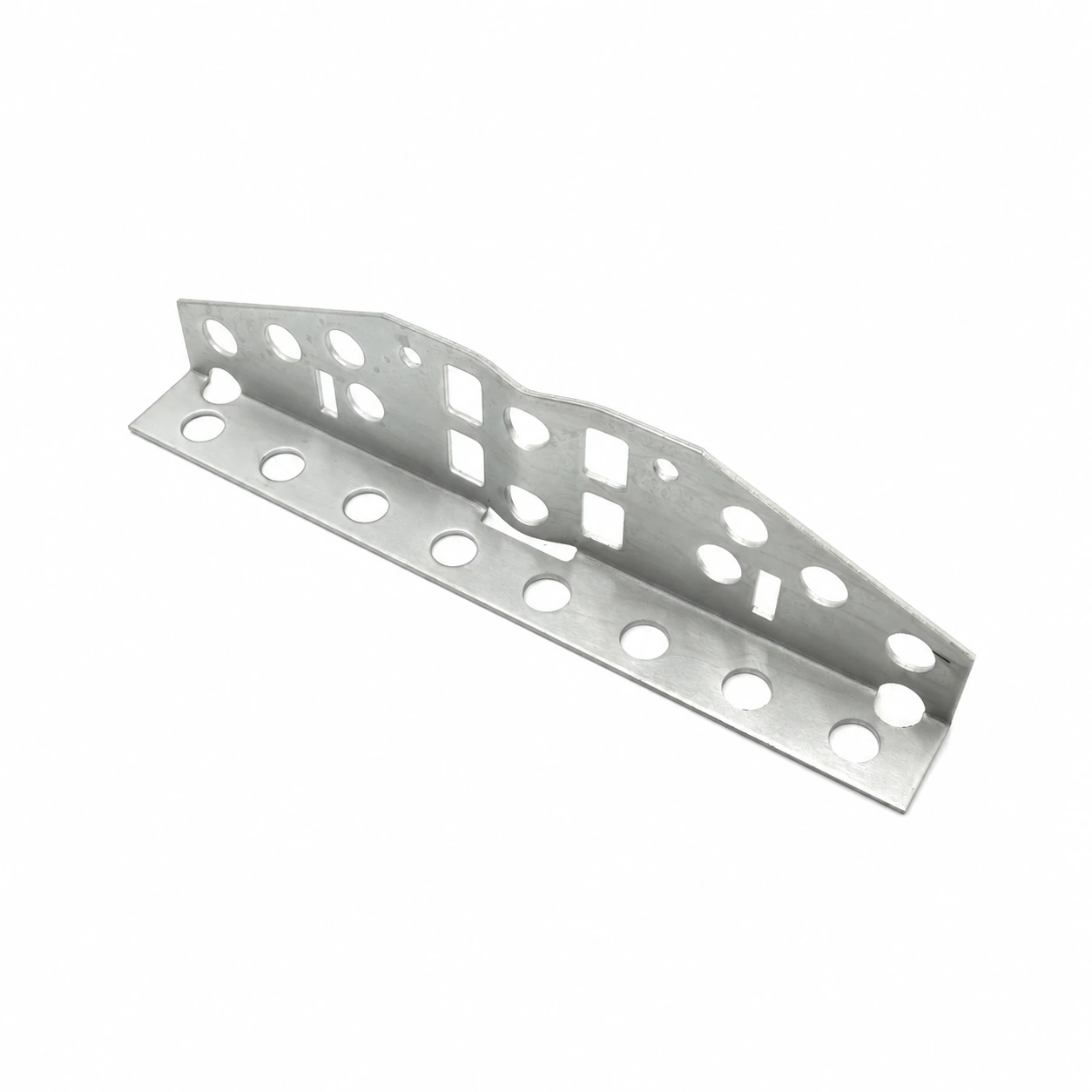

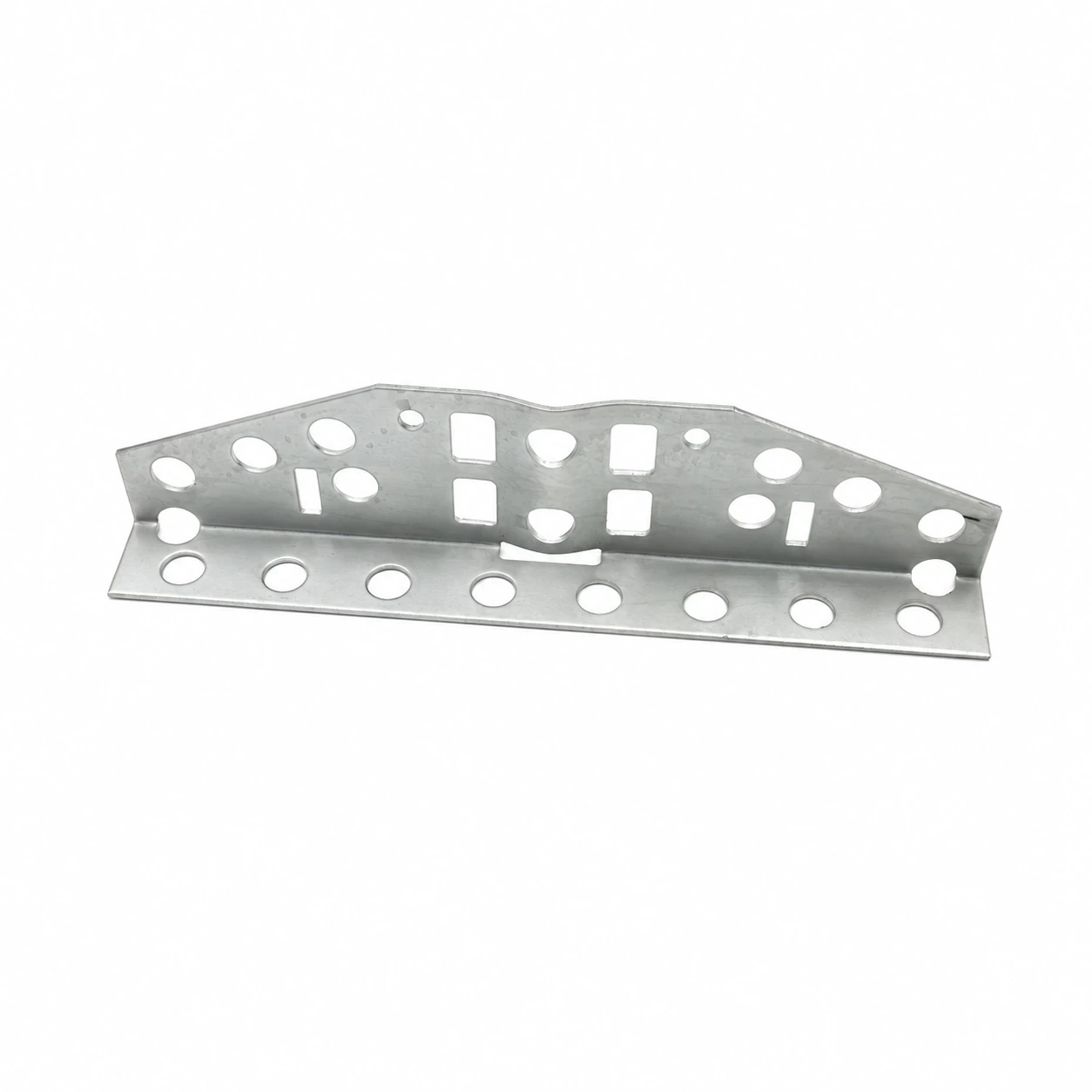

Multi-Line Pole Crossarm Bracket YKP-31
The YKP-31 multipurpose overhead bracket, also known as a CT8 crossarm, carries clamps or dead-end grips for securing aerial optical cables.
Features
- Fits wooden and concrete poles
- Supports both anchoring and suspension fittings
- Capacity for eight strain connections and suspension of four lines
- Galvanised steel construction with corrosion resistance
- Multiple mounting configurations for cable fittings
- Accepts stainless steel straps or pole bolts
- Specified span range: 30–100 m; minimum breaking load: 15 kN
Application
The crossarm consolidates multiple optical cable connections on a single pole for main-loop transit routes and last-mile FTTH installation. Capacity for additional cable lines can reduce the need to fit separate brackets when the network expands. The high-strength steel body is formed by cold stamping. Attach it to the pole with stainless steel straps and buckles or compatible pole bolts. The surface-finish variants are retained in the technical table.
| Product code | MBL, kN | Surface treatment | Weight, kg |
| YKP-31 | 15 | Hot dip galvanized steel of electrogalvanized steel | 0,8 |
Mechanical and environmental evaluation should follow the applicable product specification and installation requirements. Product-specific test reports should be checked before use.
