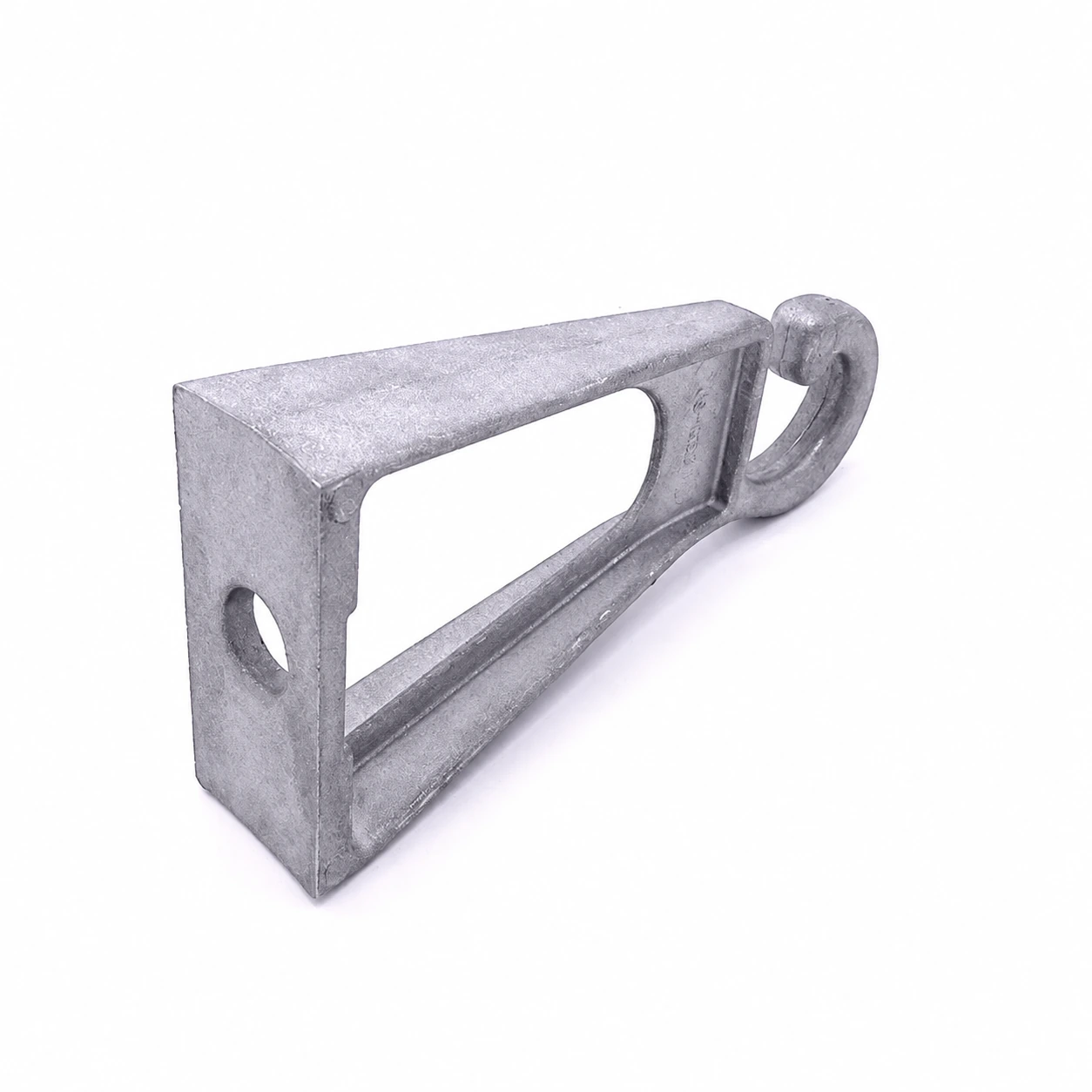

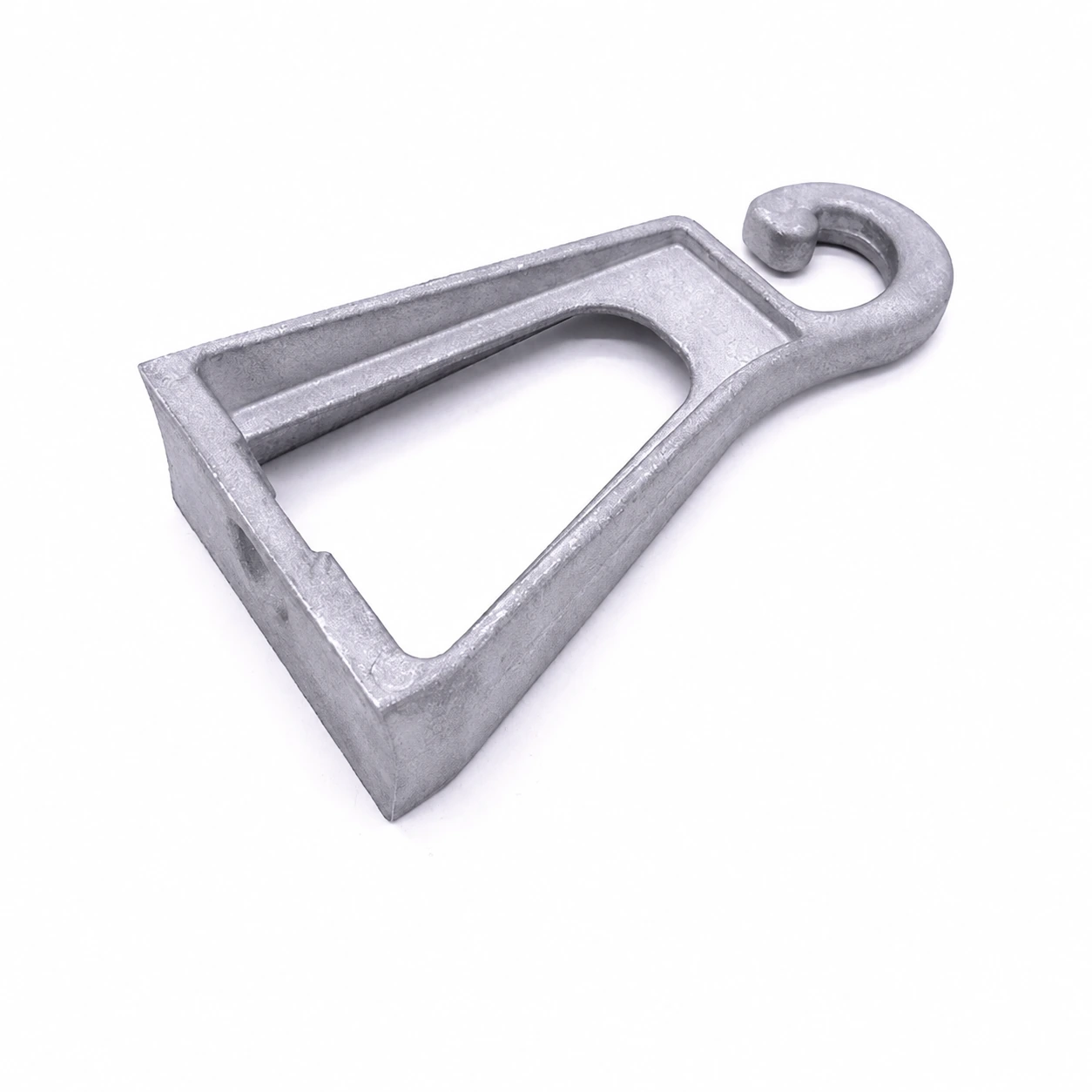

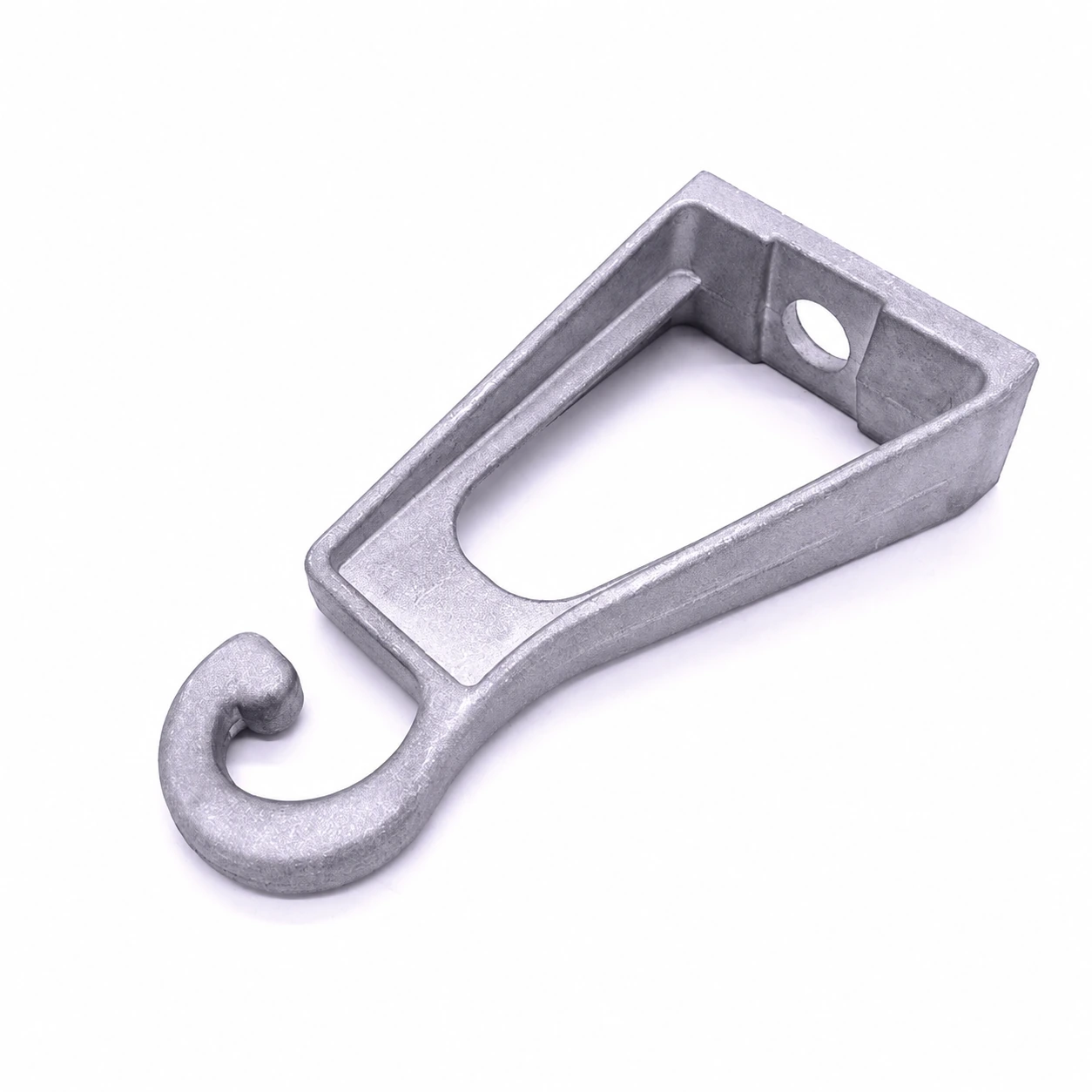

Overhead Cable Suspension Bracket JS-1400
The JS-1400 overhead bracket suspends ADSS optical cable clamps or preformed dead-end grips in outdoor telecommunications and power-line construction.
Features
- Compact, practical design with one attachment point
- Mounting by stainless steel banding or a pole bolt
- Low weight combined with high mechanical strength
- Stable outdoor performance
- Cost-effective suspension hardware
Application
Use the single-point bracket to support compatible ADSS suspension fittings or preformed dead-end grips on overhead telecommunications or electrical lines. It can be secured using a pole bolt or stainless steel banding. The specified minimum breaking load is 4 kN. Carton packing is standard; pallet packing is also available.
| Product code | MBL, kN |
| JS-1400 | 4 |
Relevant evaluations include tensile loading, ageing, corrosion resistance, and temperature/humidity cycling between −40 °C and +70 °C. These checks assess mechanical integrity and resistance to outdoor exposure. Product-specific reports should be reviewed for the applicable conditions and acceptance criteria.
