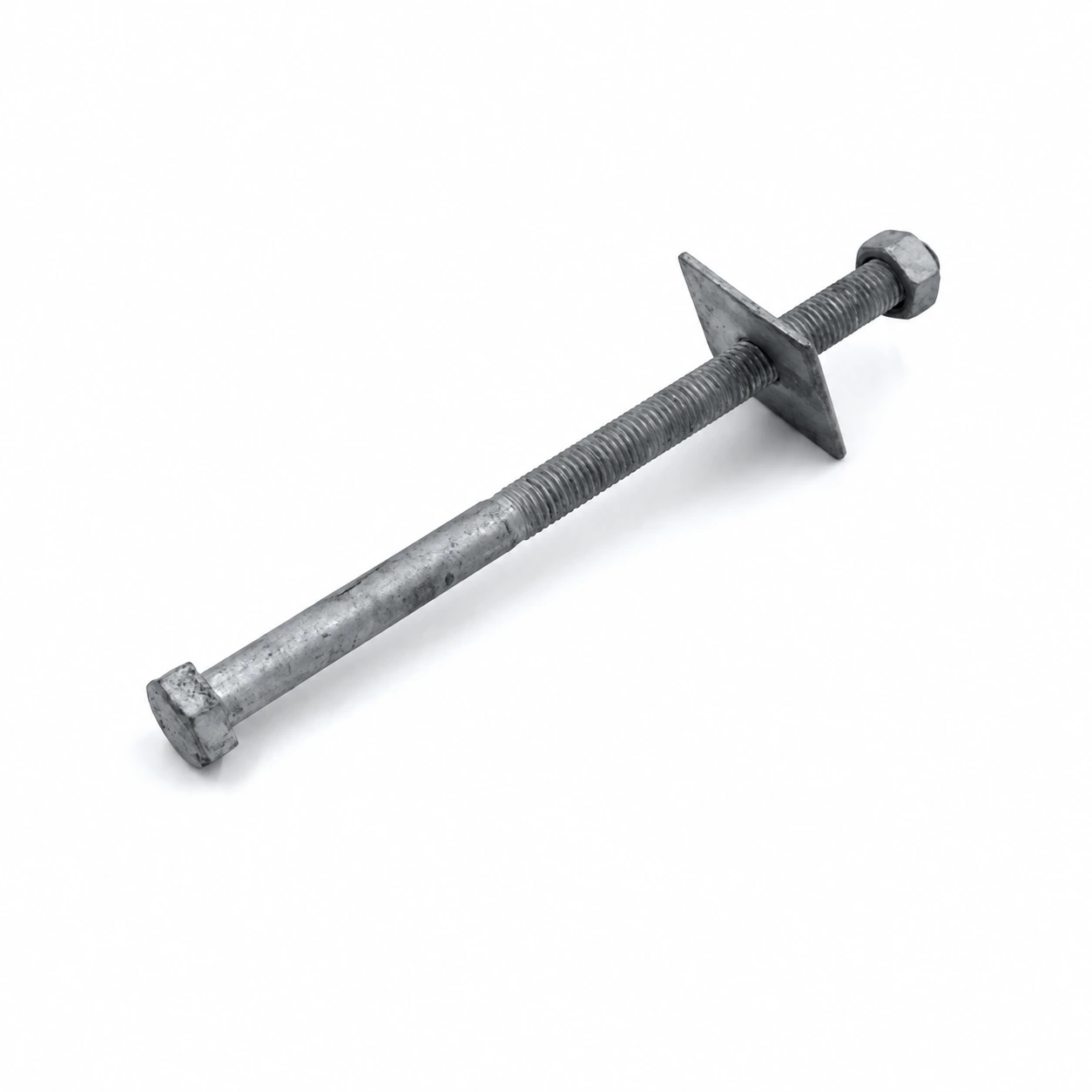

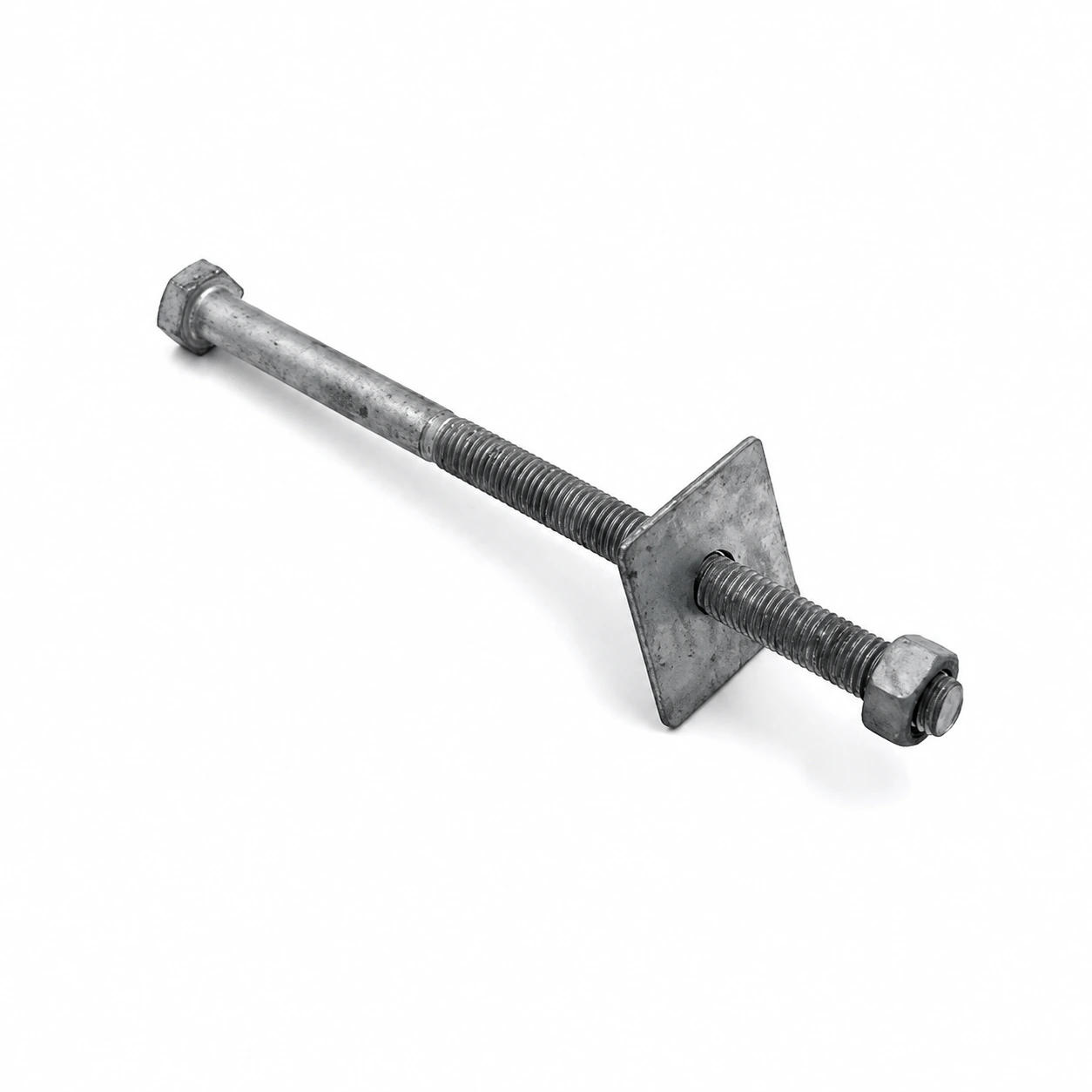

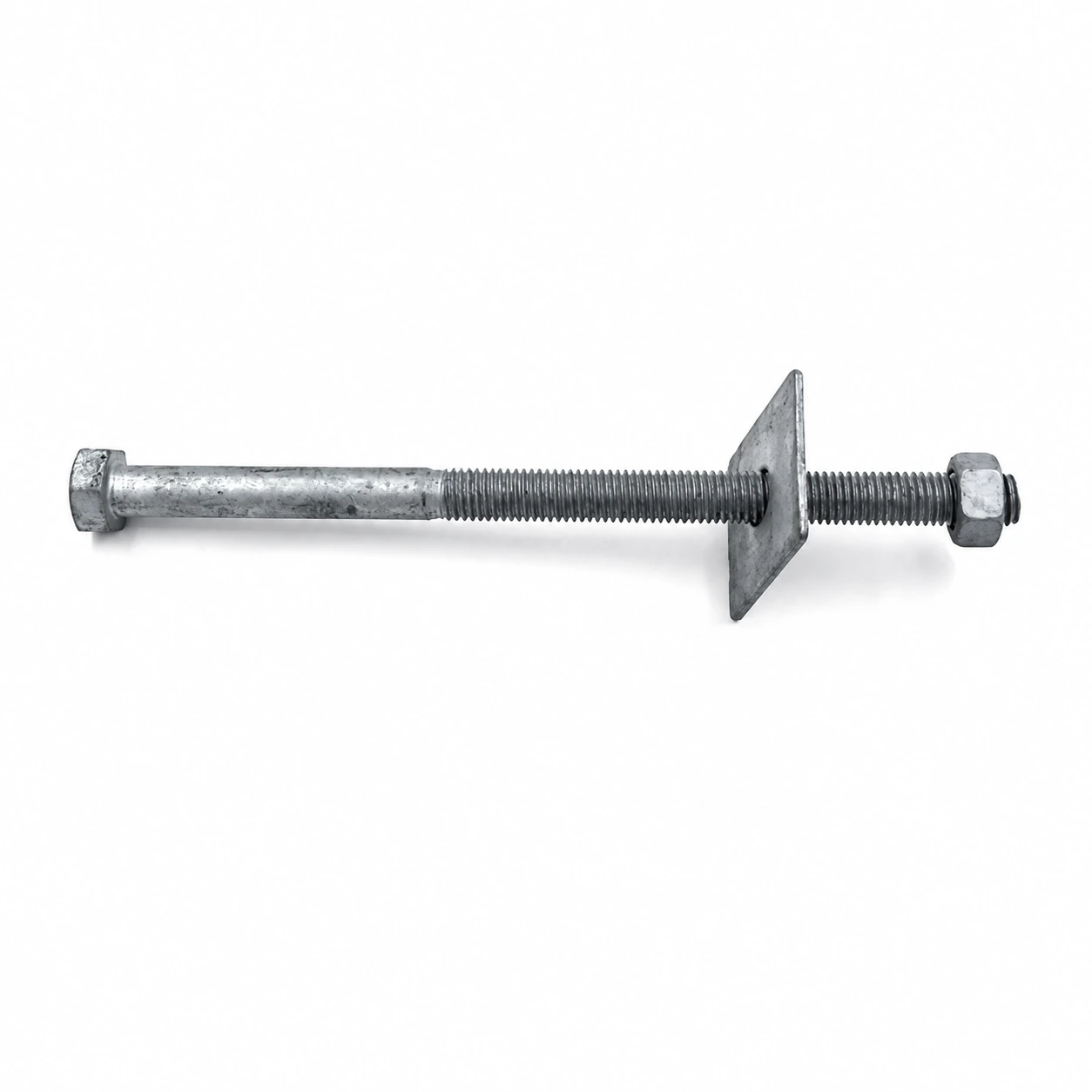

Overhead Line Mounting Bolt B-13-230-140
The B-13-230-140 overhead mounting bolt secures pole-line hardware, including telecommunications brackets, fibre cable clamps and electrical cable consoles with compatible clamps, in outdoor installations.
Features
- Suitable for concrete or wooden aerial-line poles
- Straightforward assembly and removal
- High mechanical strength
- Protection against outdoor environmental exposure
- Specified span range: 70–100 m; minimum breaking load: 7 kN
- Economical pole-line fitting
Application
Use this bolt on wooden or concrete poles to fasten compatible cable clamps, brackets and consoles. Pole bolts and overhead brackets can be supplied as separate components or as an assembly. Retain the specified 14 mm diameter, 230 mm length, 140 mm thread length and 7 kN minimum breaking load when selecting the installation hardware.
| Product code | Materials | Nut | Diameter, mm | Length, mm | Thread length, mm | MBL,KN |
| B-13-230-140 | Hot dip galvanized steel | M21 | 14 | 230 | 140 | 7 |
Mechanical and environmental evaluation should follow the applicable product specification and installation requirements. Product-specific test reports should be checked before use.
