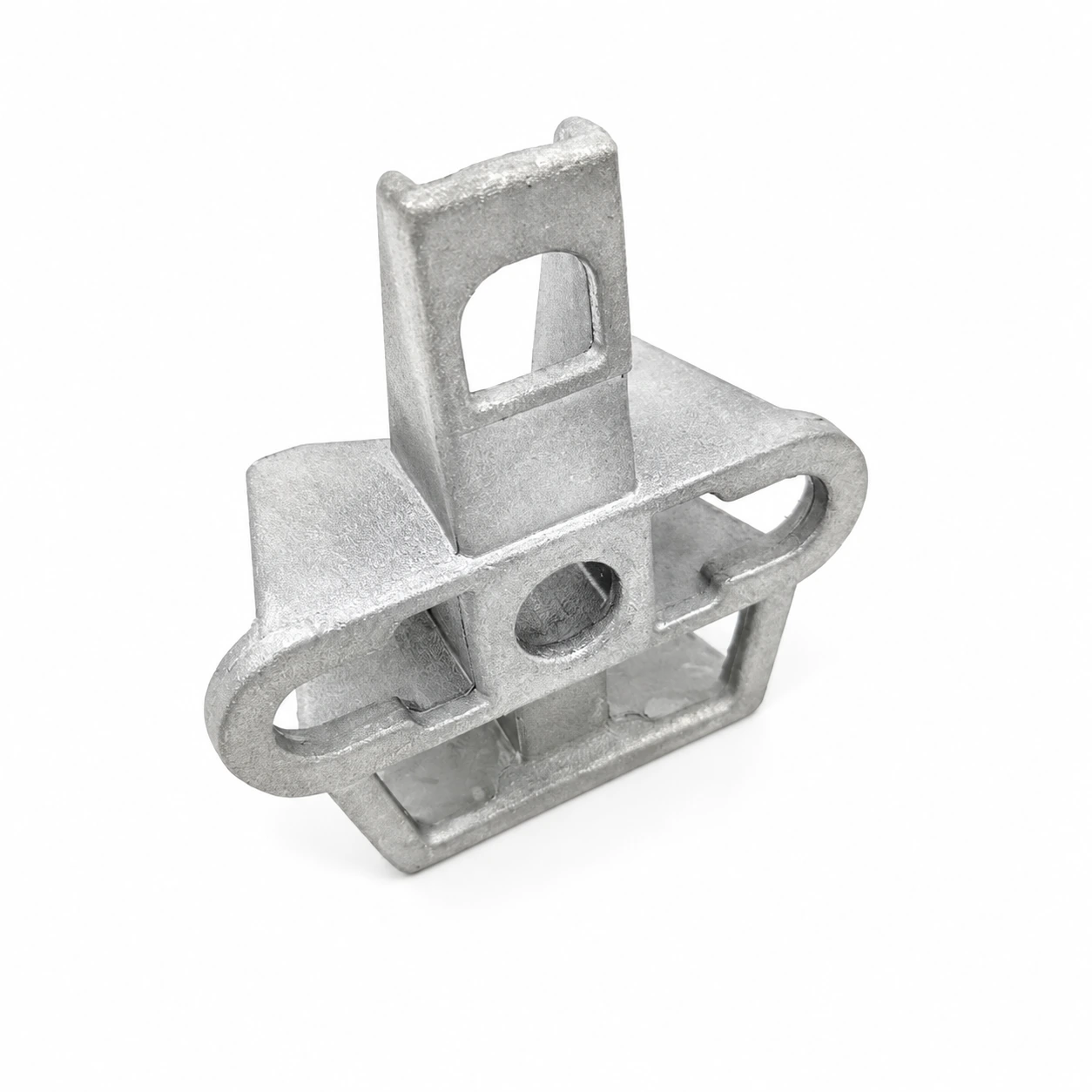

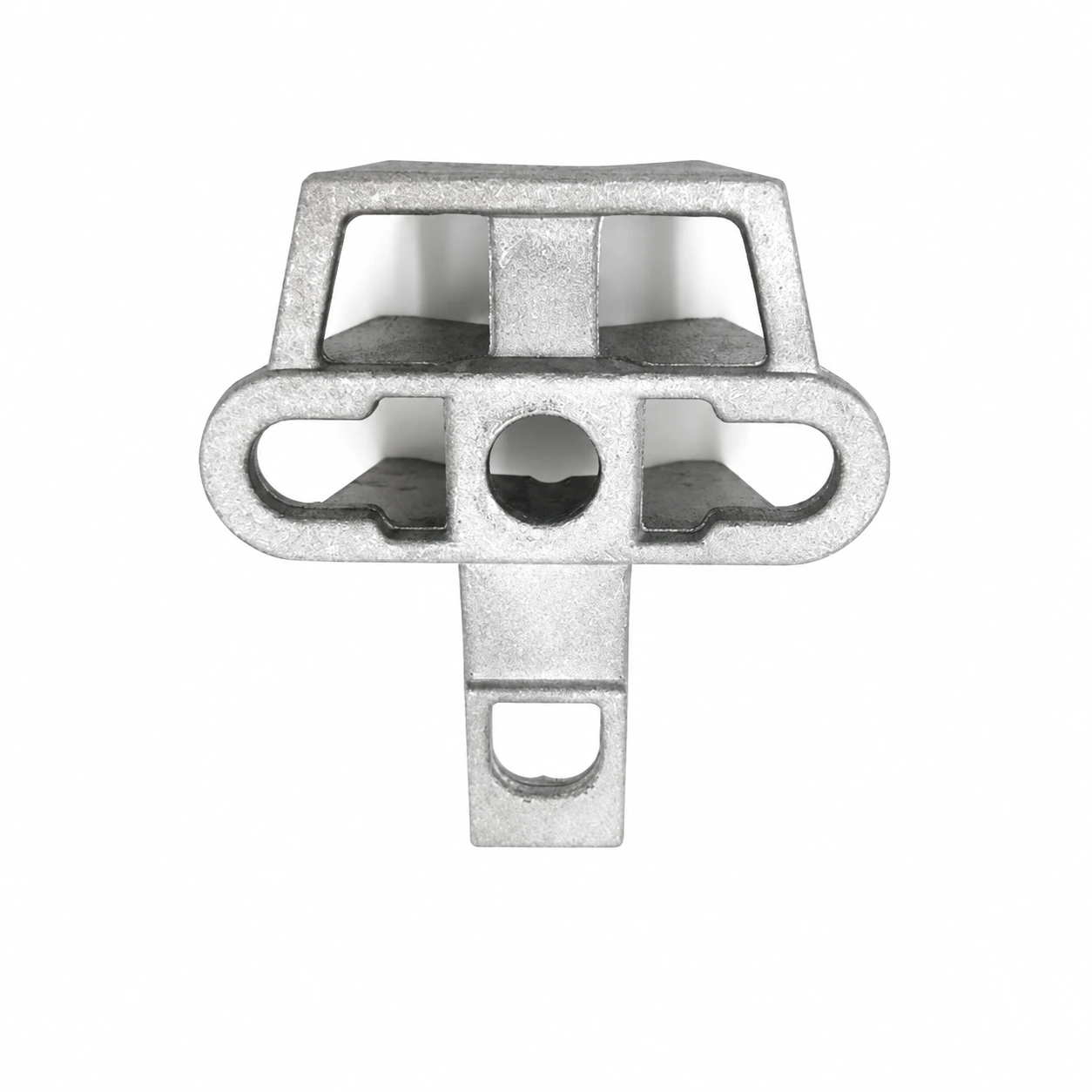

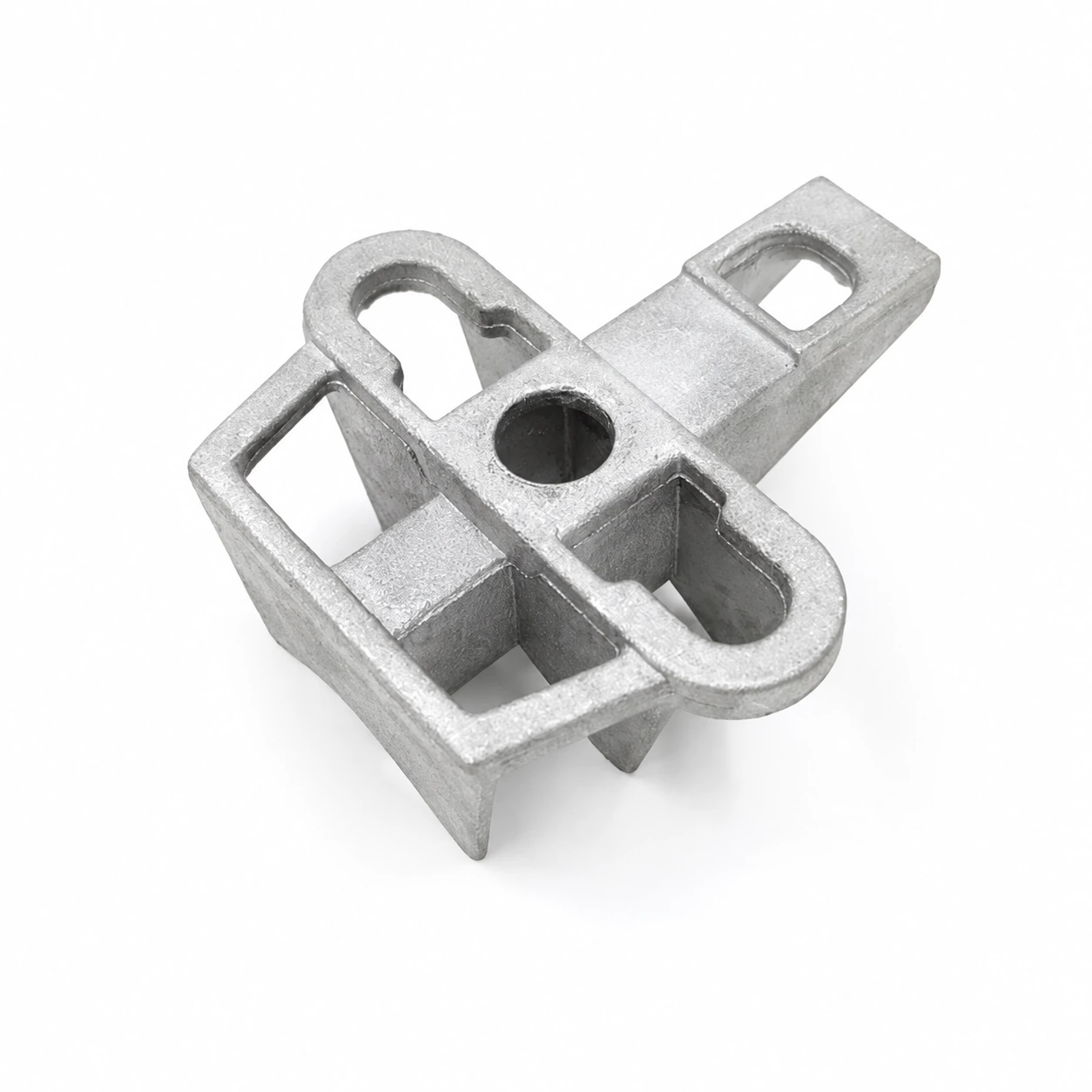

Universal ADSS Pole Bracket UPB
The UPB universal pole bracket supports both anchoring and suspension fittings for ADSS or figure-8 optical cables in outdoor telecommunications networks.
Features
- Three attachment positions
- Lightweight design for convenient installation
- Mounts with stainless steel banding or a pole bolt and nut
- High mechanical strength

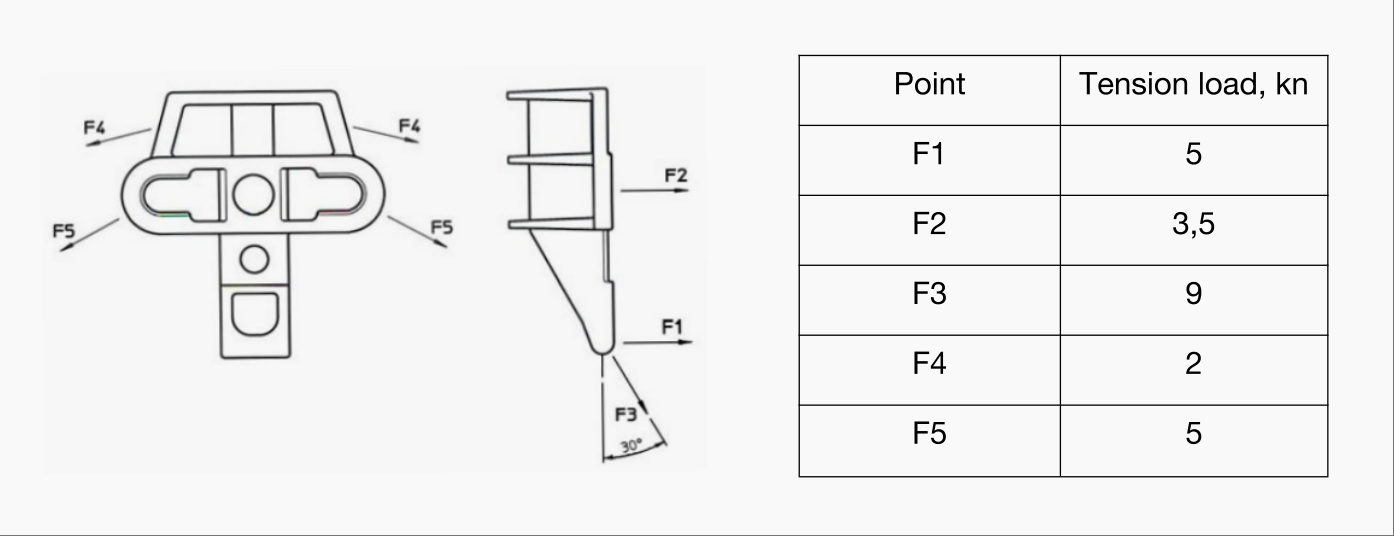

- Specified span range: 70–200 m; minimum breaking load: 9 kN
- Economical universal mounting fitting
Application
The high-strength aluminium body is manufactured by die casting. Its low weight and mechanical capacity suit overhead pole installations subject to the specified loads. The bracket accepts compatible ADSS anchoring clamps, ADSS suspension clamps and other appropriate optical cable fittings. Fasten it with a pole bolt and nut or stainless steel banding. Carton packing is used, with pallet packing available.
| Product code | MBL, kN | Weight. kg |
| UPB Bracket | 9 | 0.200 |
Mechanical and environmental evaluation should follow the applicable product specification and installation requirements. Product-specific test reports should be checked before use.
